D-Link COVR-2202 User Manual

22D-Link COVR-2202 User Manual
Section 3 - Conguration

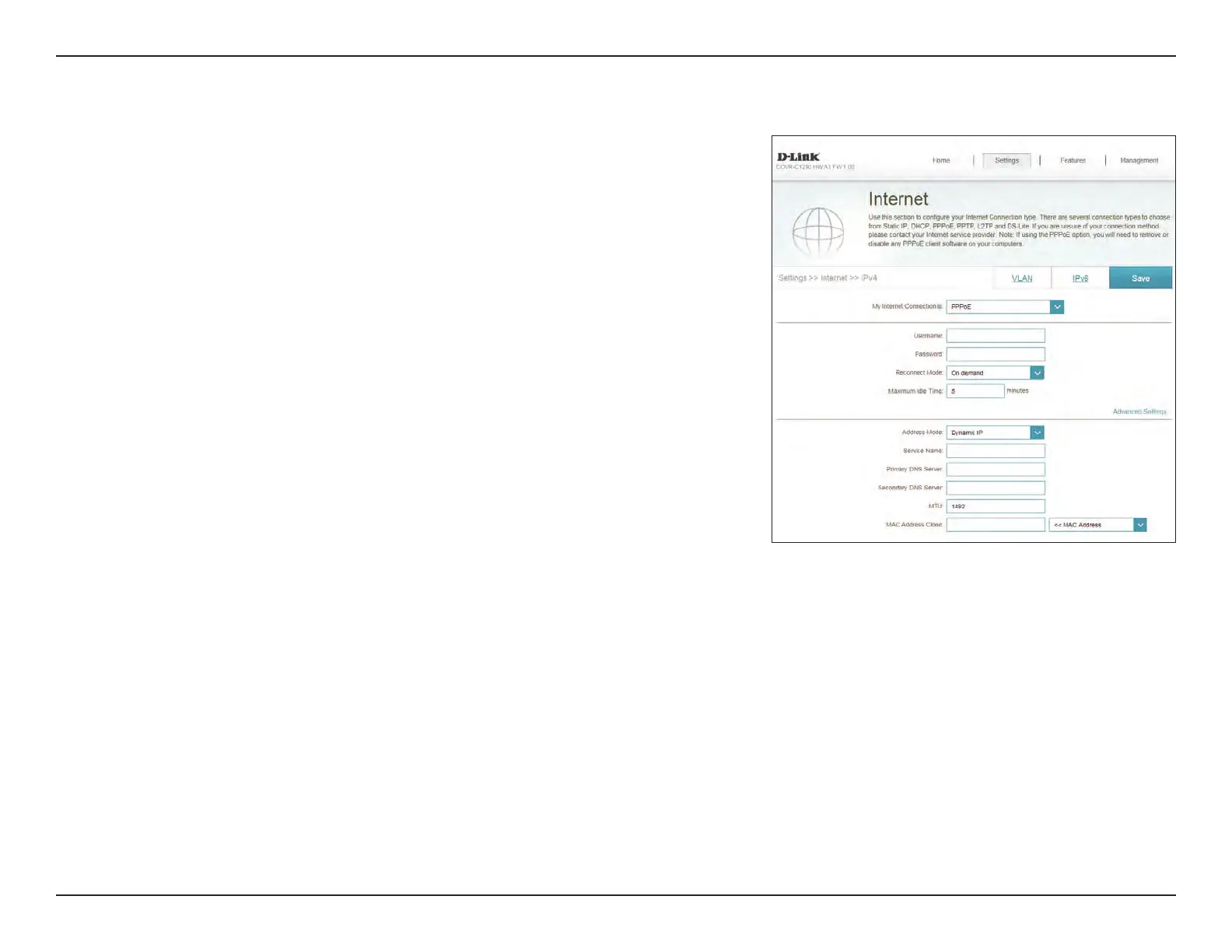

PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On Demand, or .
Maximum Idle
Time:
Enter a maximum idle time (in minutes) during which the Internet
connection is maintained during inactivity. To disable this feature,
select Always on as the reconnect mode.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
If you selected Dynamic IP as the Address Mode:
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.

D-Link COVR-2202 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Internal	No
Placement	Table
Certification	FCC, IDA, IC, CB, CE, LVD, RCM, RoHS
Product color	Gold, White
Number of products included	2 pc(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Security algorithms	WPA, WPA2, WPS
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Antennas quantity	6
Package depth	367 mm
Package width	260 mm
Package height	108 mm
Package weight	2396 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1299 mm
Pallet height (sea)	1881 mm
Pallet gross weight (air)	272600 g
Pallet gross weight (sea)	397400 g
Quantity per pallet (air)	96 pc(s)
Quantity per pallet (sea)	144 pc(s)
Shipping (inner) case width	384 mm
Shipping (inner) case height	291 mm
Shipping (inner) case length	458 mm
Shipping (inner) case weight	10400 g
Shipping (inner) case net weight	9584 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Depth	90 mm
Width	100 mm
Height	200 mm
Weight	690 g
