D-Link COVR-2202 User Manual

28D-Link COVR-2202 User Manual
Section 3 - Conguration
DS-Lite

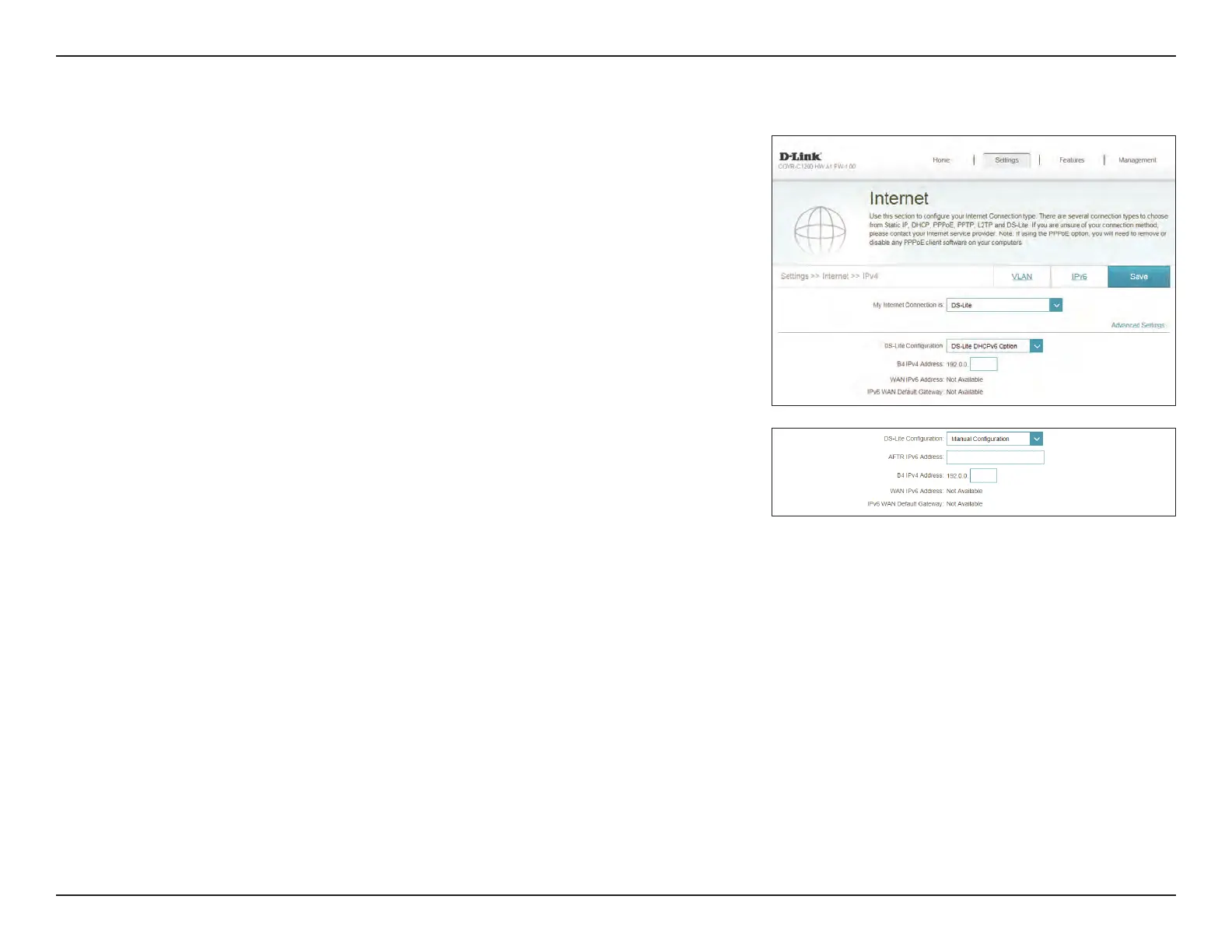

DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following
parameters will be available for conguration:
Advanced Settings
DS-Lite
Conguration:
Select DS-Lite DHCPv6 Option to let Covr Point A allocate the AFTR
IPv6 address automatically. Select  to enter
the AFTR IPv6 address manually.
If you selected DS-Lite DHCPv6 Option as the DS-Lite Conguration:
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway:
Once connected, the IPv6 WAN default gateway address will be
displayed here.
If you selected Manual Conguration as the DS-Lite Conguration:
AFTR IPv6
Address:
Enter the AFTR IPv6 address used here.
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway:
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Click Save when you are done.

D-Link COVR-2202 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Internal	No
Placement	Table
Certification	FCC, IDA, IC, CB, CE, LVD, RCM, RoHS
Product color	Gold, White
Number of products included	2 pc(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Security algorithms	WPA, WPA2, WPS
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Antennas quantity	6
Package depth	367 mm
Package width	260 mm
Package height	108 mm
Package weight	2396 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1299 mm
Pallet height (sea)	1881 mm
Pallet gross weight (air)	272600 g
Pallet gross weight (sea)	397400 g
Quantity per pallet (air)	96 pc(s)
Quantity per pallet (sea)	144 pc(s)
Shipping (inner) case width	384 mm
Shipping (inner) case height	291 mm
Shipping (inner) case length	458 mm
Shipping (inner) case weight	10400 g
Shipping (inner) case net weight	9584 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Depth	90 mm
Width	100 mm
Height	200 mm
Weight	690 g
