D-Link Covr User Manual

39D-Link COVR-1102 User Manual
Section 3 - Conguration
Wireless
Wi-Fi
Wireless
Wi-Fi Name (SSID): Enter a name for your COVR Wi-Fi network.
Password: Create a password for your COVR Wi-Fi network. Wireless clients will
need to enter this password to successfully connect to the network.
DFS Channel: Dynamic Frequency Selection (DFS) is a Wi-Fi function that enables
WLANs to use 5 GHz frequencies reserved for radars. Enable to allow
the router to monitor the radar signals frequency. If radar signals are
detected on the current channel that the device is on, then the device
will vacate the channel and switch to an alternate channel.
Channel Width: Select Auto 20/40/80 MHz if you are using 802.11ac, 802.11n, and
802.11a devices. Select Auto 20/40 MHz if you are using both 802.11n
and non- 802.11n devices, or 80 MHz/40 MHz/20 MHz if you are not
using any 802.11n devices.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedule section. Refer to
Schedule on page 55 for more information.
Click Save when you are done.

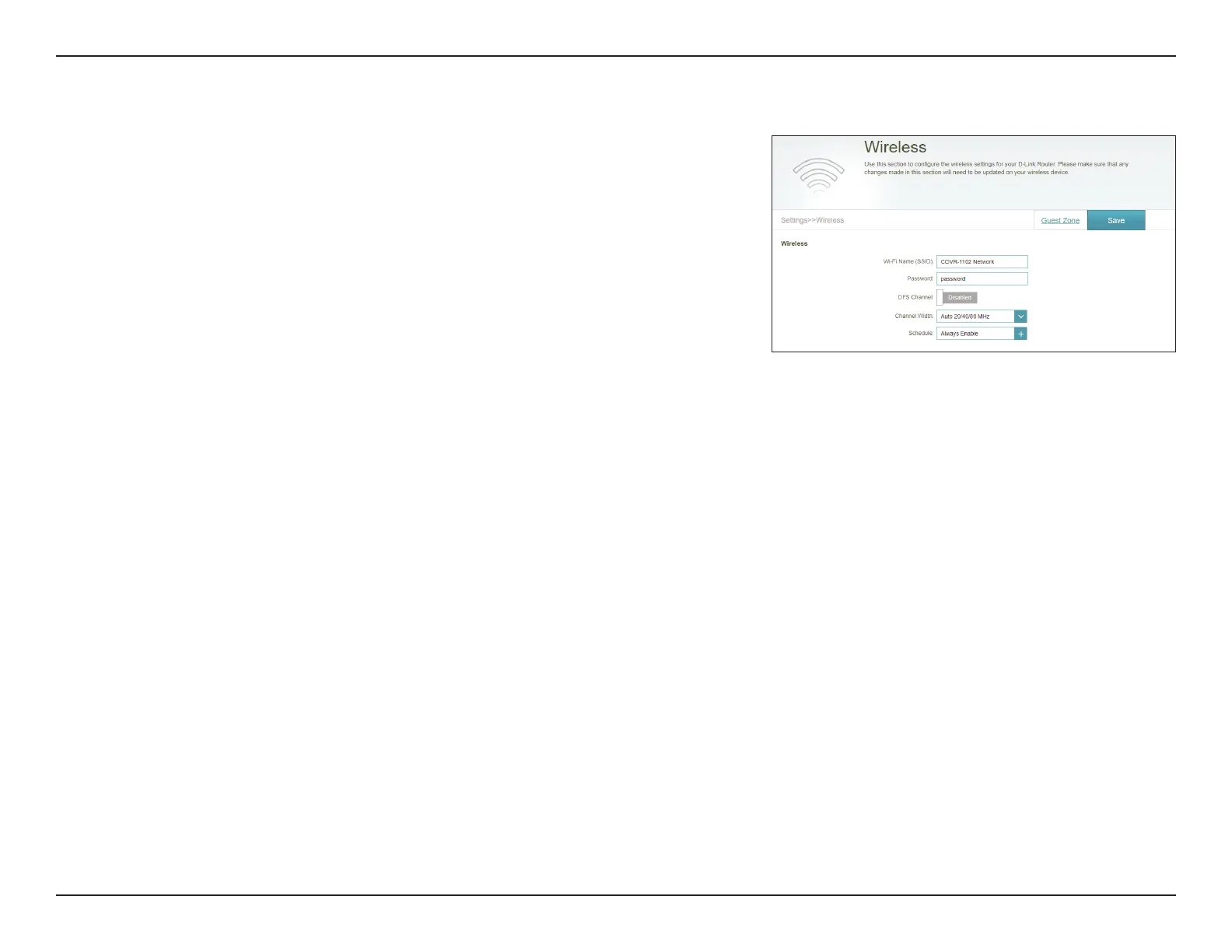

From this page you can congure your COVR Wi-Fi settings.

D-Link Covr Specifications

General

Internal	No
Placement	Floor, Table
Certification	FCC, CE, IC, RCM, IDA, CB, RoHS, UL, ErP
Product color	Bronze, White
LED indicators	Status
WPS push button	Yes
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Antenna features	Integrated antenna
Antennas quantity	3
Security algorithms	128-bit AES, WPA, WPA2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of products included	2 pc(s)
Package depth	274 mm
Package width	208 mm
Package height	118 mm
Package weight	1270 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1335 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	237200 g
Pallet gross weight (sea)	370500 g
Quantity per pallet (air)	160 pc(s)
Quantity per pallet (sea)	256 pc(s)
Shipping (inner) case width	495 mm
Shipping (inner) case height	240 mm
Shipping (inner) case length	575 mm
Shipping (inner) case weight	11110 g
Shipping (inner) case net weight	10160 g
Number of cartons per pallet (air)	20 pc(s)
Number of cartons per pallet (sea)	32 pc(s)
Quantity per shipping (inner) case	8 pc(s)

Weight and Dimensions

Depth	109 mm
Width	117 mm
Height	51 mm
Weight	250 g
