D-Link DAP-1820 User Manual

DAP-1820 Install Guide 9

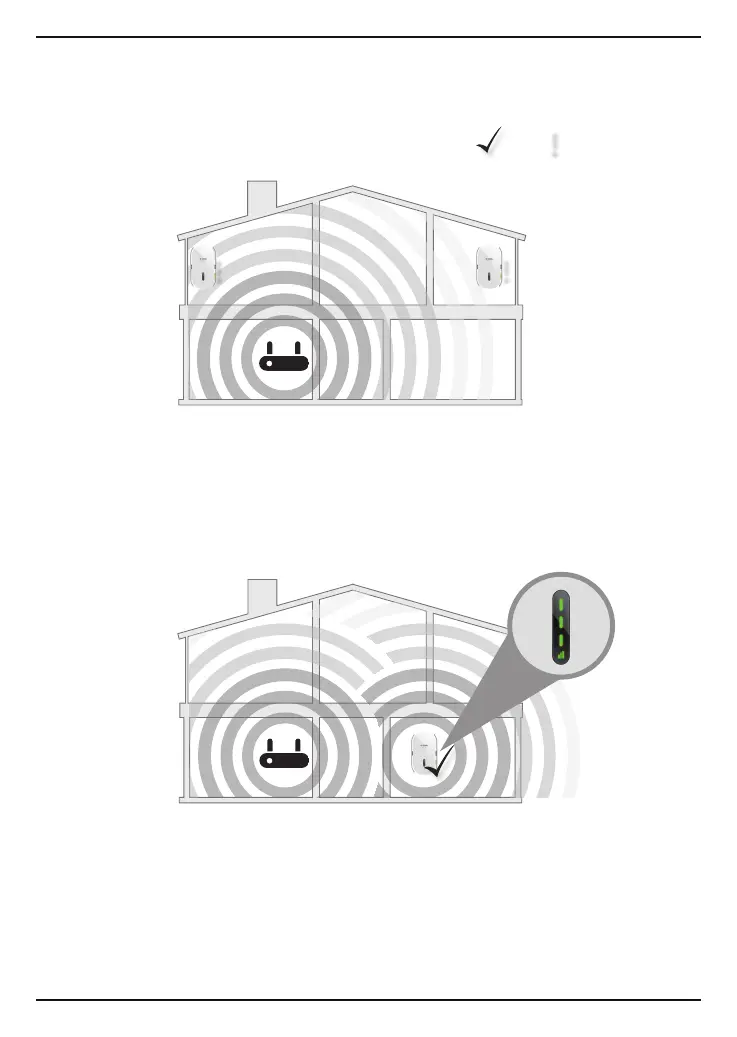

Where should I place my Range Extender for best performance?
A Range Extender only works as well as the signal it is extending.
Therefore, proper placement of your Range Extender is important
in achieving desired results.
For best performance, place your Range Extender in between
your router and your dead zone, making sure it is placed in a
location where the Wi-Fi signal is still strong. Use the Smart Signal
Indicator to help nd a location with a strong signal. The more
bars lit on the signal indicator, the stronger the Wi-Fi signal is.
Poor
location
Ideal
location
!
!!
Poor
location
Ideal
location
!
!!

D-Link DAP-1820 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
Certification	FCC, UL, IC, CB, CE
Product color	White
Antenna type	External
Antennas quantity	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	85.4 mm
Width	140 mm
Height	48.6 mm
Weight	274 g
