D-Link DCS-2210/DCS-2230 Quick Install Guide
3

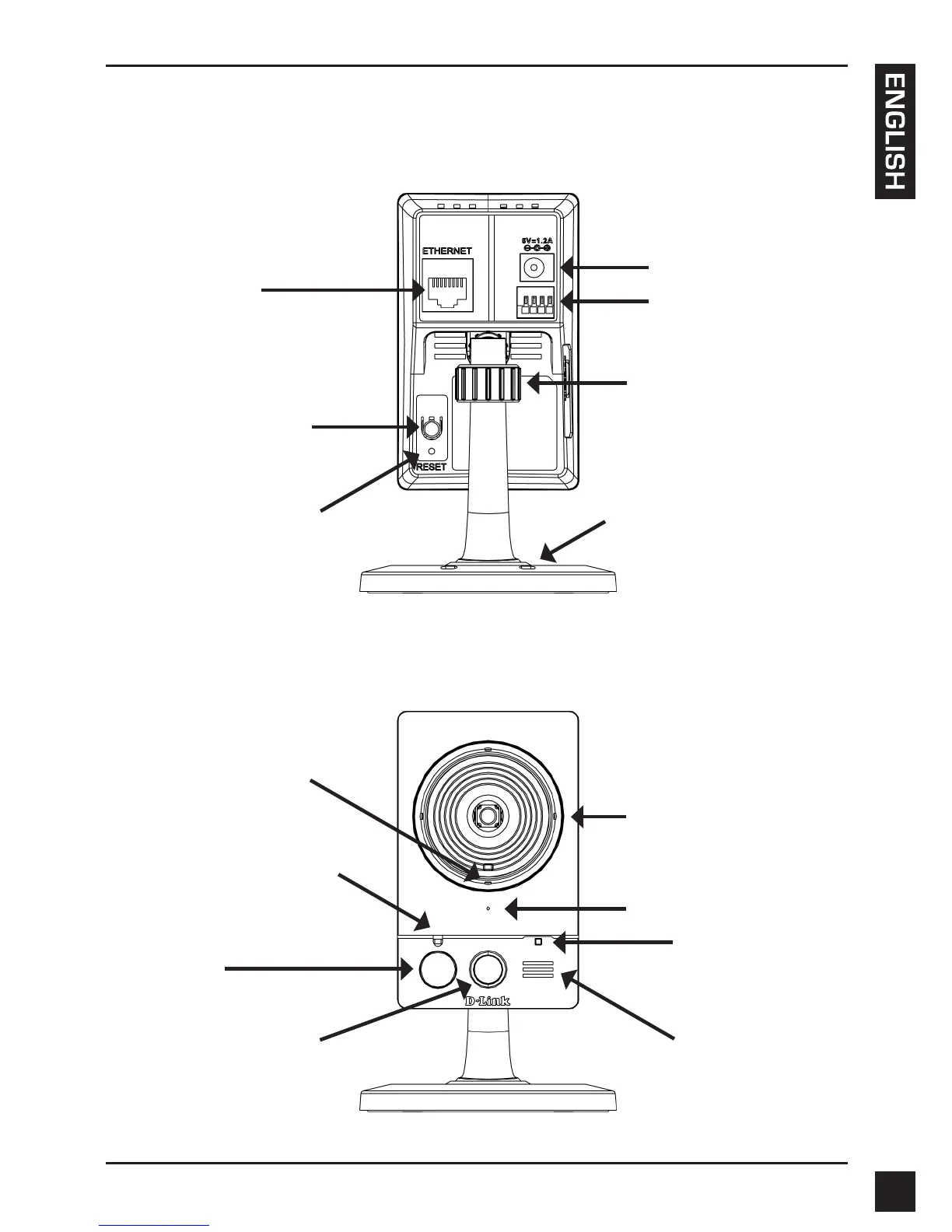

2. Hardware Overview
Rear Panel
Front Panel
Status LED
Indicates the camera's
current status
PIR
Passive Infrared
sensor for motion
detect
ICR Sensor
The IR-Cut Removable sensor
monitors lighting conditions and
switches between color and infrared
accordingly
Infrared LED
Used to illuminate the camera's eld
of view at night
Microphone
Records audio from the
surrounding area
WPS LED
(DCS-2230 only)
WPS status indicator
LED
Speaker
Audio output
Camera Lens
Records video of the surrounding
area
Adjustment Ring
Tighten or loosen the
adjustment ring to adjust
the camera's position
Base Holes
Can be used with cable ties to
attach camera to a surface
Reset
Press and hold this button
for 10 seconds to reset the
camera
Ethernet
The RJ45 connector for
Ethernet (DCS-2210 supports
PoE which can also be used to
power the camera)
WPS button (DCS-2230 only)
Press this button, then press
the WPS button on your router
to set up a wireless connection
automatically
Power Connector
Connects to the included
DC 5V power adapter
I/O Connector
I/O connectors for
external devices
