D-Link DCS-2330L Quick Install Guide

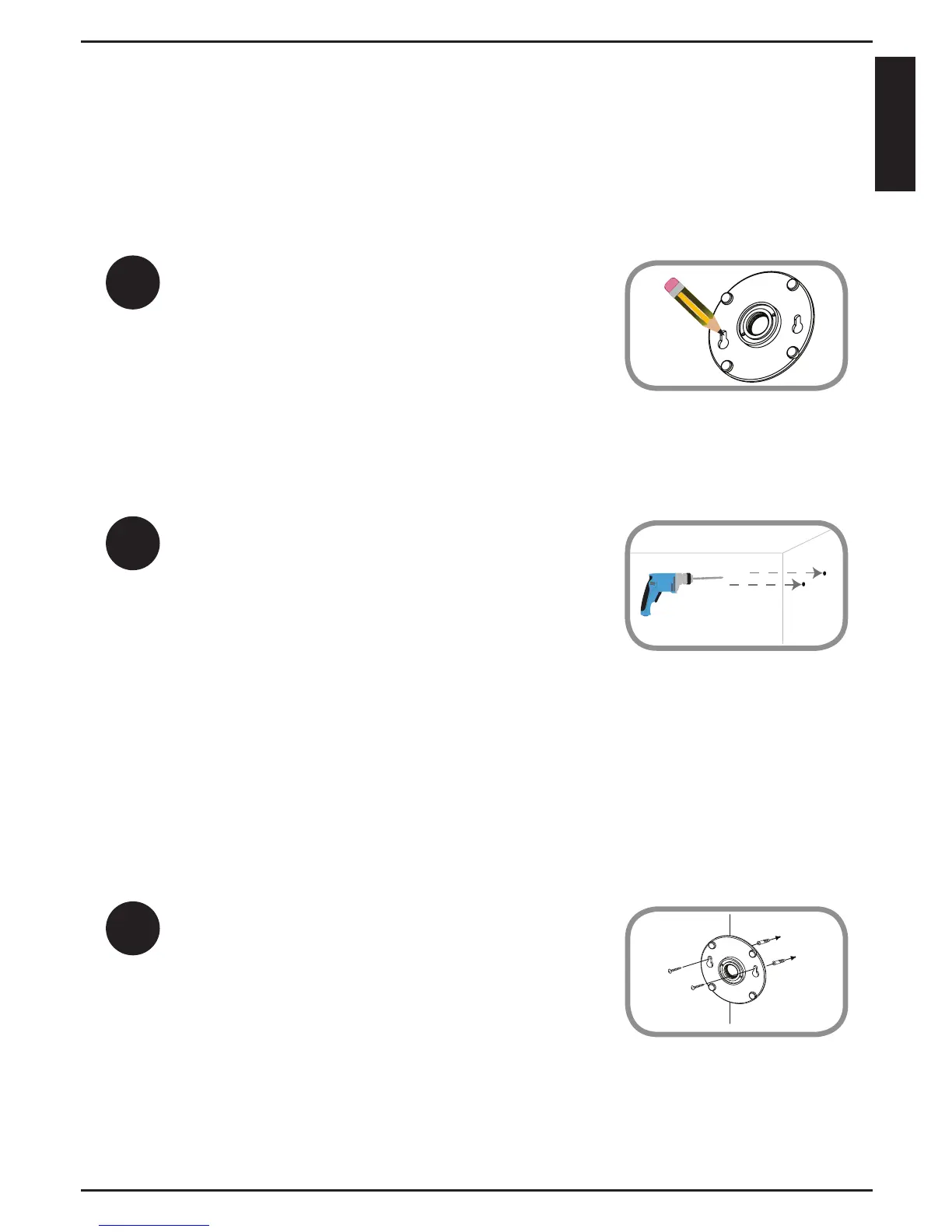

Mount the Camera
Refer to the steps below to assist you with mounting the
camera. We recommended that you congure the camera rst,
before mounting it.
1
2
3
Place the mounting plate where you
want to position the camera and
mark the holes where you will place
the screws.
When you place the mounting plate
over the holes that you drilled in the
wall, make sure you align the holes.
Use the supplied screws to attach
the mounting base to the surface of
the wall.
Depending on the material of the
wall or ceiling, use the proper tools
to drill two holes where you drew
the marks.
Note: If the wall is made out of concrete,
drill the holes first and insert the plastic
anchors to support the screws.
9
ENGLISH

D-Link DCS-2330L Specifications

General

Type	IP security camera
PTZ control	-
Certification	FCC, CE, CE LV D, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Box
Product color	Black, White
International Protection (IP) code	IP65
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 480 x 360, 1024 x 768 (XGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	3.45 mm
Built-in HDD	No
LED type	IR
Night vision distance	5 m
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP / HTTPS, PPPoE, UPnP, RTP / RTSP/ RTCP, QoS, CoS
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	-5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional

Weight and Dimensions

Depth	53.8 mm
Width	66 mm
Height	105 mm
Weight	134 g
