4
SECTION 2
Installation
Package Contents
Connections and Communication Mode
Transmission Distance
Package Contents
Open the shipping carton of the DFE-855 and carefully unpack its contents.
The carton should contain the following items:
• One DFE-855 Fast Ethernet Converter
• One DC Power Adapter
• This manual
If any item is found missing or damaged, please contact your local D-Link
reseller for replacement.
Connections and Transmission
Distance

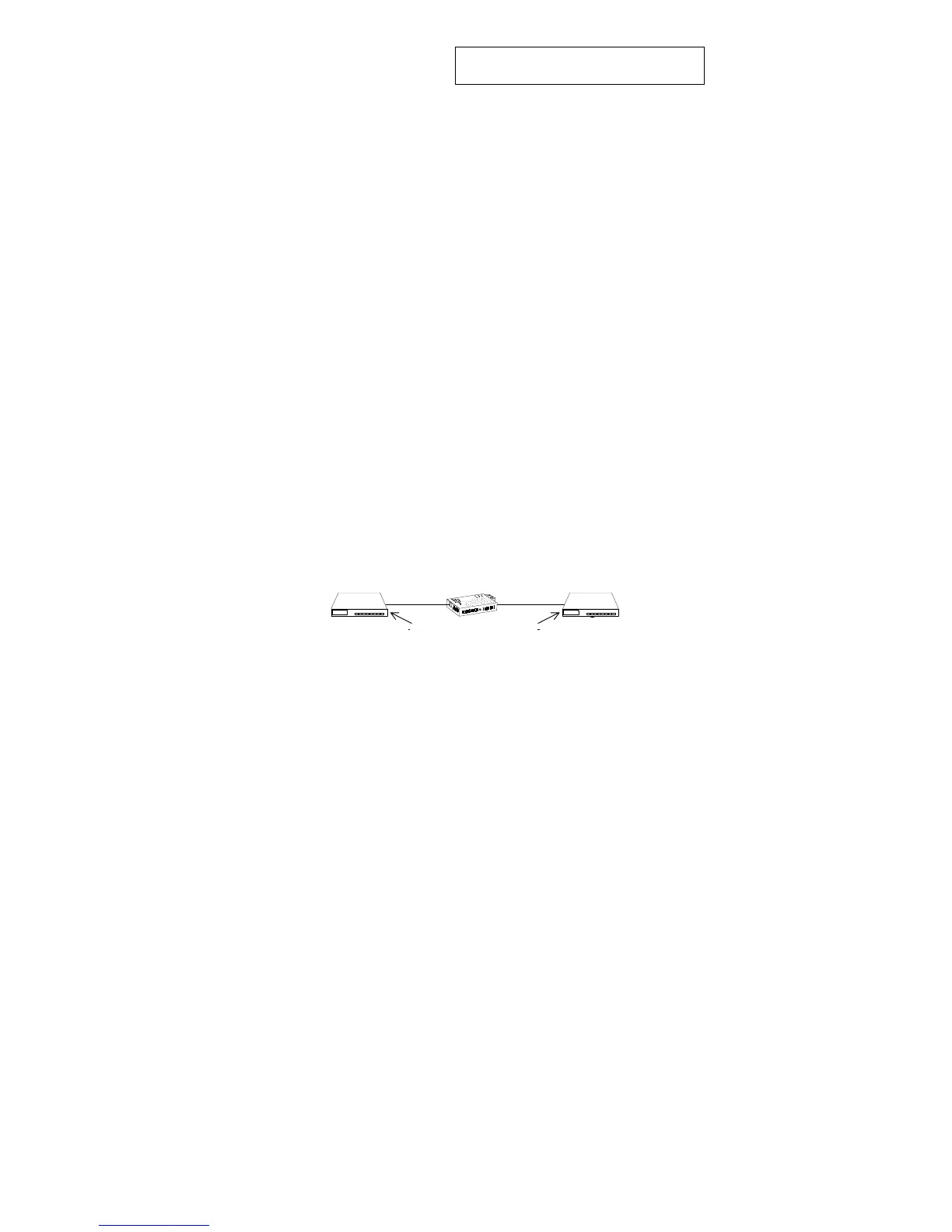

The figure below shows the basic connection scheme for the DFE-855.
Twisted-pair cable
100 meter (max.)
Fiber-optic cable
2000 meter (max.)
100BASE-FX port100BASE-TX port
Device BDevice A
Figure 2- 1
A network device (a server, workstation, router, switch) with a 100BASE-
TX port is connected to the DFE-855's RJ-45 jack through a twisted-pair
To Next Page
