9D-Link DHP-310 AV User Manual
Section 2 - Installation
Hardware Installation
5V
---
3A
1 2 LAN 3 4 INTERNET USB
RESET
INTERNET

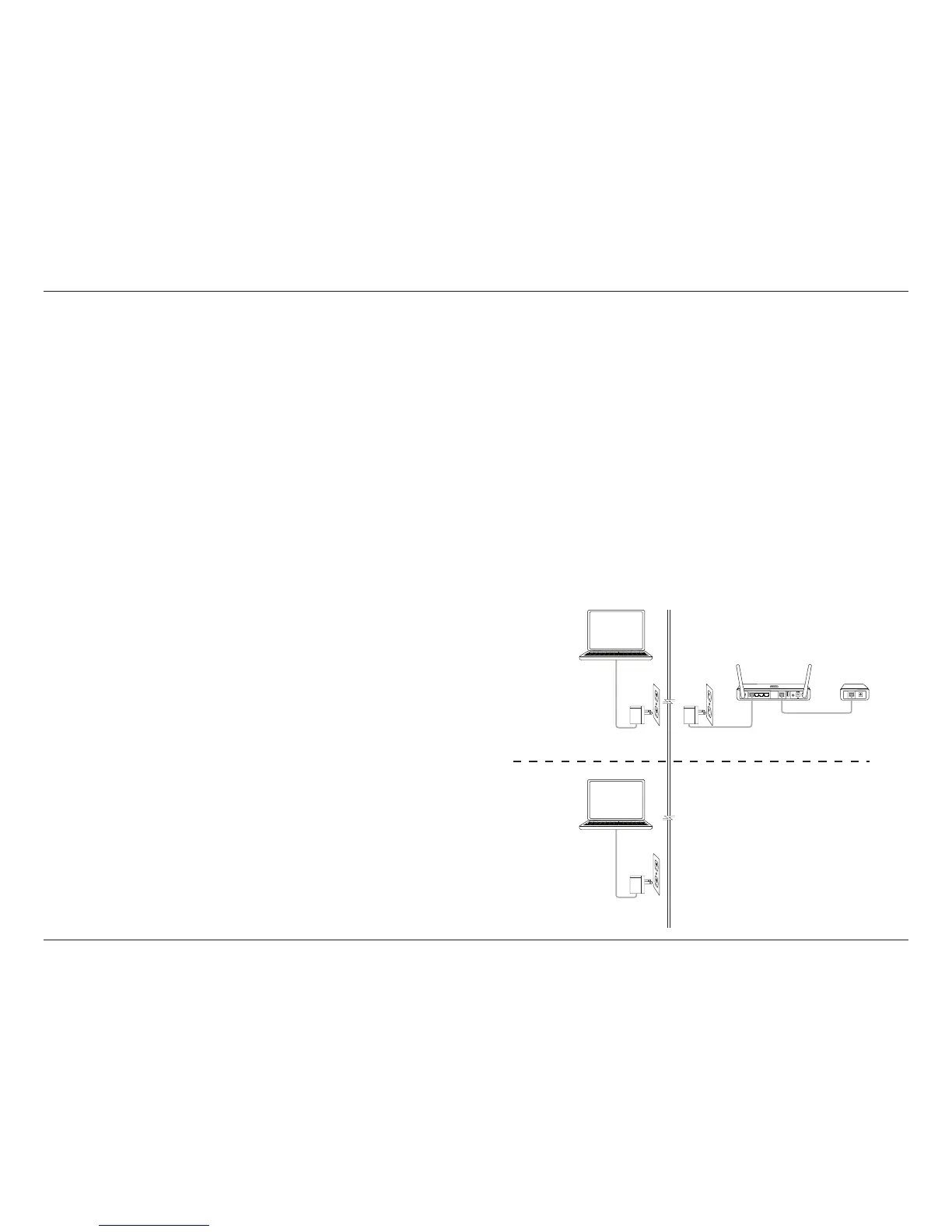

Wireless Router
Cable/DSL Modem
Add an additional
PowerLine Adapter
DHP-310AV (Included)
(Existing PowerLine Network)
Power
Plug in the DHP-310AV into an AC wall outlet.
Note: Power source is conrmed when the Power LED on the DHP-310AV is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector
located on the DHP-310AV and attach the other end of the Ethernet
cable to the network (e.g. router or switch) or PC. Network connectivity
is conrmed when the PowerLine and Ethernet LEDs on the DHP-310AV
are illuminated.
Note: If you set security on your other adapters and you have plugged in
your new D-Link PowerLine AV Mini Adapter, press the DHP-310AV Simple
Connect button for 2 seconds. Then, press the Simple Connect button on
any PowerLine adapter in your existing network for 2 seconds. Both buttons
must be pressed within 2 minutes.
Recommendations
• For best results, use in a regular wall outlet without any other product plugged into the same outlet. Connecting this product to a power strip or
a surge protector may adversely aect the performance of this product.
• Avoid using the PowerLine AV Mini Adapters in an electrical outlet that is located near an appliance that uses a lot of power such as a washer,
dryer, refrigerator, microwave, hair dryer, or air conditioning system.
• To verify connectivity or if you are having connection problems, plug the adapters in the same room to verify whether your home’s electrical
wiring is contributing to the issue. The adapters’ PowerLine LED indicators will illuminate if the connection is established.
