D-Link DSL-2640B Quick Install Guide

8D-Link DSL-2640B Quick Install Guide
Log in to the Router
This section will explain how to log in to your router using the following
steps:
1. Launch your web browser.
2. Enter the URL http://192.168.1.1 in the address bar and press
Enter.

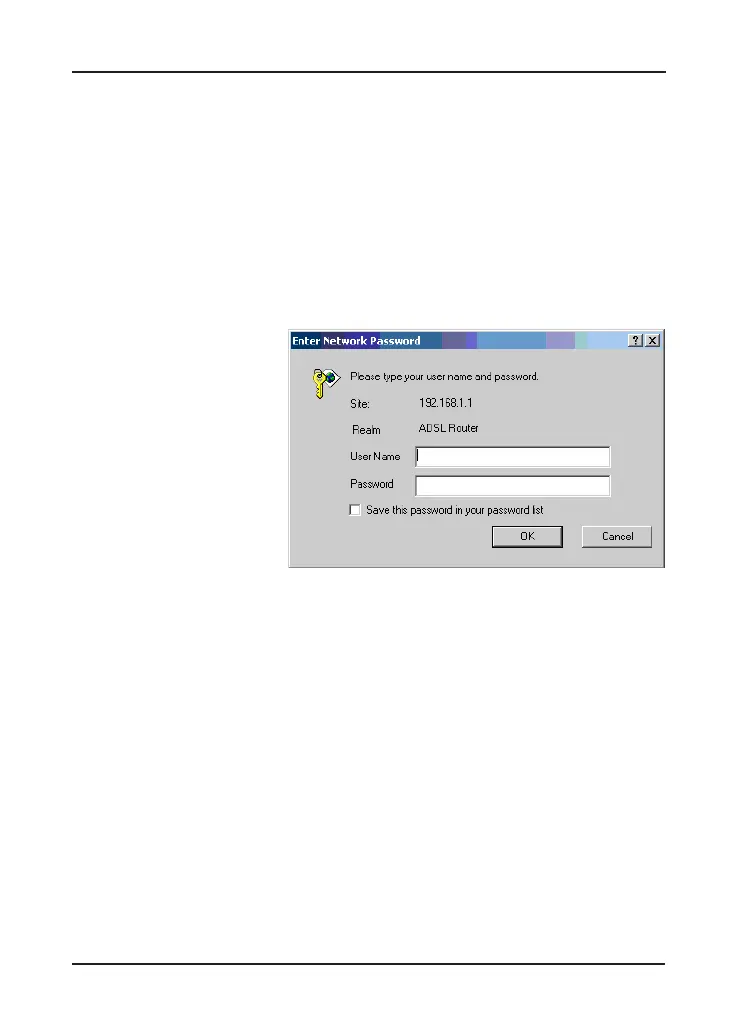

A login screen like the one below will be displayed after you connect
to the user interface.
3. Enter your user name and password, and then click OK to display
the user interface.
Note: There are three account types, each requiring a different
username and password.
• The user account provides limited access to certain configurations
(username / password: user / user).
• The admin account can perform all functions
(username / password: admin / admin).
• The support account is for ISP technicians for maintenance purposes
(username / password: support / support).
Note: Passwords can be changed at any time.
To quickly configure the router, please see the Wizard section in the
manual.

D-Link DSL-2640B Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz -60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	four RJ-45 ports
Ethernet connection type	10/100BASE-T
