D-Link DWL-120 User Manual

CONFIGURATION UTILITY
D-Link Air adapter products use the "Configuration Utility" as the
management software. The utility provides the user an easy inter-
face to change any settings related to the wireless adapter. When
the computer is started, the "Configuration Utility" starts automati-
cally and the system tray icon is loaded in the toolbar. Clicking on
the utility icon will start the Configuration Utility. Another way to
start the Configuration Utility is to click on Start > Programs >
D-Link DWL-120 11Mbps WLAN > DWL-120 wireless
Configuration.
If the utility icon appears with a red "X" in the toolbar, then the utili-
ty did not install properly and will need to be reinstalled.
Sometimes the icon will be red which happens when the wireless
adapter is set to a different channel or the communication mode is
set incorrectly. Verify the settings for the D-Link Air product and
check that computer is within wireless range.
When the utility is started, the following screen will be displayed.

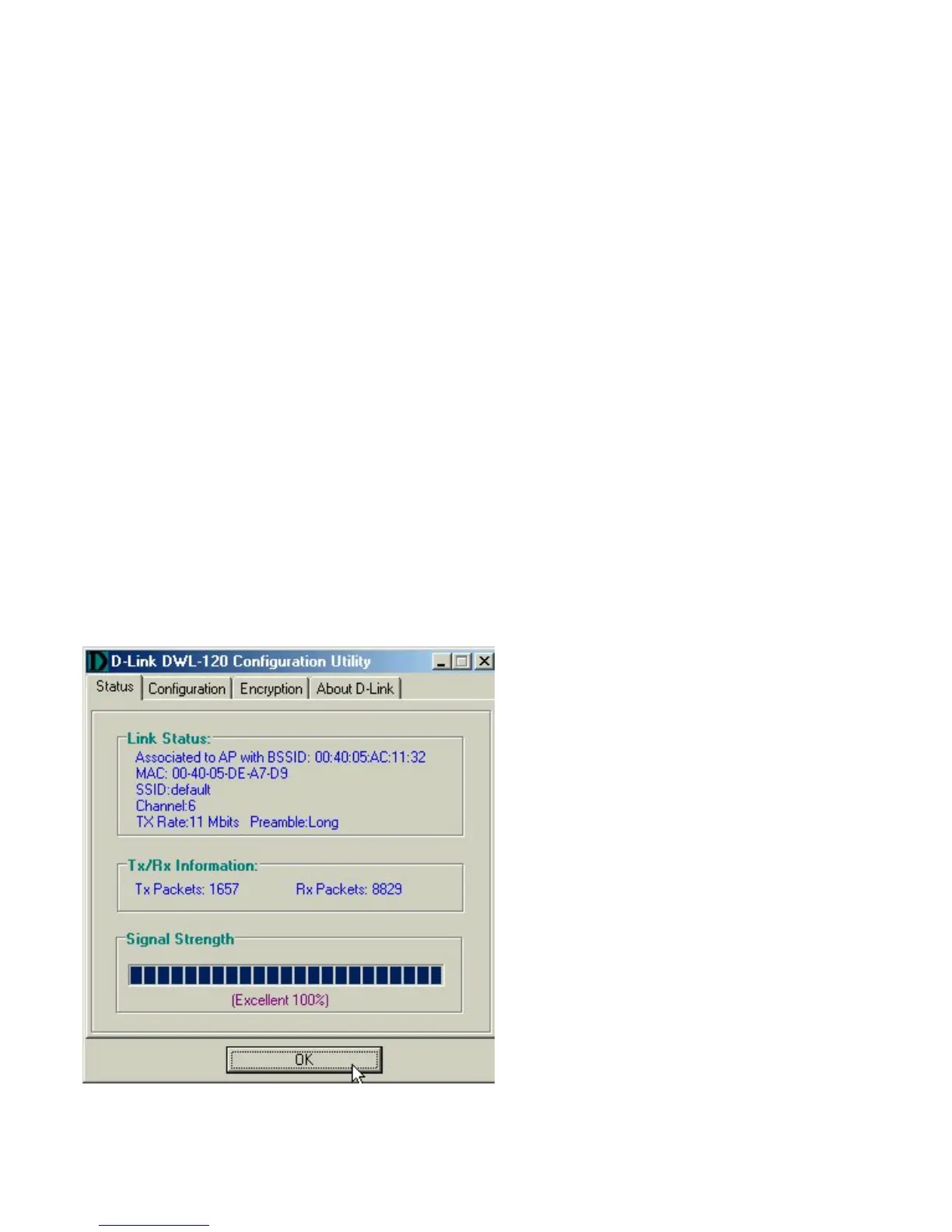

Figure 1 - Configuration Utility with opened "Status" tab
10

D-Link DWL-120 Specifications

Operating Environment

operating temperature	-32˚F to 131˚F (0˚C to 55˚C)
storing temperature	-4˚F to 167˚F (20˚C to 75˚C)
humidity	5% - 95% non-condensing

Power

operating voltage	5VDC +- 10%
transmit output power	19dBm (79mW) +-2dB
receiver sensitivity for 11Mbps@ 8% PER	-84dBm
receiver sensitivity for 2Mbps@ 8% PER	-90dBm

Frequency and Range

frequency range	2.4GHz to 2.462GHz
range indoors	Up to 328 feet

Weight and Dimensions

weight	1.2 lbs (544g)
length	3.3 inches (85mm)
width	2.2 inches (55mm)
height	0.5 inches (14mm)
