D-Link DWL-2600AP Quick Installation Guide

2  D-Link DWL-2600AP Quick Install Guide
ENGLISH
About This Guide
This installation guide provides basic instructions
for installing the DWL-2600AP Wireless Access
Point on your network. For additional information
about how to use the Access Point, please see
the User Manual, which is available on the CD
included in this package or from the D-Link
support website.
2.4 GHz – When this LED is lit up, the access
point’s 2.4 GHz radio is enabled. It will
blink when there is wireless trafc.
LAN – When this LED is lit up, the device’s
Ethernet port is connected to an active
router or switch. The light will blink
when there is trafc going through
the port.
POWER – When the LED is lit up, the access
point is powered and ready for use.
Unpacking the Product
System Requirements
Open the shipping carton and carefully unpack its
contents. Please consult the packing list located
in following information to make sure all items are
present and undamaged. If any item is missing
or damaged, please contact your local D-Link
reseller for replacement.
- DWL-2600AP 802.11n Power over Ethernet
(PoE) Unied Access Point
- Mounting Ring
- Ethernet Cable
- Console Cable*
- CD-ROM
- Ceiling Bracket (3 sets, sizes are 9/16", 14/16",
and 1 1/2")
NOTE no PSU supplied. To power the units
use an D-Link PoE switch or the D-Link
DPE-101GI PoE injector.
*The console cable is an optional accessory and
not included in the package in Armenia, Azerbaijan,
Belarus, Georgia, Israel, Kaliningrad, Kazakhstan,
Kyrgyzstan, Latvia, Lithuania, Moldova, Mongolia,
Russia, Turkey, Turkmenistan, Ukraine, and
Uzbekistan. If a cable is required, please contact
your reseller to order it (Model: ACS-AP-CONSOLE).
- CD-ROM Drive
- Windows
®
, Macintosh
®
, or Linux-based
operating system
- Ethernet port or installed Ethernet adapter
- Internet Explorer 7.0, Safari 5.0, Firefox 4.0,
or higher
Optional Accessories
- PoE Base Unit (Model: DPE-101GI)

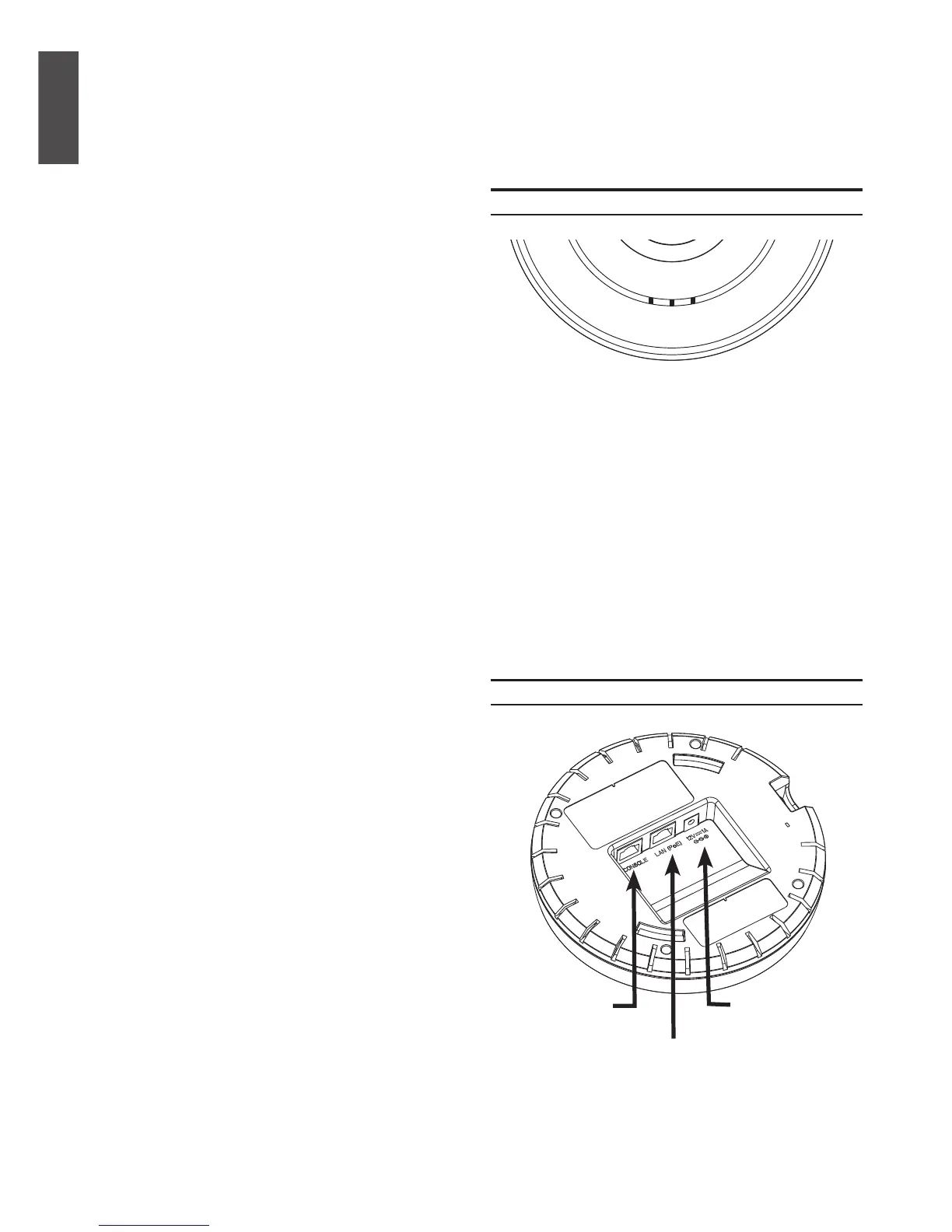

Figure 2. DWL-2600AP Rear Panel
Hardware Overview
Figure 1. DWL-2600AP LEDs
Power Receptor
(*Note no longer
used, replaced by
PoE)
LAN Port (PoE)
Console Port
POWER
LAN
2.4GHz
LEDs
Interfaces

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
