D-Link Web Smart DES-1210-28P User Manual

5 Configuration D-Link Web Smart Switch User Manual

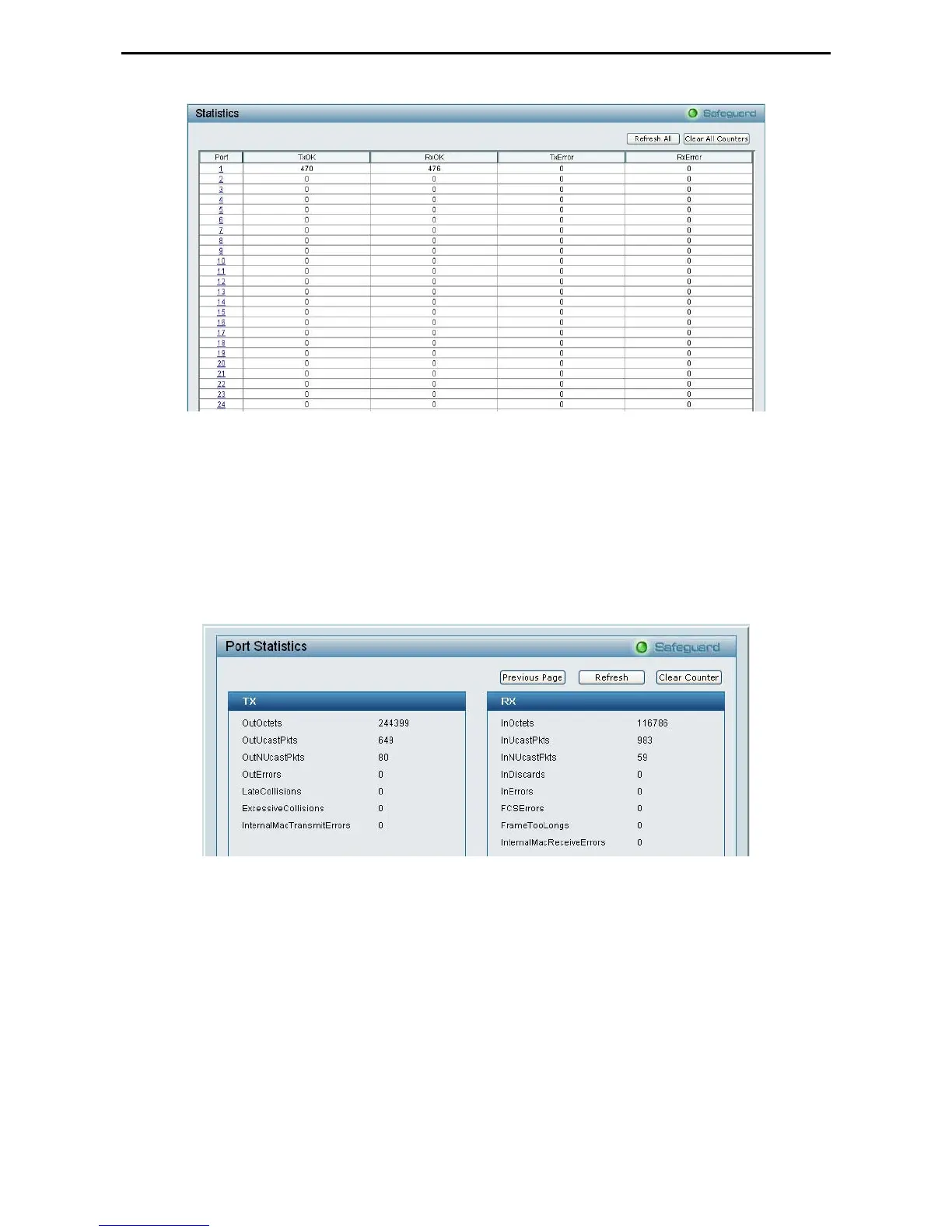

Figure 97 – Monitoring > Statistics
Refresh All: Renews the details collected and displayed.
Clear All Counters: To reset the details displayed.
TxOK: Number of packets transmitted successfully.
RxOK: Number of packets received successfully.
TxError: Number of transmitted packets resulting in error.
RxError: Number of received packets resulting in error.
To view the statistics of individual ports, click one of the linked port numbers for details.
Figure 98 – Monitoring > Port Statistics
Previous Page: Go back to the Statistics main page.
Refresh: To renew the details collected and displayed.
Clear Counter: To reset the details displayed.
58

D-Link Web Smart DES-1210-28P Specifications

General

Brand	D-Link
Model	Web Smart DES-1210-28P
Category	Switch
Language	English
