5 Configuration D-Link Web Smart Switch User Manual

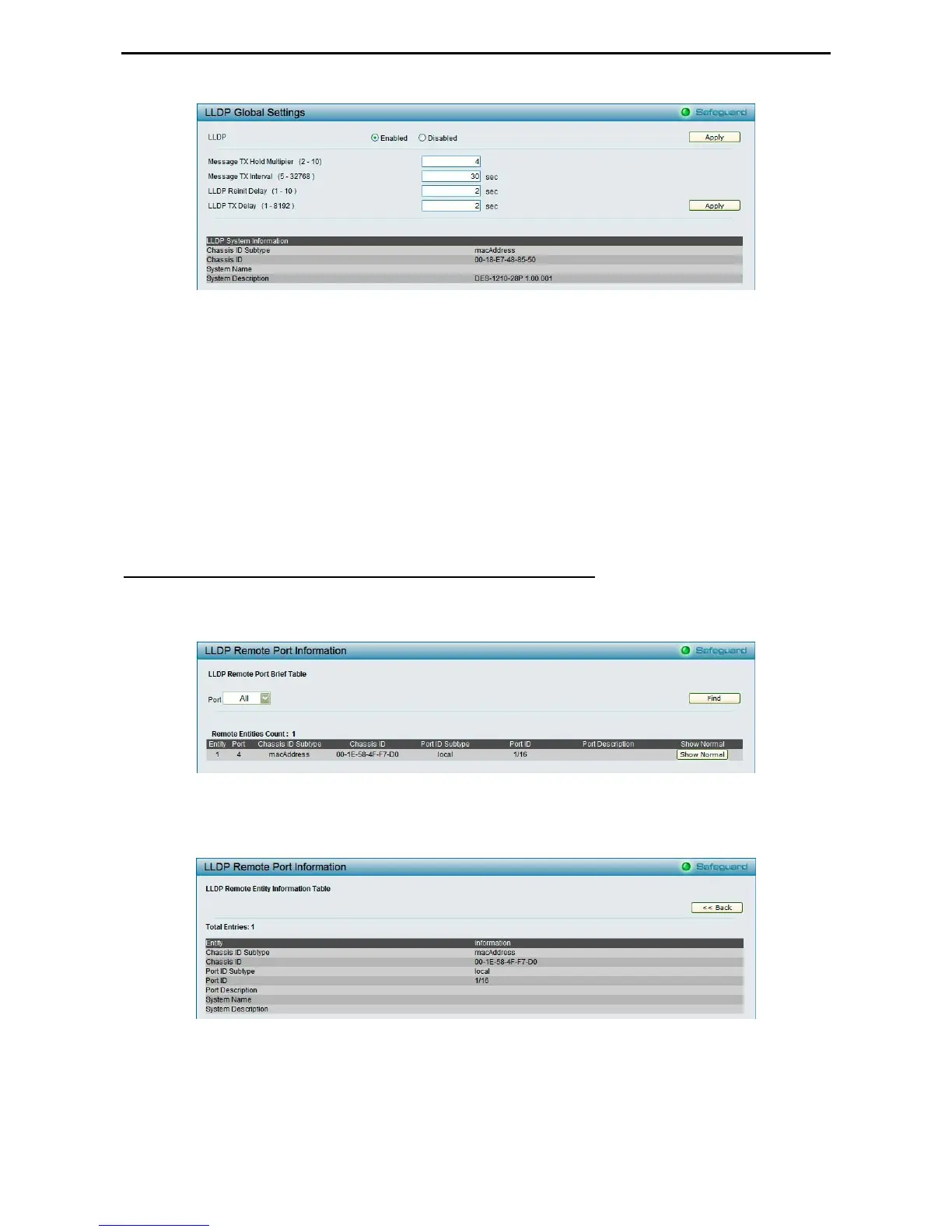

Figure 111 – LLDP > LLDP Global Settings
LLDP State: Select Enable or Disable and then click Apply to turn on/off the LLDP function. By default, the
LLDP state is Enabled.
Message TX Hold Multiplier (2-10): Set the Time-to-Live for the LLDP advertisements transmitted. If the
Time-to-Live of LLDP advertisements expire, the advertised data will be deleted from the neighboring
Switch’s MIB. The default value is 4 hops.
Message TX Interval (5-32768): Set the time interval to transmit the LLDP advertisement. The default value
is 30 seconds.
LLDP Reinit Delay(1-10): Enter a time delay for the LLDP port. This LLDP port will wait for a specific
interval before it re-initializes.
LLDP TX Delay: Configure the minimum time delay interval for any LLDP port which transmits successive
LLDP advertisements due to changes in the LLDP MIB content. The default value is 2 seconds.
LLDP > LLDP Remote Port Information (Only for DES-1210-08P/28P)
This page displays the port information learned from LLDP neighbors. Select a port and click Find to display
the LLDP neighbor’s information.
Figure 112 – LLDP > LLDP Remote Port Information
To view the settings for a remote port, click Show Normal and the following page displays.
Figure 113 – LLDP > LLDP Remote Port Information
Click << Back to return to the previous page.
