Daewoo DHC-X100 Series User Manual

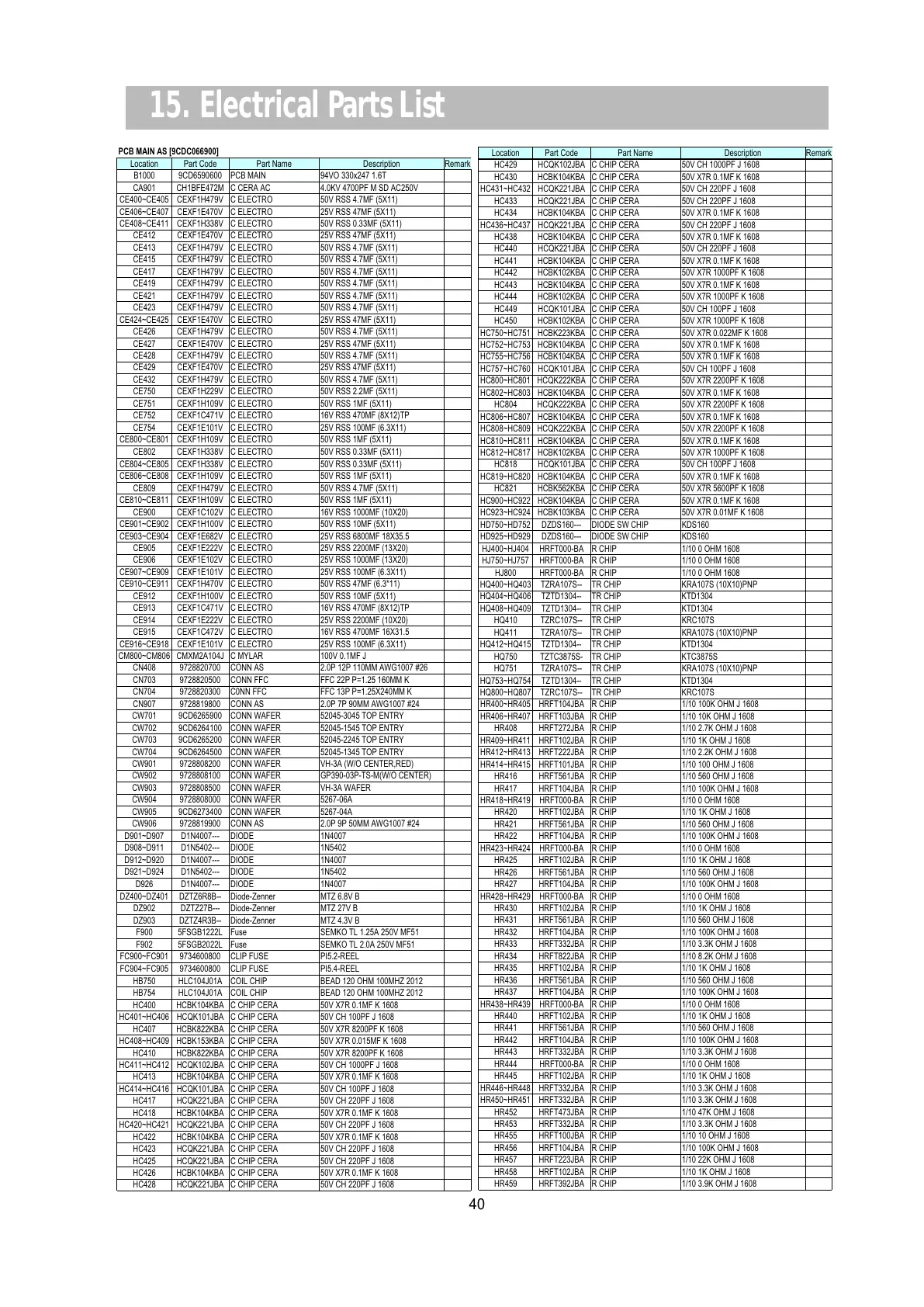

15. Electrical Parts List
Location Part Code Part Name Description Remark
B1000 9CD6590600 PCB MAIN 94VO 330x247 1.6T
CA901 CH1BFE472M C CERA AC 4.0KV 4700PF M SD AC250V
CE400~CE405 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE406~CE407 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE408~CE411 CEXF1H338V C ELECTRO 50V RSS 0.33MF (5X11)
CE412 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE413 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE415 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE417 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE419 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE421 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE423 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE424~CE425 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE426 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE427 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE428 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE429 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE432 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE750 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE751 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE752 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
CE754 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE800~CE801 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE802 CEXF1H338V C ELECTRO 50V RSS 0.33MF (5X11)
CE804~CE805 CEXF1H338V C ELECTRO 50V RSS 0.33MF (5X11)
CE806~CE808 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE809 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE810~CE811 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE900 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20)
CE901~CE902 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE903~CE904 CEXF1E682V C ELECTRO 25V RSS 6800MF 18X35.5
CE905 CEXF1E222V C ELECTRO 25V RSS 2200MF (13X20)
CE906 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20)
CE907~CE909 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE910~CE911 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3*11)
CE912 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE913 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
CE914 CEXF1E222V C ELECTRO 25V RSS 2200MF (10X20)
CE915 CEXF1C472V C ELECTRO 16V RSS 4700MF 16X31.5
CE916~CE918 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CM800~CM806 CMXM2A104J C MYLAR 100V 0.1MF J
CN408 9728820700 CONN AS 2.0P 12P 110MM AWG1007 #26
CN703 9728820500 CONN FFC FFC 22P P=1.25 160MM K
CN704 9728820300 C0NN FFC FFC 13P P=1.25X240MM K
CN907 9728819800 CONN AS 2.0P 7P 90MM AWG1007 #24
CW701 9CD6265900 CONN WAFER 52045-3045 TOP ENTRY
CW702 9CD6264100 CONN WAFER 52045-1545 TOP ENTRY
CW703 9CD6265200 CONN WAFER 52045-2245 TOP ENTRY
CW704 9CD6264500 CONN WAFER 52045-1345 TOP ENTRY
CW901 9728808200 CONN WAFER VH-3A (W/O CENTER,RED)
CW902 9728808100 CONN WAFER GP390-03P-TS-M(W/O CENTER)
CW903 9728808500 CONN WAFER VH-3A WAFER
CW904 9728808000 CONN WAFER 5267-06A
CW905 9CD6273400 CONN WAFER 5267-04A
CW906 9728819900 CONN AS 2.0P 9P 50MM AWG1007 #24
D901~D907 D1N4007--- DIODE 1N4007
D908~D911 D1N5402--- DIODE 1N5402
D912~D920 D1N4007--- DIODE 1N4007
D921~D924 D1N5402--- DIODE 1N5402
D926 D1N4007--- DIODE 1N4007
DZ400~DZ401 DZTZ6R8B-- Diode-Zenner MTZ 6.8V B
DZ902 DZTZ27B--- Diode-Zenner MTZ 27V B
DZ903 DZTZ4R3B-- Diode-Zenner MTZ 4.3V B
F900 5FSGB1222L Fuse SEMKO TL 1.25A 250V MF51
F902 5FSGB2022L Fuse SEMKO TL 2.0A 250V MF51
FC900~FC901 9734600800 CLIP FUSE PI5.2-REEL
FC904~FC905 9734600800 CLIP FUSE PI5.4-REEL
HB750 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB754 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HC400 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC401~HC406 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC407 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
HC408~HC409 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
HC410 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
HC411~HC412 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
HC413 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC414~HC416 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC417 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC418 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC420~HC421 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC422 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC423 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC425 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC426 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC428 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
PCB MAIN AS [9CDC066900]
40
Location Part Code Part Name Description Remark
HC429 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
HC430 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC431~HC432 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC433 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC434 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC436~HC437 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC438 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC440 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC441 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC442 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC443 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC444 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC449 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC450 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC750~HC751 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC752~HC753 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC755~HC756 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC757~HC760 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC800~HC801 HCQK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC802~HC803 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC804 HCQK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC806~HC807 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC808~HC809 HCQK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC810~HC811 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC812~HC817 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC818 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC819~HC820 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC821 HCBK562KBA C CHIP CERA 50V X7R 5600PF K 1608
HC900~HC922 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC923~HC924 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HD750~HD752 DZDS160--- DIODE SW CHIP KDS160
HD925~HD929 DZDS160--- DIODE SW CHIP KDS160
HJ400~HJ404 HRFT000-BA R CHIP 1/10 0 OHM 1608
HJ750~HJ757 HRFT000-BA R CHIP 1/10 0 OHM 1608
HJ800 HRFT000-BA R CHIP 1/10 0 OHM 1608
HQ400~HQ403 TZRA107S-- TR CHIP KRA107S (10X10)PNP
HQ404~HQ406 TZTD1304-- TR CHIP KTD1304
HQ408~HQ409 TZTD1304-- TR CHIP KTD1304
HQ410 TZRC107S-- TR CHIP KRC107S
HQ411 TZRA107S-- TR CHIP KRA107S (10X10)PNP
HQ412~HQ415 TZTD1304-- TR CHIP KTD1304
HQ750 TZTC3875S- TR CHIP KTC3875S
HQ751 TZRA107S-- TR CHIP KRA107S (10X10)PNP
HQ753~HQ754 TZTD1304-- TR CHIP KTD1304
HQ800~HQ807 TZRC107S-- TR CHIP KRC107S
HR400~HR405 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR406~HR407 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR408 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR409~HR411 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR412~HR413 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR414~HR415 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR416 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR417 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR418~HR419 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR420 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR421 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR422 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR423~HR424 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR425 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR426 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR427 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR428~HR429 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR430 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR431 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR432 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR433 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR434 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR435 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR436 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR437 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR438~HR439 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR440 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR441 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR442 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR443 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR444 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR445 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR446~HR448 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR450~HR451 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR452 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR453 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR455 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR456 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR457 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR458 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR459 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
