Hisense Confidential

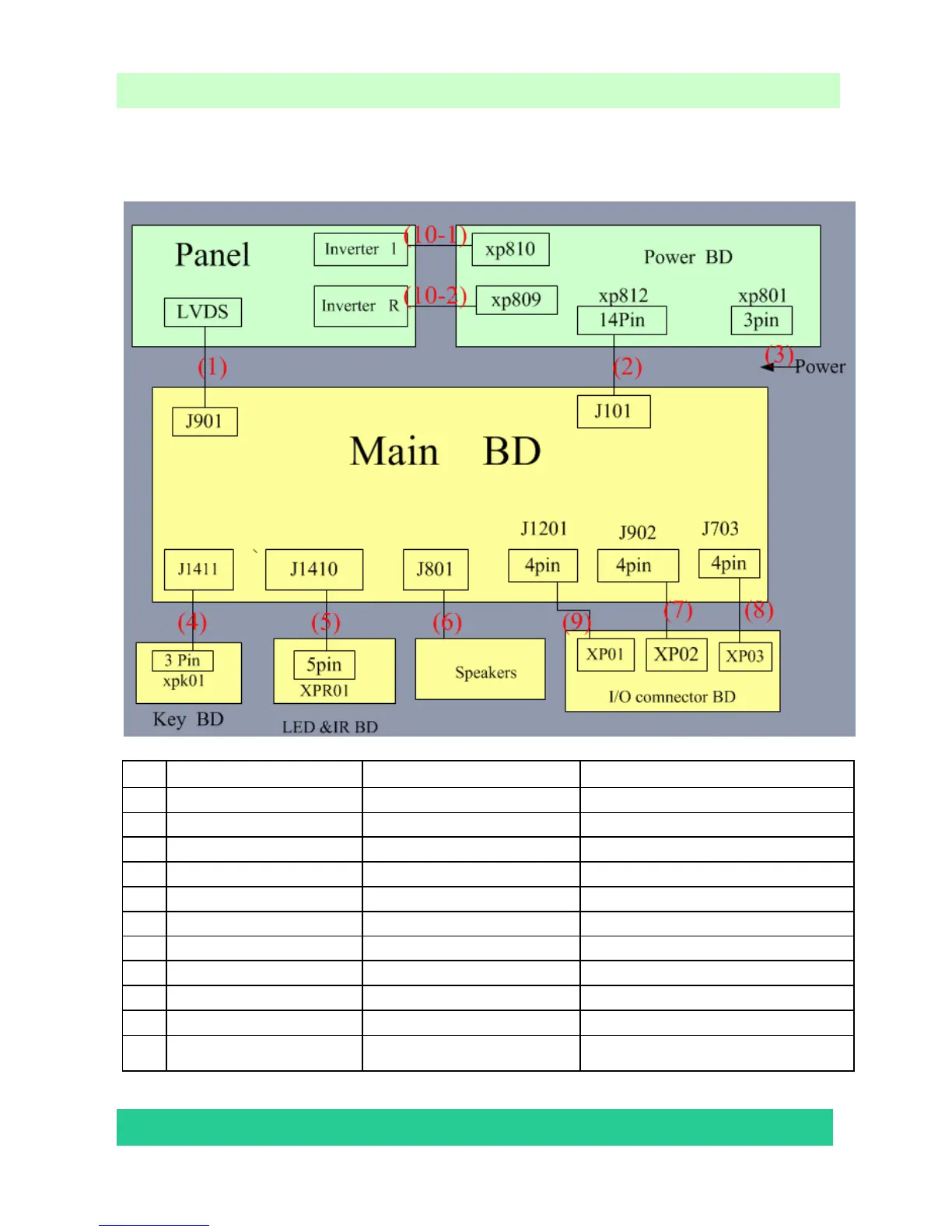

4.3 Wires and Cables Overall Wiring Diagram(s)
No DESCRIPTION SPECIPICATION NOTE
1
LVDS signal Connector/HX-0147\ROH Main BD J901<-->Panel
2
+5V, +12V supply to Main BD Connector /TJC10T-14Y-200\ROH Main BD J101<-->Power BD XP812
3
Main Power Connector /TJC2-3Y-300-2\ROH Power Inlet-->Power BD XP801
4
Buttons Connector /TJC10T-3Y-800\ROH Main BD J1411<--> Key BD XPK01
5
LED & IR Connector /TJC10T-5Y-500\ROH Main BD J1410<-->IR &LED BD XPR01
6
Audio out put (R/L) Connector /TJC3H-4Y-650-900\ROH Main BD J801<-->Speakers
7
Headphone Audio Connector /TJC3T-4Y-300\ROH Main BD J902<-->I/O CON BD XP02
8
Serial data Connector /TJC10T-4Y-350\ROH Main BD J703<-->I/O CON BD XP03
9
Video/Audio signal Connector /HX-2026C400\ROH Main BD J1201<-->I/O CON BD XP01
10-1
Backlight Power Connector /HX-3005B450\ROH Power BD XP810<--> Panel left backlight port
10-2
Backlight Power Connector /HX-3005B350\ROH Power BD XP809<--> Panel right backlight port
