46
¡ DSA-181L/DSB-181L
PROCEDURES PHOTOS

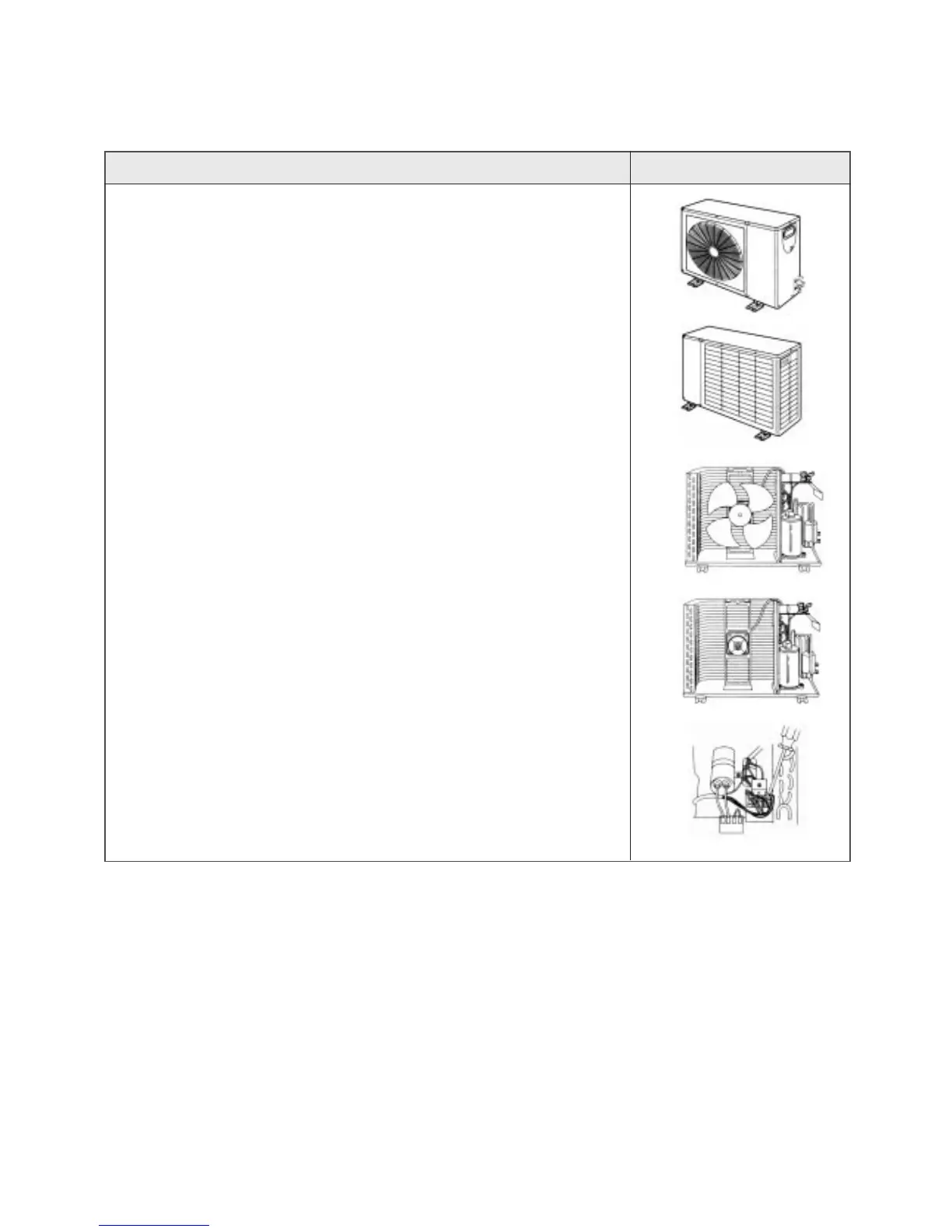

1. Basic Procedures
!Stop the air conditioner and pull out power plug from wall outlet.
@ Remove CABINET TOP COVER. (Loosen ten screws)
# Remove CABINET SIDE COVER. (Loosen six screws)
$ Remove CABINET FRONT. (Loosen six screws)
2. Removing Fan Motor (Fig 4)
! Do basic procedure. (!~$)
@ Loosen nut for fixing fan by spanner.
# Remove spring washer and plain washer.
$ Remove fan.
% Remove fan stopper.
^ Disconnect Motor lead wire from control box.
& Loosen four screws for fixing Motor bracket and then remove
the Motor.
3. Removing Motor Capacitor and Compressor Capacitor.
! Do basic procedure.(!~$)
@ Diconnect lead wire from the Motor capacitor and compressor
capacitor.
# Loosen two screws for fixing the capacitor bracket.
$ Remove Motor capacitor and compressor capacitor.
4. Removing Magnetic Contactor. (Fig 5)
! Do basic procedure !~@ .
@ Disconnect lead wire from Magnetic Contactor.
! Remove Magnetic contactor. (Loosen four screws)
Fig 1
Fig 2
Fig 3
Fig 5
Fig 4
