96

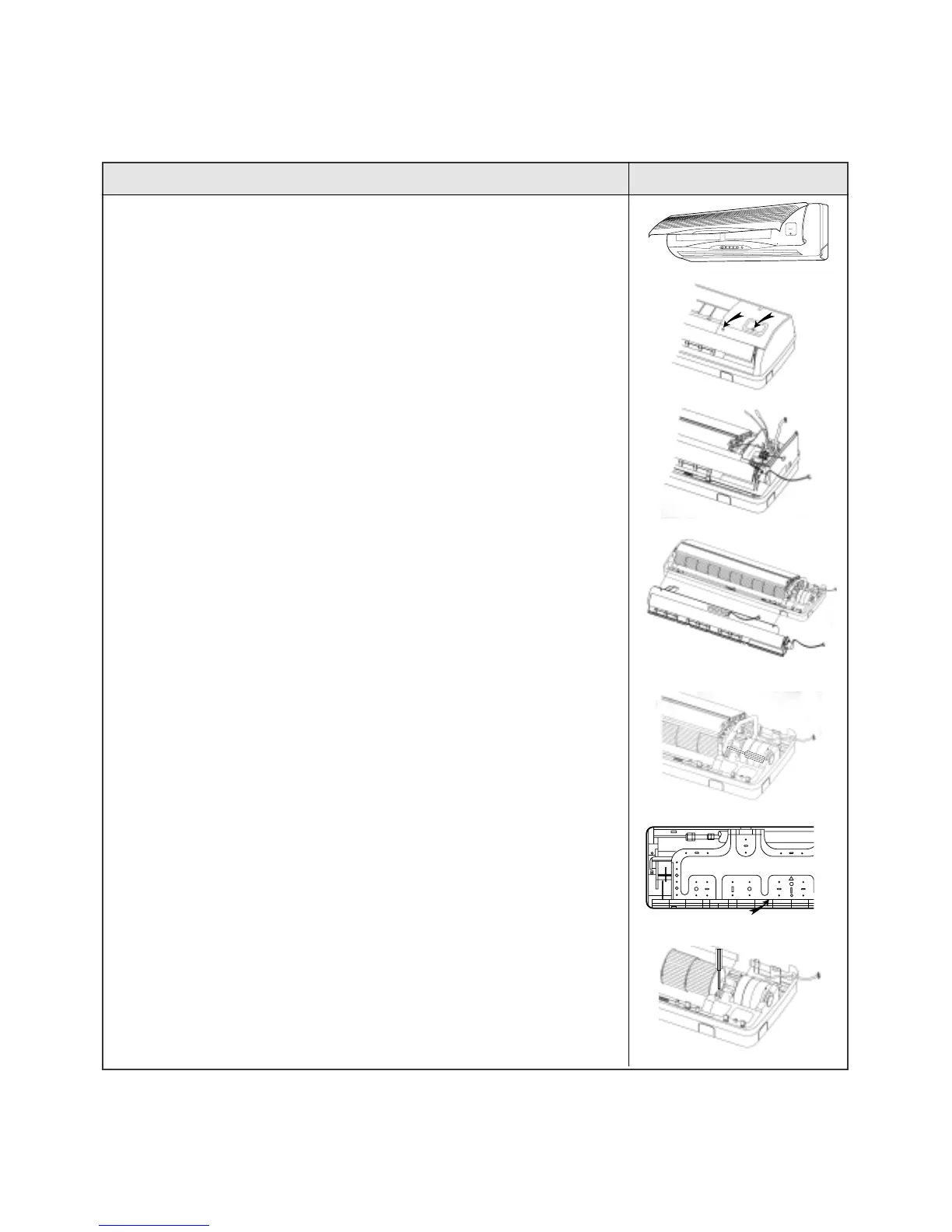

PROCEDURES PHOTOS
1. Stop the operation of the Air conditioner and disconnect the power cord
from the wall outlet.
2. Removing the Insert Grille and Frame Grille. (Fig 1~2)
1 Draw up the Insert Grille and remove it.
2 Loosen the screws fixed at the Cover Ter-Block.
3 Loosen two screw at the Frame Grille.
4 Remove the Frame Grille.
3. Removing the Control Box. (Fig 3)
1 Remove room and coil thermistors.
2 Disconnect the fan motor lead wire from connection at the
Control PCB.
3 Disconnect the stepping motor lead wire from connection at the
Control PCB.
4 Remove the select switch from connection at the Control PCB.
5 Loosen the screw fixed at the ground wire.
6 Remove the Control Box
4. Removing the Drain Pan. (Fig 4)
1 Disconnect the Body drain hole. (left and right Body)
2 Disconnect three hooks and remove the Drain Pan.
5. Removing the Indoor Evaporator. (Fig 5~6)
1 Remove the hook fixed at the Plate mounting of the back of Body.
2 Remove Indoor Evaporator.
6. Removing the Cross Flow Fan. (Fig 7)
1 Remove the set screw fixed at the Motor shaft.
2 Remove the Cross Flow Fan.
7. Remove the Motor IDU and the Bearing Plastic.
Fig 1
Fig 3
Fig 4
Fig 5
Fig 6
◆DSB240LH-R/DSA-240LH-R
Fig 2
Fig 7
To Next Page
