◆DSB-070LH/071LH/DSB-091LH/092LH/DSB-121LH/122LH/123LH

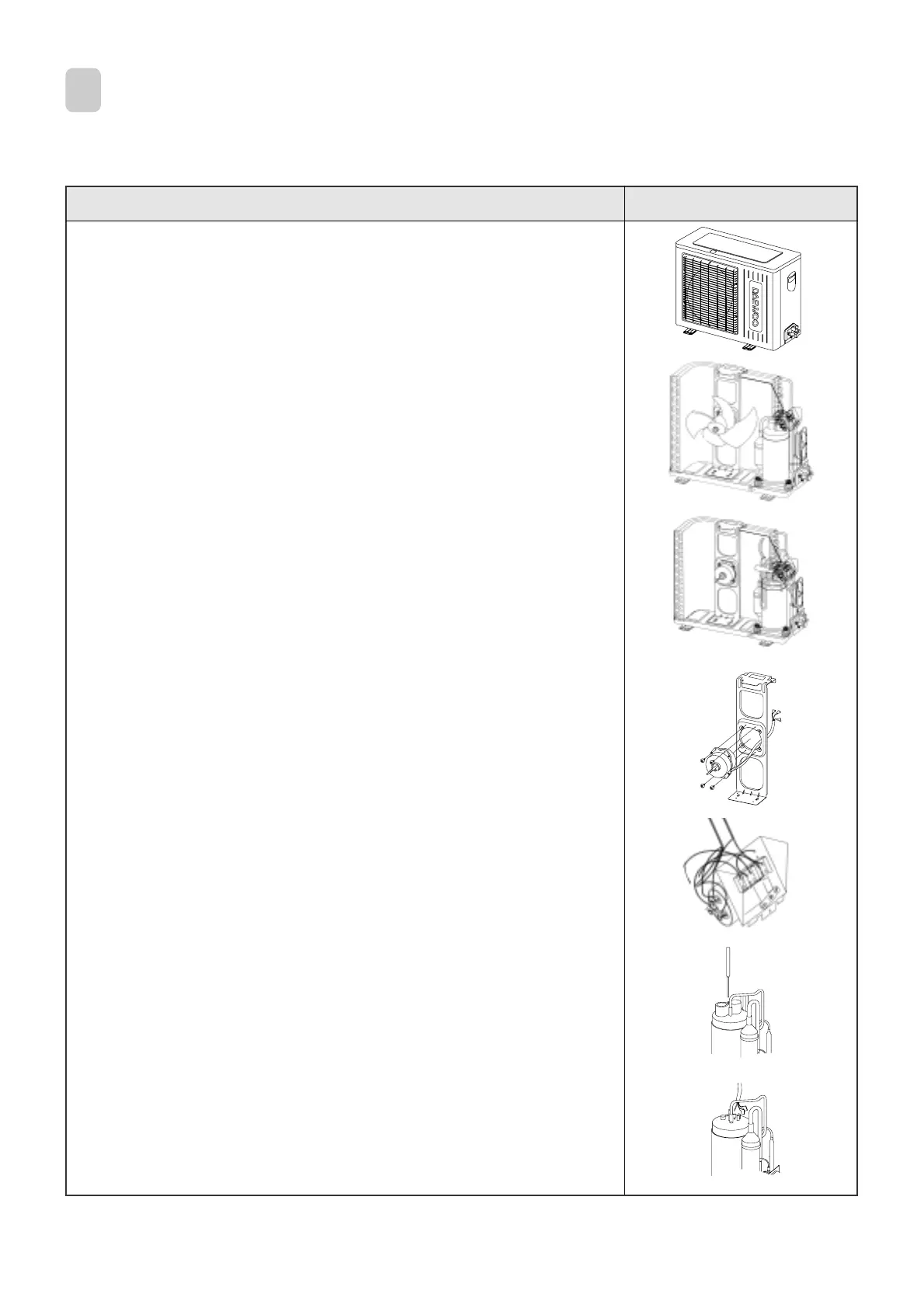

PROCEDURES PHOTOS
1.Stop the operation of the air conditioner and disconnect the wire from
Indoor Unit to Outdoor Unit.
2. Disassemble the case. (Fig 1~2)
1 Remove the Top Panel. (Loosen thirteen screws)
2 Remove the Front Cabinet. (Loosen six screws)
3 Remove the Side Cabinet. (Loosen seven screws)
4 Remove the Guide Support. (Loosen two screws)
3. Removing the Propeller Fan. (Fig 3)
1 Loosen the Nut fixed at the the Propeller Fan.
2 Remove the Plain Washer.
3 Remove the Propeller Fan.
4. Removing the Motor ODU. (Fig 4)
1 Loosen four screws fixed at the Bracket Motor.
2 Disconnect the wire at the Control Panel and remove the Motor ODU.
5. Removing the Dual Capacitor. (Fig 5)
1 Disconnect the wire at the Control Panel.
2 Loosen the screw fixed at the Clamp Capacitor.
3 Remove the Dual Capacitor.
6. Removing the Over load Protector. (Fig 6~7)
1 Loosen the Hex Nut at Terminal Cover.
2 Remove the Terminal Cover.
3 Remove the wire at the Over load Protector.
4 Remove the Over load Protector.
Fig 5
Fig 4
Fig 6
Fig 7
Fig 1
Fig 3
Fig 2
