CP-520/520A/520F Service Manual
DTV R&D Europe
5
8 Slow Switching TV : 0 to 2V, AV 16/9 : 4.5 to 7V, AV 4/3 : 9.5 to 12V , Impedance
> 10 kΩ
9 Green Earth
10 N.C.
11 Green Input
0.7 Vpp ± 0.1V, Impedance 75Ω
12 N.C.
13 Red Earth
14 Blanking Earth
15 Red Input
0.7 Vpp ± 0.1V, Impedance 75Ω
16 Fast Switching
0 to 0.4V : Logic “0”, 1 to 3V : Logic “1”, Impedance 75Ω
17 Video Out Earth
18 Video In Earth
19 Video Output
1 Vpp ± 3dB, Impedance 75Ω
20 Video Input
1 Vpp ± 3dB, Impedance 75Ω
21 Common Earth

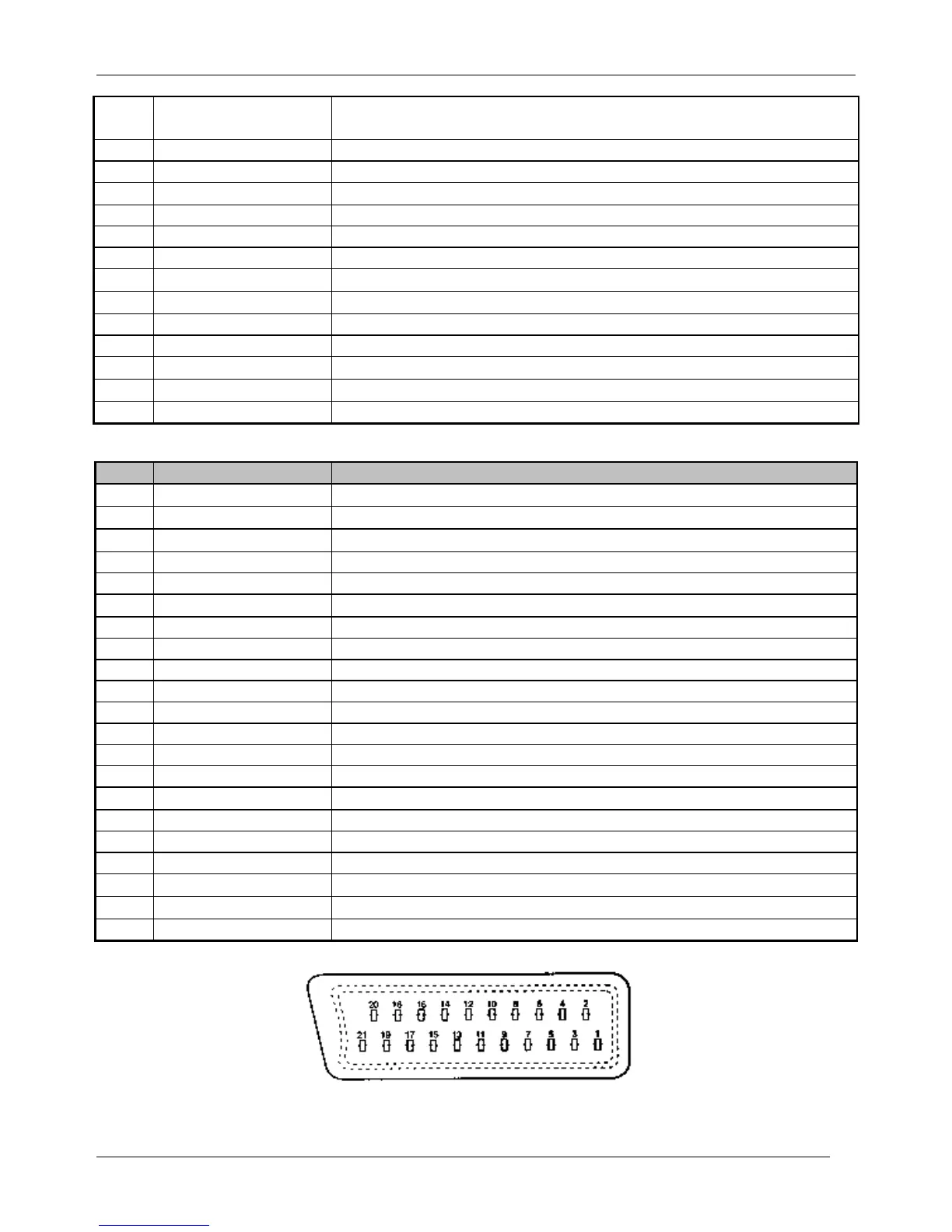

1.1.3 EURO-SCART 2 (21 Pin)
Pin Signal Description Matching value
1 Audio Output Right
0.5 Vrms, Impedance < 1 kΩ, ( RF 54% Mod )
2 Audio Input Right
0.5 Vrms, Impedance > 10 kΩ
3 Audio Output Left
0.5 Vrms, Impedance < 1 kΩ, ( RF 54% Mod )
4 Audio Earth
5 Earth
6 Audio Input Left
0.5 Vrms, Impedance > 10 kΩ
7 N.C.
8 N.C.
9 N.C.
10 N.C.
11 N.C.
12 N.C.
13 Earth
14 Earth
15 Chroma Input
± 3dB for a luminance signal of 1 Vpp
16 N.C.
17 Earth
18 Video In Earth
19 Video Output
1 Vpp ± 3dB, Impedance 75Ω ( Monitor output )
20 Video Input, Y In.
1 Vpp ± 3dB, Impedance 75Ω
21 Common Earth
