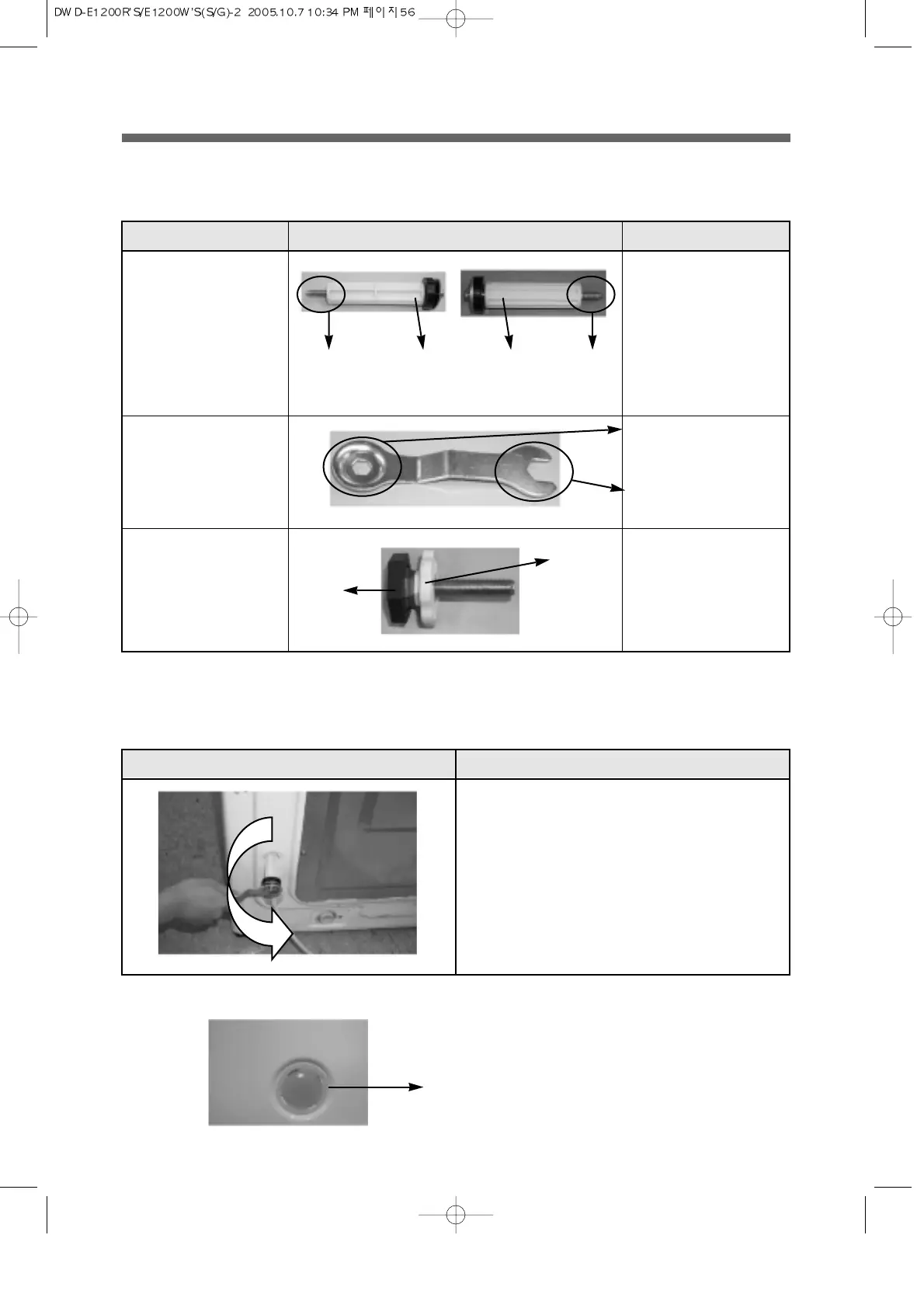

9. INSTALLATION GUIDE
1. PARTS & CONFIGURATION
2. INSTALLATION PROCESS
1Remove the FIXTURE UP/DOWN AS
2Insert CAP HOLDER(4EA) after removing FIXTURE UP/DOWN AS.
Removal Method Remarks
☞ Disassemble the FIXTURE UP/DOWN AS by
turning CCW direction.
☞ Please keep FIXTURE UP/DOWN AS for later use.
☞ When fixing FIXTURE UP/DOWN AS, turn it CW
direction.
PARTS NAME
FIXTURE UP/DOWN AS
UNIT SERVICE WRENCH
LEG ADJUST AS
REMARKS
SPECIAL SCREW UP
: L= 109mm
SPECIAL SCREW DOWN
:L=145mm
1Use this part to remove
FIXTURE UP/ DOWN.
2Adjust leg with this part.
FIGURES
SPECIAL SCREW
UP
FIXTURE UP FIXTURE
DOWN
FOOT
FIXTURE
LEG
CAP HOLDER
SPECIAL
SCREW
DOWN
