• situation : PCB shows "E3".
cause) ☞FAN MOTOR can not work.
countermeasures) ☞Replace the Fan Motor.

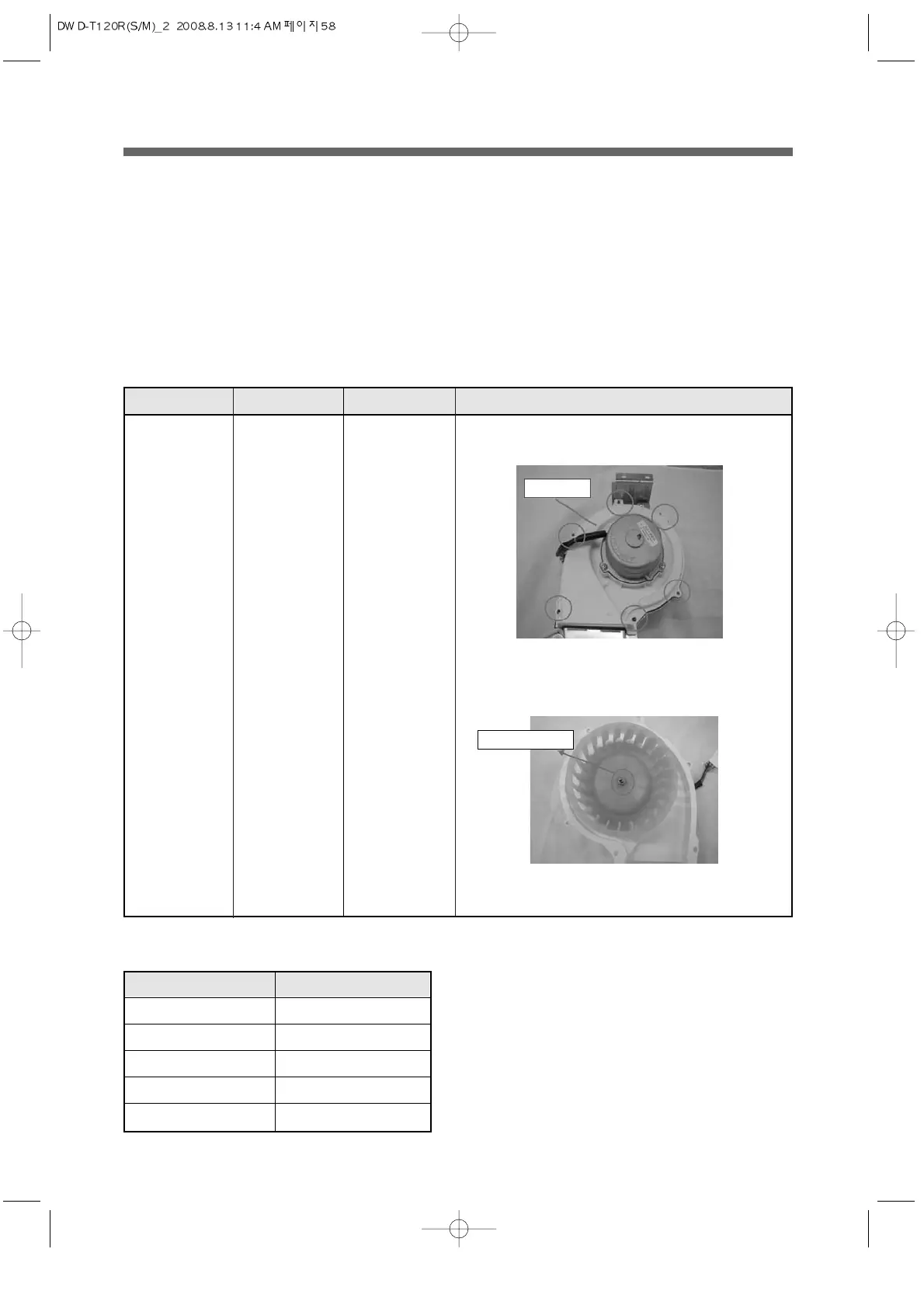

part name checking results repair method disassemble process of Fan Motor
FAN MOTOR fan motor failure replace
fan motor
1Disassemble Duct Cover As from Duct B As
(Screw 4EA)
2Disassemble FAN AS From Duct Cover As
(Fixed by 8mm NUT)
3Disassemble the FAN MOTOR(SCREW 3EA)
parts Control time
MOTOR 15 sec On, 5sec Off
DRAIN MOTOR Continous working
FAN MOTOR Continous working
DRY HEATER 95°C On, 105°C Off
INLET VALVE 30sec On, 5sec Off
Remarks) control times of each parts during dry process
