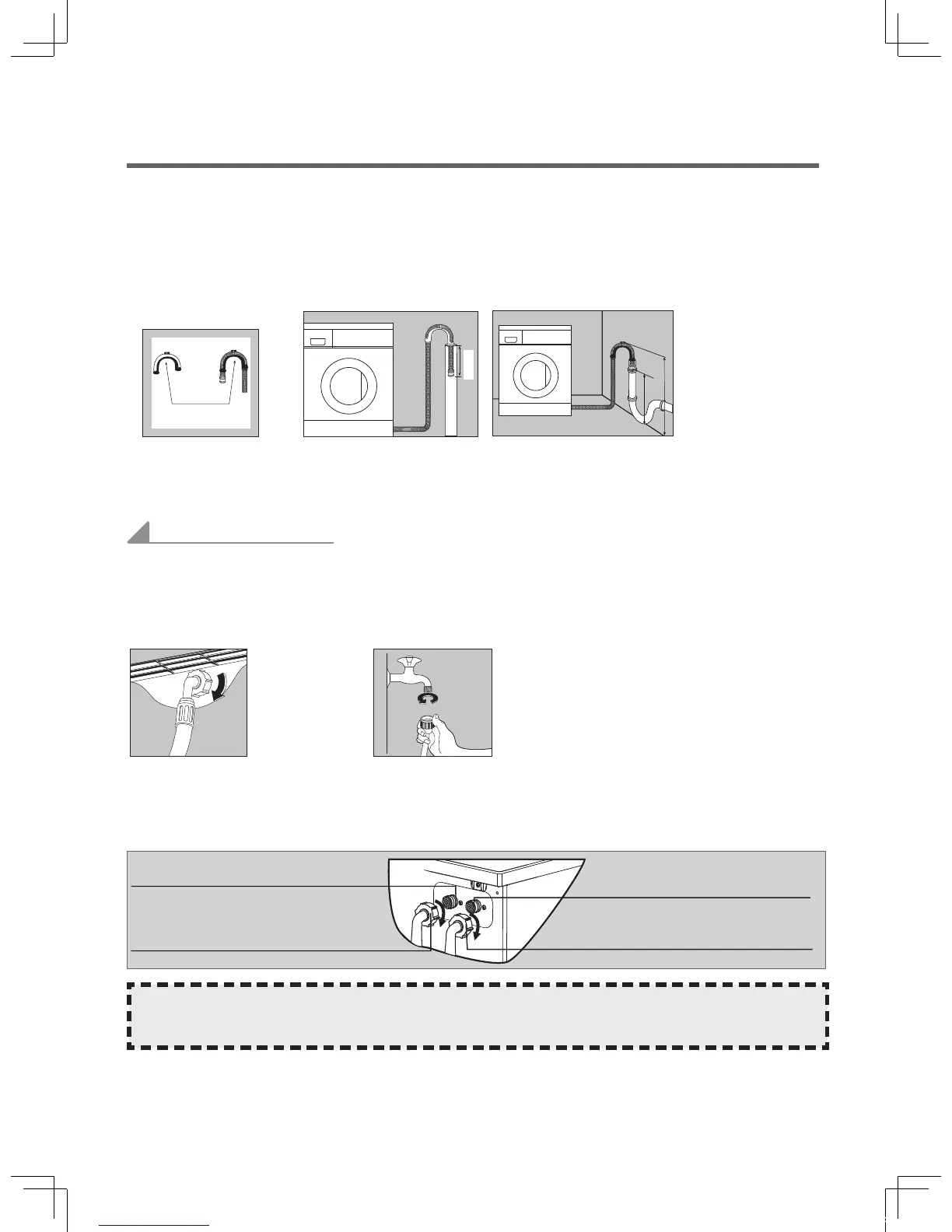

2. Connected securely to a standpipe.
Firstly form a hook in the end of the drain hose using the “U” piece” supplied.
Place the drain hose into your standpipe, which should have an internal diameter of approximately
38mm thus ensuring there is an air break between the drain hose and standpipe. When discharging into
a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above
oor level.
inlet valve for hot water with a red grid
inlet valve for cold water
inlet hose for cold water with a white nut
inlet hose for hot water with a red nut
Water inlet connection
Connect the inlet hose supplied with the machine to a tap with a 3/4” thread.
Do not use previously employed hoses.
Installation should comply with local water authority and building regulations’ requirements.
When there is a inlet valve at the back of the machine, it must be connected to a cold water supply. If
there are two inlet valve, one is connected to a cold water supply and the other is connected to a hot water
supply. Follow the indication of the picture below to complete the connection.
NOTE :
The above diagram is only applicable to models that have hot and cold feeds.
