Non-Pump Model Pump Model

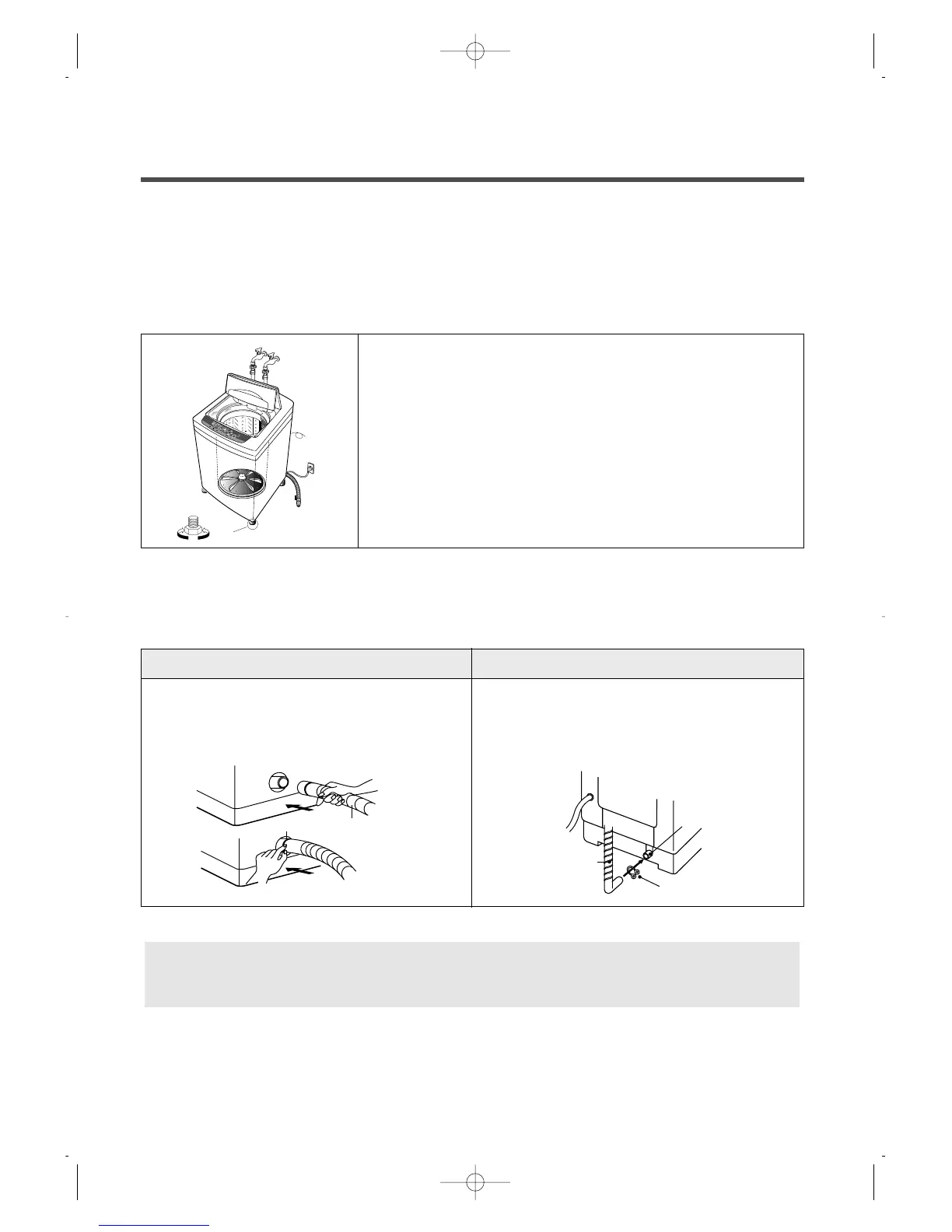

Location of washer
Check location where washer will be installed. Make sure you have everything
necessary for correct installation.
Proper installation is your responsibility.
•Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.
•Install the washer on the horizontal solid floor.
Drain system
Never forget to install drain hose before operating your washer.
The packing box is opened, there are a drain hose, and a hose clamp in the washer.
INSTALLATION INSTRUCTIONS
• Connect the drain hose to the drain outlet
at the back side of the washer, and fasten
it tightly with the clamp attached.
• Connect the drain hose to the drain outlet
at the back side of the washing machine,
and fasten it tightly with the clamp
supplied.
Hose clamp
Drain hose
Hose Clamp
Drain Outlet
Drain hose
If the washer is installed on an unsuitable floor, it could
make considerable noise, vibrate and cause a malfunction.
If washer is not level, adjust the front leg(A) up or down for
horizontal setting.
•Earthed electrical outlet(B) is required with 20cm of
bottom back of washer cabinet.
•Hot and cold water faucets (C) must be within 1M of the
upper back of the washer cabinet and provide water
pressure 0.3kgf/cm
2
-8kgf/cm
2
(2.94N/cm
2
-78.4cm
2
).
C
UP DOWN
A
B
NOTES
• The opening must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.
To Next Page
