5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
12
DIRECTIONS
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning

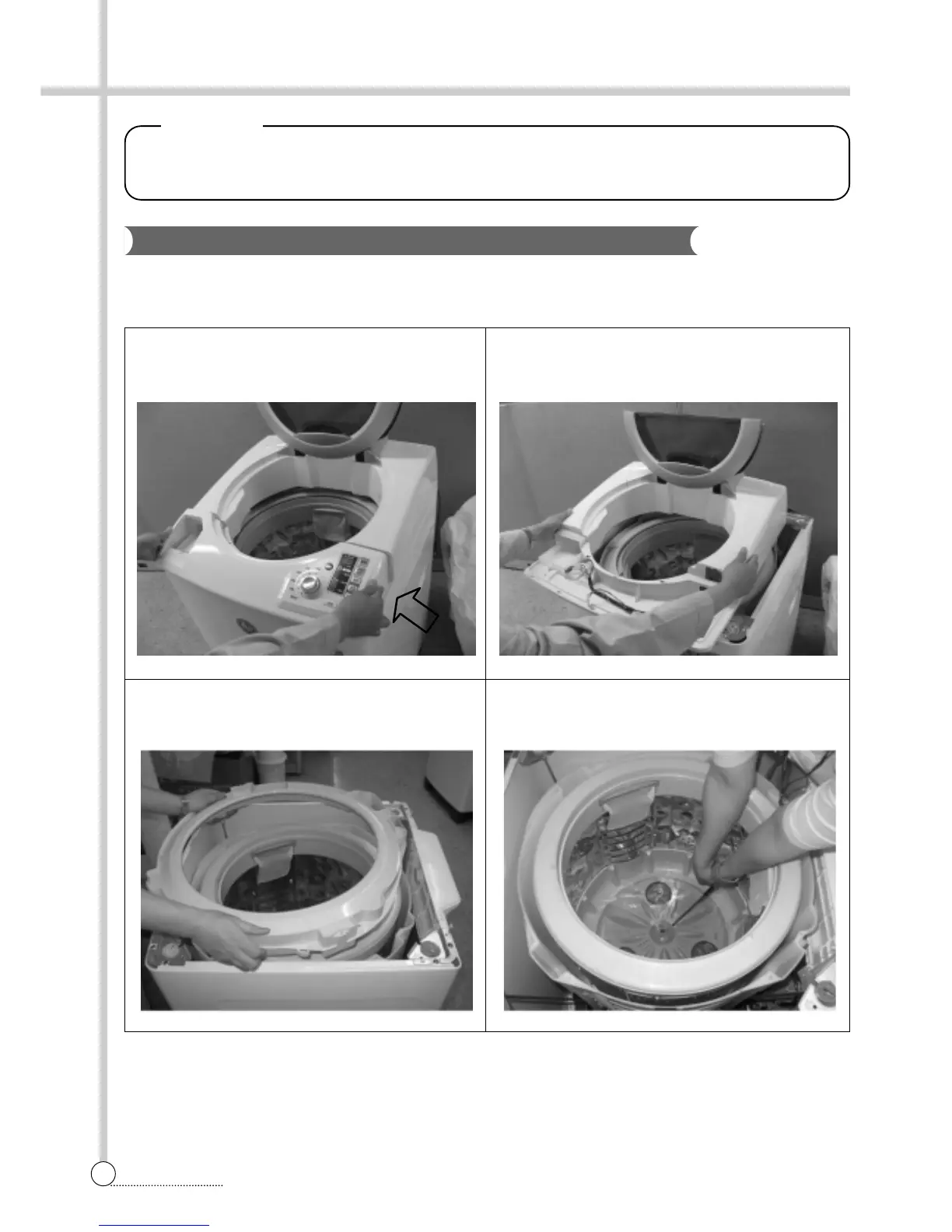

1 Remove CASE DETERGENT and bolt.
2 Separate PANEL F by pushing PANEL F to the left.
4 Unscrew 4 bolts and separates COVER TUB from
TUB ass’y.
3 Remove 4 bolts and separate PLATE T from washing
machine.
5 Remove CAP PULSATOR form PULSATOR using
screw driver.
GEAR MECHANISM ASS’Y REPLACEMENT
To Next Page
