6. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
15

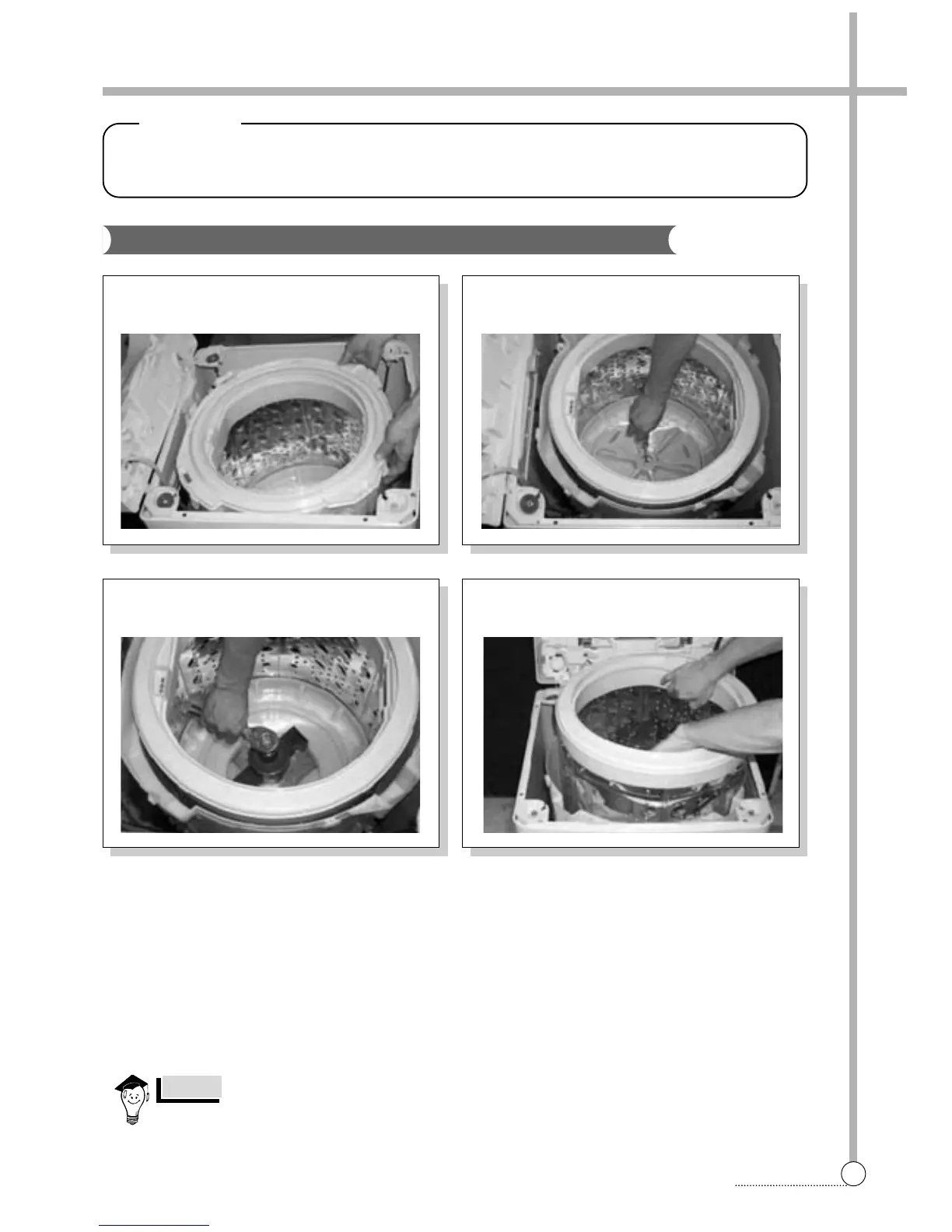

EXPLANATION
● Raise the top plate on the outer cabinet.
● Remove outer tub cover from the tub ass’y.
● Remove the spinner shaft flange nut by using ‘T’
type box wrench.
● Loosen the pulsator mounting screw and remove
the pulsator.
● Remove the tub ass’y.
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCON-
NECT THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning
To assemble the gear mechanism ass’y, reverse
the disassembly procedure.
