7

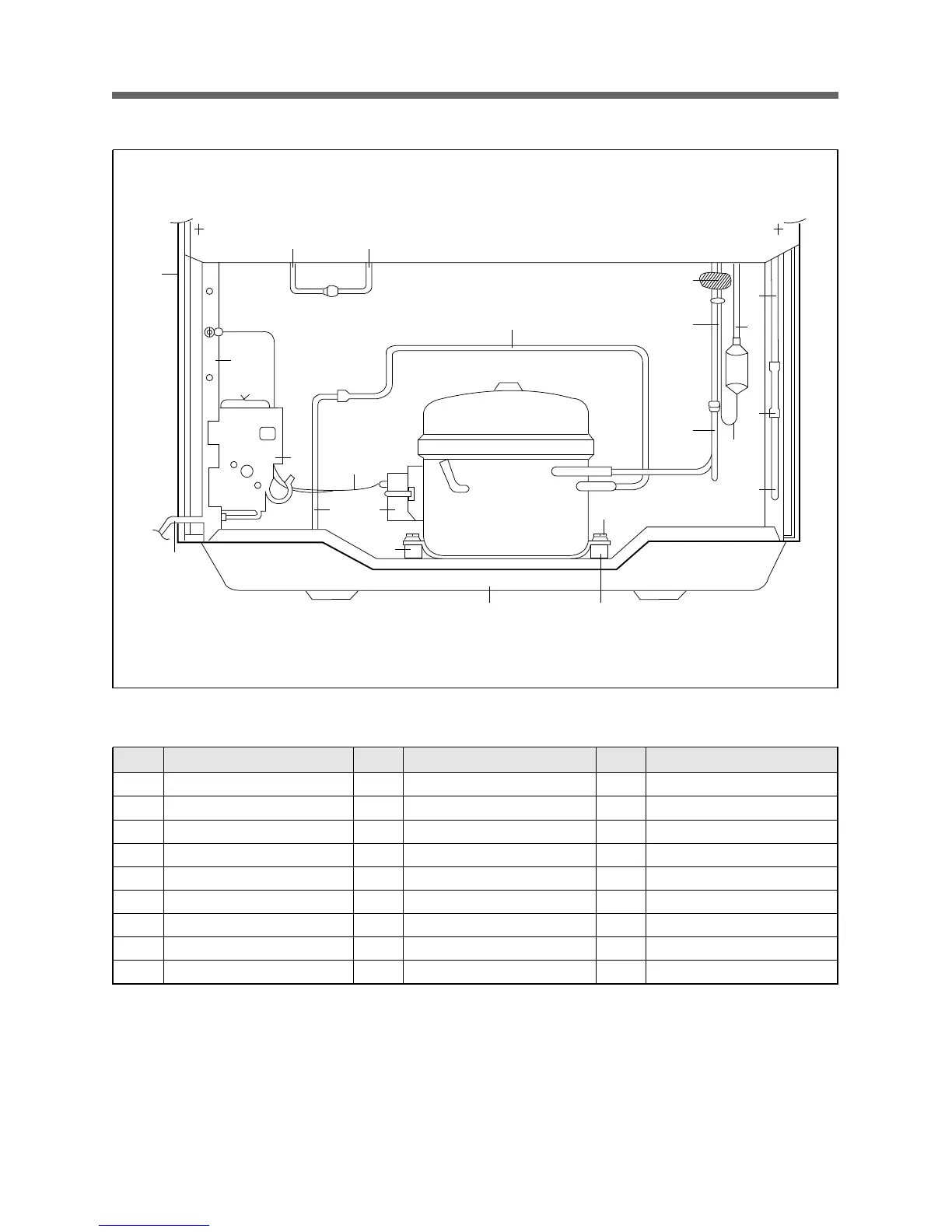

7. MACHINE ROOM VIEW AND PART LIST
7
18 20
14
12
3
1
5
21
15
25
11
2
6
13
10
8
19
16
17
22
23
4
24
NO PART NAME NO PART NAME NO PART NAME
1 BASE COMP 10 POWER BOX AS 19 ENTRANCE OF AUX-CON PIPE
2 FIXTURE BOLT COMP 11 SWITCH P-RELAY AS 20 ENTRANCE OF SIDE PLATE PIPE
3 WASHER 12 POWER CORD 21 ENTRANCE OF HOT PIPE
4 DRYER 13 CABINET URT AS 22 EXIT OF AUX-CON PIPE
5 ABSORBER 14 PIPE CON (PA) 23 EXIT OF SIDE PLATE PIPE
6 COMPRESSOR 15 SUC-PIPE AS 24 CAPILLARY TUBE
7 P-RELAY LEAD WIRE 16 SUC-PIPE CON 25 VIBRATIONPROOF MASS
8 REINFORCE *R 17 PIPE CON
9 REINFORCE *L 18 EXIT OF HOT PIPE
