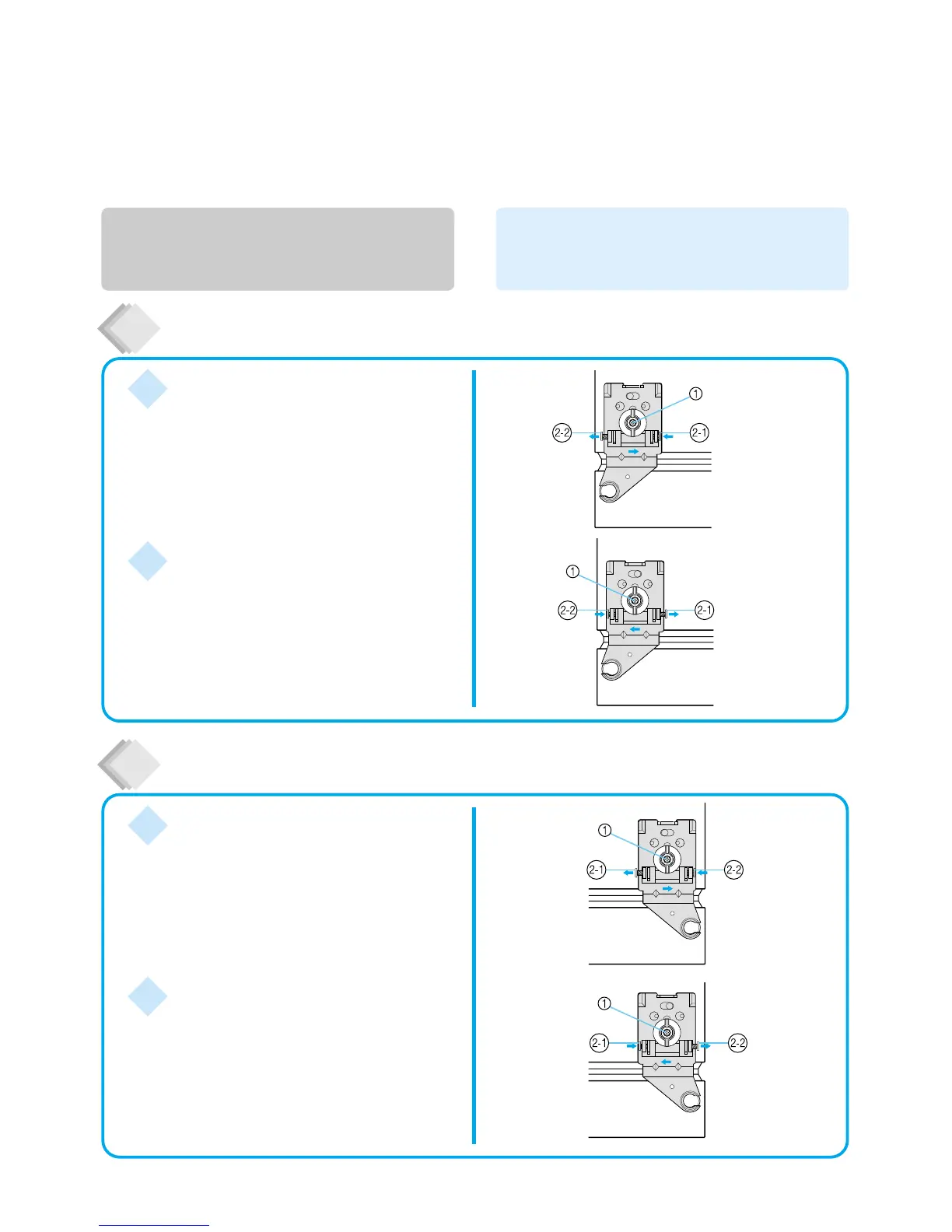

In case top and bottom gap of both doors are not the same, take the following steps to adjust.
(gap beteen the top right edge of feezer door and top left of refrigerator door)
1
First unscrew and remove top hinge
covers.
refer to page 52~53
2
Turn the hinge fastener counterclockwise
2~3 times just to loosen. (Do not remove
the fastener.)
Moving to the right
1)
Loosen the left screw(2-2) enough. (Do not
remove the screw.)
2)
Turn the right screw(2-1) clockwise, then hinge
and top of freezer door moves to the right.
3)
Once the gap is adjusted, fasten the left
screw(2-2) tightly.
Moving to the left
1)
Loosen the right screw(2-1) enough. (Do not
remove the screw.)
2)
Turn the left screw(2-2) clockwise, then hinge
and top of freezer door moves to the left.
3)
Once the gap is adjusted, fasten the right
screw(2-1) tightly.
Adjustment of freezer door
Moving to the right
1)
Loosen the left screw(2-1) enough. (Do not
remove the screw.)
2)
Turn the right screw(2-2) clockwise, then hinge
and top of freezer door moves to the right.
3)
Once the gap is adjusted, fasten the left
screw(2-1) tightly.
Moving to the left
1)
Loosen the right screw(2-2) enough. (Do not
remove the screw.)
2)
Turn the left screw(2-1) clockwise, then hinge
and top of freezer door moves to the left.
3)
Once the gap is adjusted, fasten the right
screw(2-2) tightly.
Adjustment of refrigerator door
