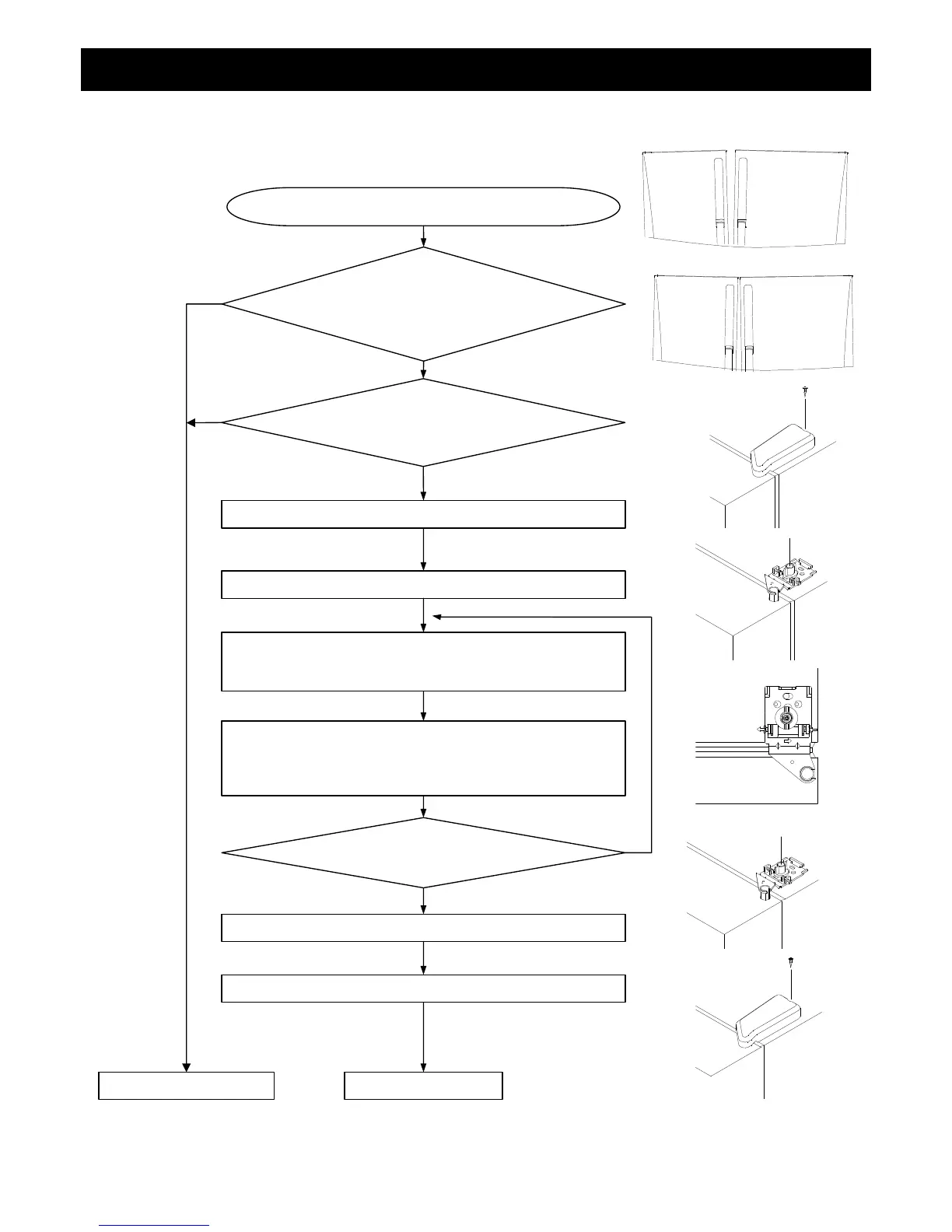

2. Adjusting F/R Door balance and Gap
Failure Checkup & Troubleshooting
2-2) Top and bottom gap between F/R doors are different.
(Refer to User Guide and SVC Manual for details.)
Page 5
Start
Y
Y
Remove top hinge cover screw and hinge cover.
Make hinge fastener loose. (Do not remove it.)
* When top of door is protruded from cabinet over 2.5mm ;
Make hinge screws loosen and adjust door vertical balance.
-> Refer to user’s Guide for detail.
Turn the hinge fastener clockwise tightly.
Top and bottom gap of both doors
are the same ?
Top and bottom gap between F/R
doors are different ?
Top left of F door or top right of R door
is in or out 2.5mm from cabinet line ?
Finish
Y
* When top of door is sunken from cabinet more than 2.5mm ;
Make hinge screws loosen and adjust door vertical balance.
-> Refer to user’s Guide for detail.
Replace top hinge covers and screw them.
N
N
Door gap is balanced.
N
To Next Page
