Removing and replacing Freezer parts
Failure Checkup & Troubleshooting

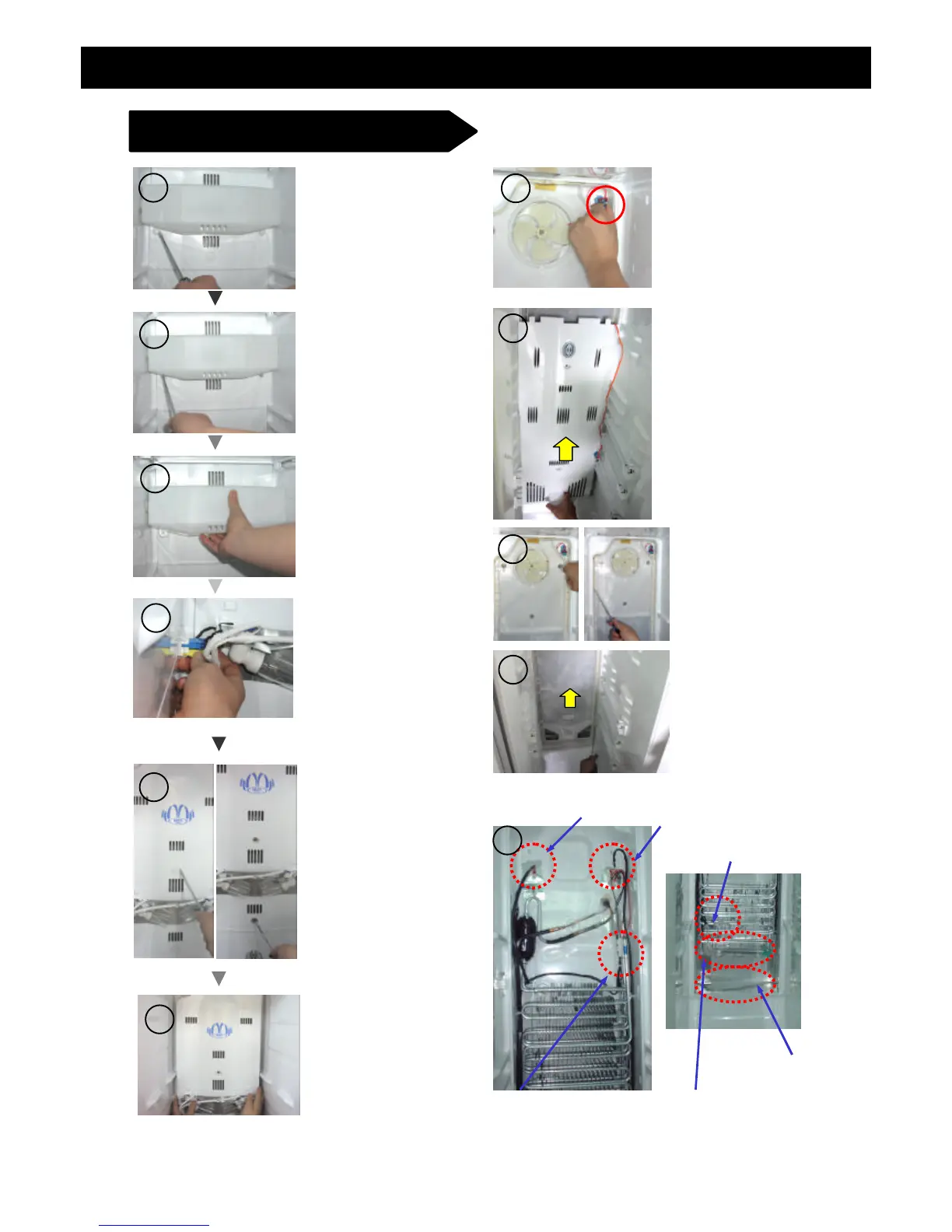

* Remove light cover screws.
* Pull down smoothly the bottom of
light cover to remove.
1) Remove foods and shelves in
Freezer compartment.
2) Remove screw cap with a small tip
driver on the bottom of light cover.
* Remove the left housing.
1) Remove 3 screw caps on the
louver with a flat tip driver.
2) Remove 3 screws.
* Hold both ends and pull forward
slowly.
* Remove the housing.
* Hold the bottom nose of cover
and pull forward out to remove.
1) Remove 3 screws.
2) Push the hook points with a flat
tip driver and pull upward out to
remove.
* Follow the reverse order when
assembling back.
Temp. fuse housing
Pipe heater
1st : Glass heater housing
2nd : Pipe heater housing
3rd : Drain plate heater housing
Glass tube heater
Drain plate heater
Temp. fuse
