Compensation of R-sensor ON/OFF temp. (down)
In case temperature of refrigerator compartment is weak or insufficient,
take the following action.
INPUT CONTROL OBJECT
CONTENTS REMARKS
Main PCB

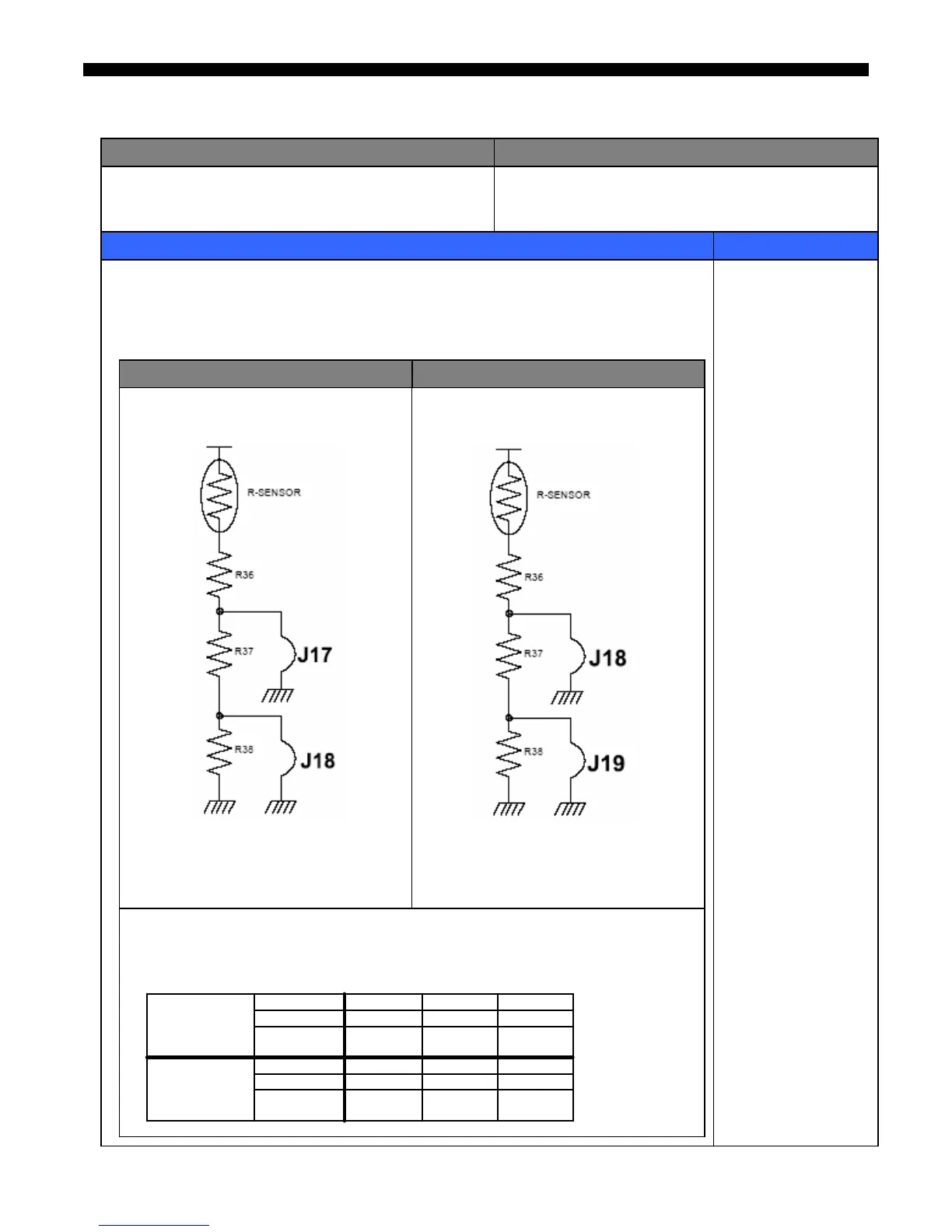

Resistance of R-sensor Mid ON/OFF Point
R36 : R-SENSOR standard resistance in normal mode (31.4K)
R37 : In case of weak ref., cut J17 (or J18) to down the standard resistance by 1.5deg (2K)
R38 : In case of weak ref., cut J18 (or J19) to down the standard resistance by 1.5deg (2K)
4-7. Compensation of R-sensor ON/OFF Point
FRS-2*BD (Basic Model) FRS-2*DD/FD (Dispenser Model)
3C-1.5C0C
Temperature
compensation
cut--J19
cutcut-J18
DISPENSER
MODEL
3C-1.5C0C
Temperature
compensation
cut--J18
cutcut-J17
BASIC MODEL
