Dahua DH-IPC-HFW5831EP-ZE User Manual

1
1 Device Structure
1.1 Device External Cable
Note:
 The following figure is for reference only, which is used to know the function of cable port.
 There are differences about cable structure between different models, please refer to the
actual product for more details.

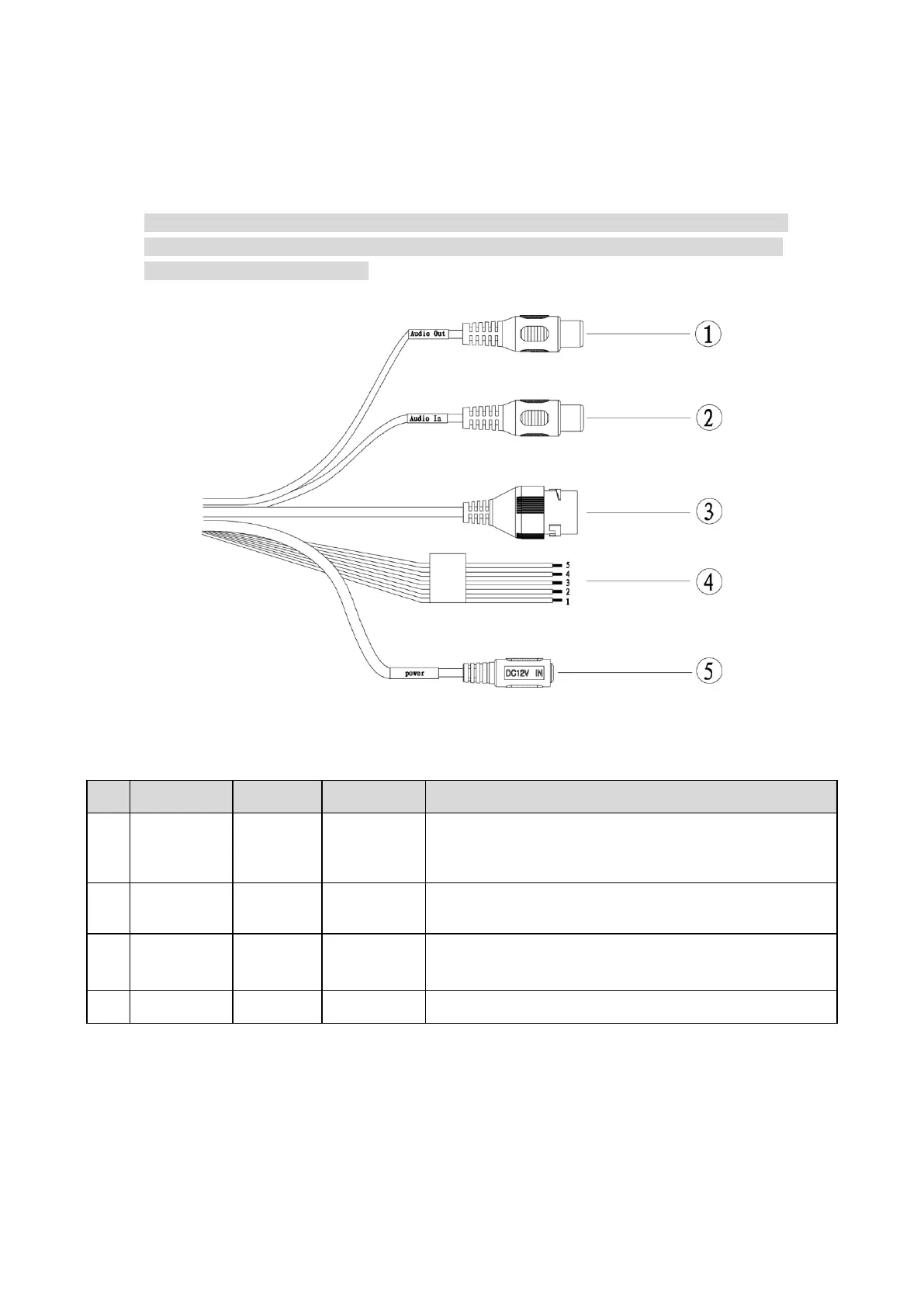

You can refer to the following figure for cable information. See Figure 1-1.
Figure 1-1
Please refer to Table 1-1 for detailed information.
No.
Port Name
Function
Connector
Function Description
1
AUDIO
OUT
Audio
output
port
RCA
Output audio signal to speaker and etc.
2
AUDIO IN
Audio
input port
RCA
Input audio signal, receive analog audio signal from
pick up and etc.
3
LAN
Network
port
Ethernet
port
Connect to standard Ethernet cable.
Note: Some series don’t support PoE.
4
I/O
I/O port
-
Alarm signal input/output.
