Dahua IPC-HFW1100S User Manual

7
2 Framework
2.1 Cable

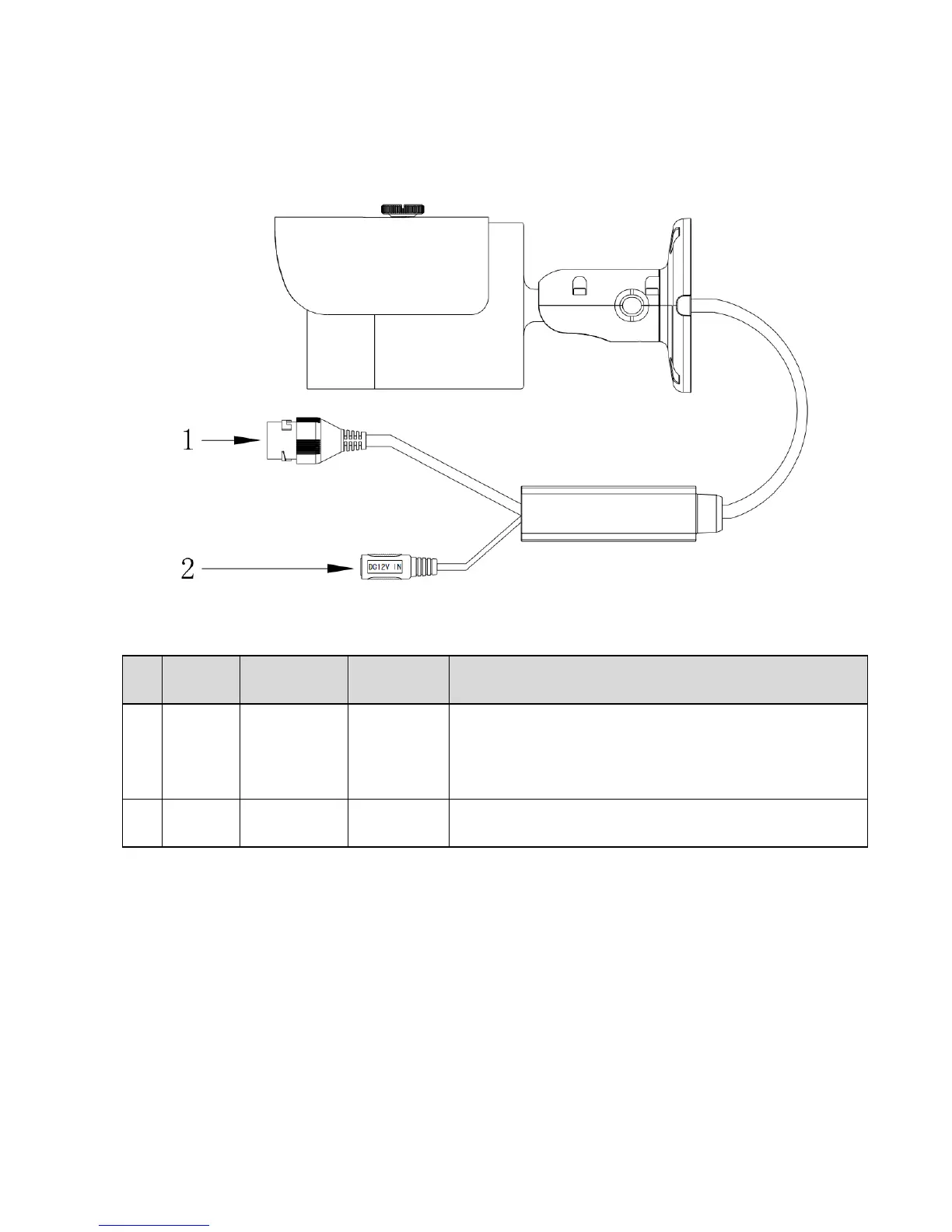

You can refer to the following figure for cable information. See Figure 2-1.
Figure 2-1 Cable
Please refer to the following sheet for detailed information.
No.
Port
Name
Function
Connection
Note
1
LAN
Network port
Ethernet
port
Connect to standard Ethernet cable.
Note: Some devices do not support PoE.
Before making crystal head, pull the anti-dust, waterproof
cover through network cable.
2
DC 12V
Power input
port
/
Power port. Input DC 12V.
2.2 Framework and Dimension
Please refer to the following figure for dimension information. The unit is mm. See Figure 2-2 and
Figure 2-3.
