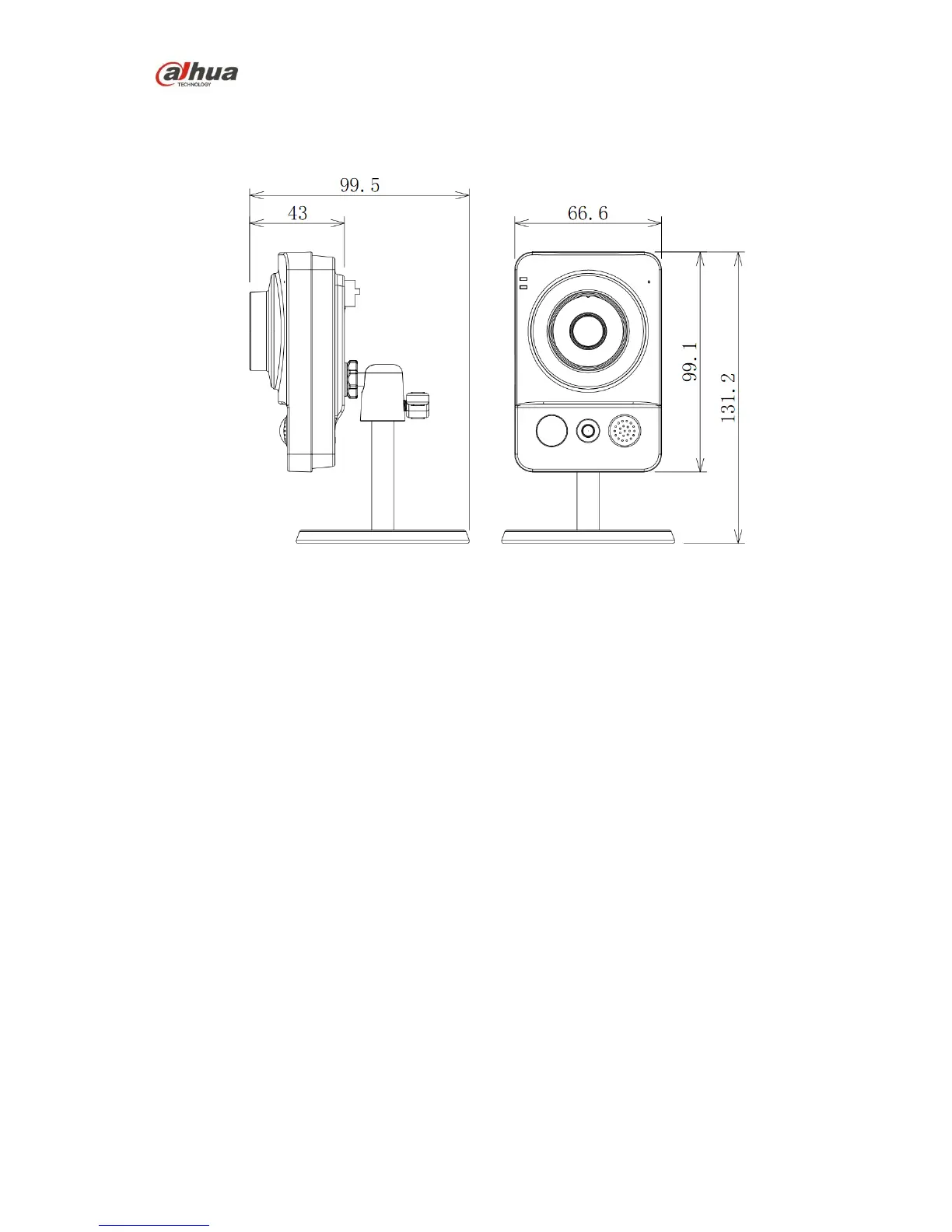

2.2 Dimensions
Please refer to the following figure for dimension information. The unit is mm. See Figure 2-2.
Figure 2-2 Dimension
2.3 Bidirectional talk
2.3.1 Device-end to PC-end
Device Connection
Please connect the earphone to the audio output port in the PC. Login the Web and then click the
Audio button to enable the bidirectional talk function. You can see the button becomes yellow after you
enabled the audio talk function. Click Audio button again to stop the bidirectional talk function.
Listening Operation
Speak or play music at the device-end, you can use the earphone or the sound box of the PC-end to
listen the audio information from the device-end.
2.3.2 PC-end to the Device-end
Device Connection
Connect the speaker or the MIC to the audio input port in the PC. Login the Web and then click the
Audio button to enable the bidirectional talk function. You can see the button becomes yellow after you
enabled the audio talk function. Click Audio button again to stop the bidirectional talk function.
Listening Operation
Speak or play music at the PC-end, you can use the built-in speaker of the device-end to listen.
Note
Please go to the Master Volume interface of the PC to set first if you want to use the dual-way
bidirectional talk. Please select Front Mic mode in the record control interface. (You can select
microphone enhanced in Advanced interface if the audio is too low.)
