Indoor Unit SiUS121827E

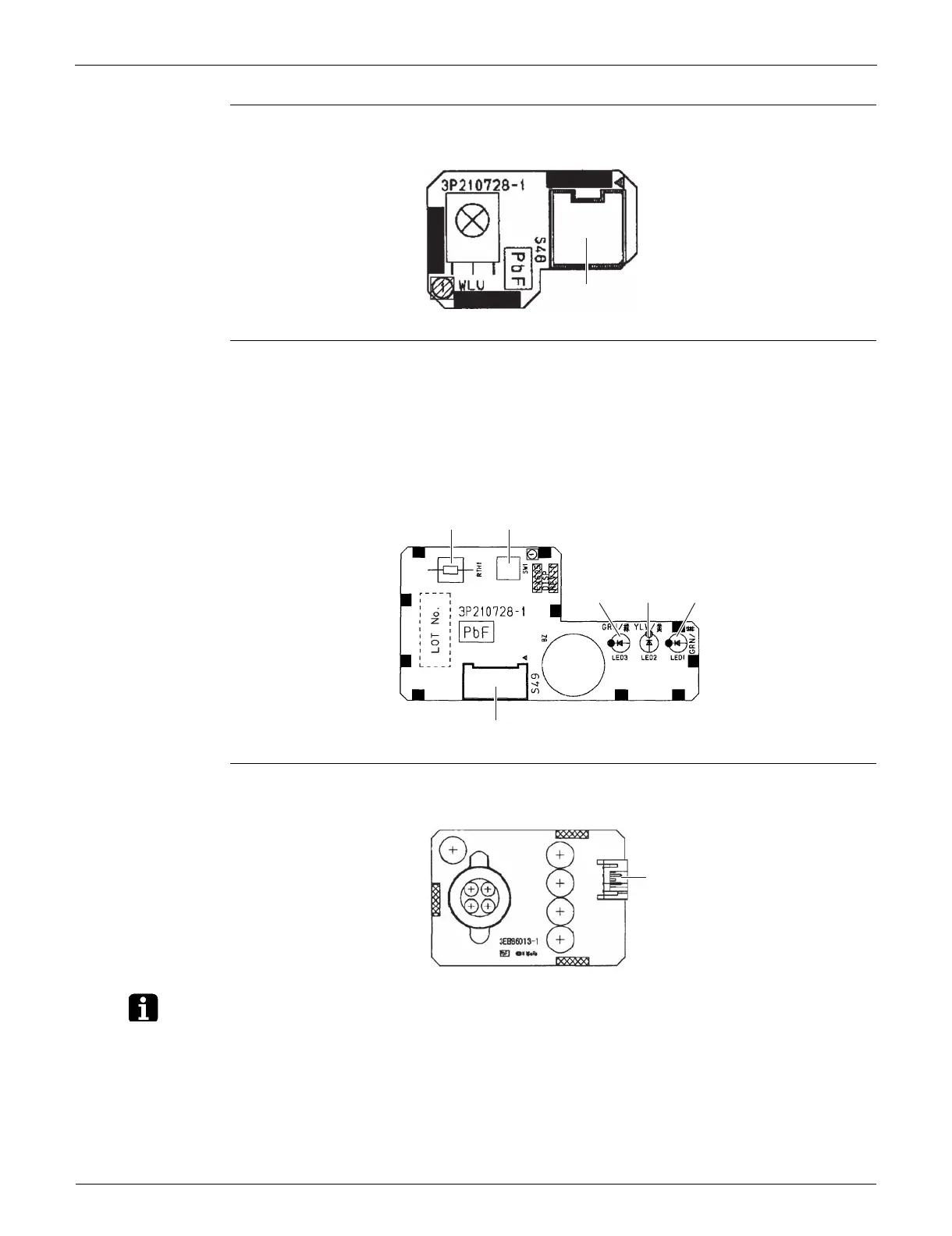

40 Part 3 Printed Circuit Board Connector Wiring Diagram
Signal Receiver
PCB (PCB2)
Display PCB
(PCB3)
INTELLIGENT
EYE Sensor PCB
(PCB4)
The symbols in the parenthesis are the names on the appropriate wiring diagram.
1) S48 Connector for control PCB (PCB1)
1) S49 Connector for control PCB (PCB1)
2) SW1 Indoor unit ON/OFF switch
3) LED1 (H1P) LED for operation (green)
4) LED2 (H2P) LED for timer (yellow)
5) LED3 (H3P) LED for INTELLIGENT EYE (green)
6) RTH1 (R1T) Room temperature thermistor
3P210728-1
RTH1 SW1
LED3 LED2 LED1
S49
1) S26 Connector for control PCB (PCB1)
To Next Page
