Daikin 4MXM80N2V1B9 Installation Manual

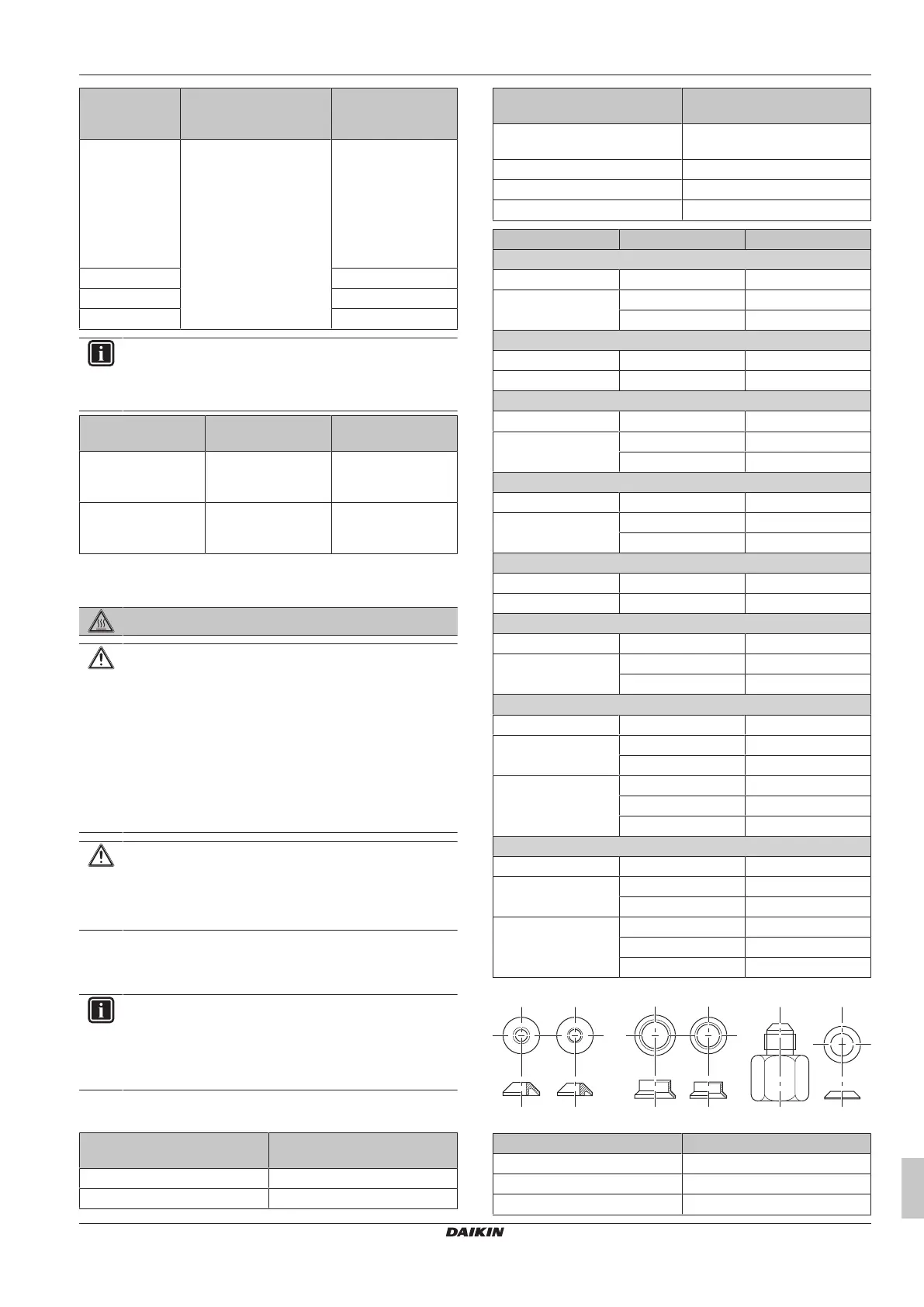

5 Piping installation
Installation manual
15
2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM
R32 Split series
3P600450-1G – 2021.03
Outdoor unit Refrigerant piping
length to each indoor
unit
Refrigerant piping
total length
2MXM68,
3MXM40,
3MXM52,
3AMXM52,
3MXM68,
3MXF52,
3AMXF52,
3MXF68,
≤25m ≤50m
4MXM68 ≤60m
4MXM80 ≤70m
5MXM90 ≤75m
INFORMATION
In case of combination of the outdoor unit 3MXM40N8 or
3MXM52N8 with the indoor units CVXM-A and/or FVXM-A,
the total liquid refrigerant piping length MUST be ≤30m.
Height difference
outdoor-indoor
Height difference
indoor-indoor
Outdoor unit installed
higher than indoor
unit
≤15m ≤7.5m
Outdoor unit installed
lower than at least 1
indoor unit
≤7.5m ≤15m
5.2 Connecting the refrigerant piping
DANGER: RISK OF BURNING/SCALDING
CAUTION
▪ No brazing or welding on site for units with R32
refrigerant charge during shipment.
▪ During installation of the refrigeration system, joining of
parts with at least one part charged shall be performed
taking into account the following requirements: inside
occupied spaces non permanent joints are not allowed
for R32 refrigerant except for site made joints directly
connecting the indoor unit to piping. Site made joints
directly connecting piping to indoor units shall be of non
permanent type.
CAUTION
Do NOT connect the embedded branch piping and the
outdoor unit when only carrying out piping work without
connecting the indoor unit in order to add another indoor
unit later.
5.2.1 Connections between outdoor and indoor
unit using reducers
INFORMATION
▪ For the DHW generator for Multi use the same reducer
as for the 20 class indoor unit.
▪ For the Hybrid for Multi, see the indoor unit installation
manual for the capacity class and applicable reducer.
Total indoor unit capacity class that can be connected to this
outdoor unit:
Outdoor unit Total indoor unit capacity
class
2MXM68 ≤10.2kW
3MXM40 ≤7.0kW
Outdoor unit Total indoor unit capacity
class
3MXM52, 3AMXM52, 3MXF52,
3AMXF52
≤9.0kW
3MXM68, 4MXM68, 3MXF68 ≤11.0kW
4MXM80 ≤14.5kW
5MXM90 ≤15.6kW
Port Class Reducer
2MXM68
A (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
B (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
3MXM40
A (Ø9.5mm) 15, 20, 25, 35 —
B + C (Ø12.7mm) 15, 20, 25, 35 2+4
3MXM52, 3AMXM52
A (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
B + C (Ø12.7mm) 15, 20, 25, 35 2+4
42, 50 —
3MXM68
A (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
B + C (Ø12.7mm) 15, 20, 25, 35, 42 2+4
50, 60 —
3MXF52, 3AMXF52, 3MXF68
A (Ø9.5mm) 20, 25, 35 —
B + C (Ø12.7mm) 20, 25, 35 2+4
4MXM68
A + B (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
C + D (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
4MXM80
A (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
B (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
C + D (Ø15.9mm) 15, 20, 25, 35, (42)
(a)
5+6
42, 50, 60 1+3
71 —
5MXM90
A + B (Ø9.5mm) 15, 20, 25, 35, (42)
(a)
—
C (Ø12.7mm) 15, 20, 25, 35, (42)
(a)
2+4
42, 50, 60 —
D + E (Ø15.9mm) 15, 20, 25, 35, (42)
(a)
5+6
42, 50, 60 1+3
71 —
(a)
Only in case of connection with FTXM42R.
1 2 3 4 5 6
Reducer type Connection
1 Ø15.9mm → Ø12.7mm
2 Ø12.7mm → Ø9.5mm
3 Ø15.9mm → Ø12.7mm
