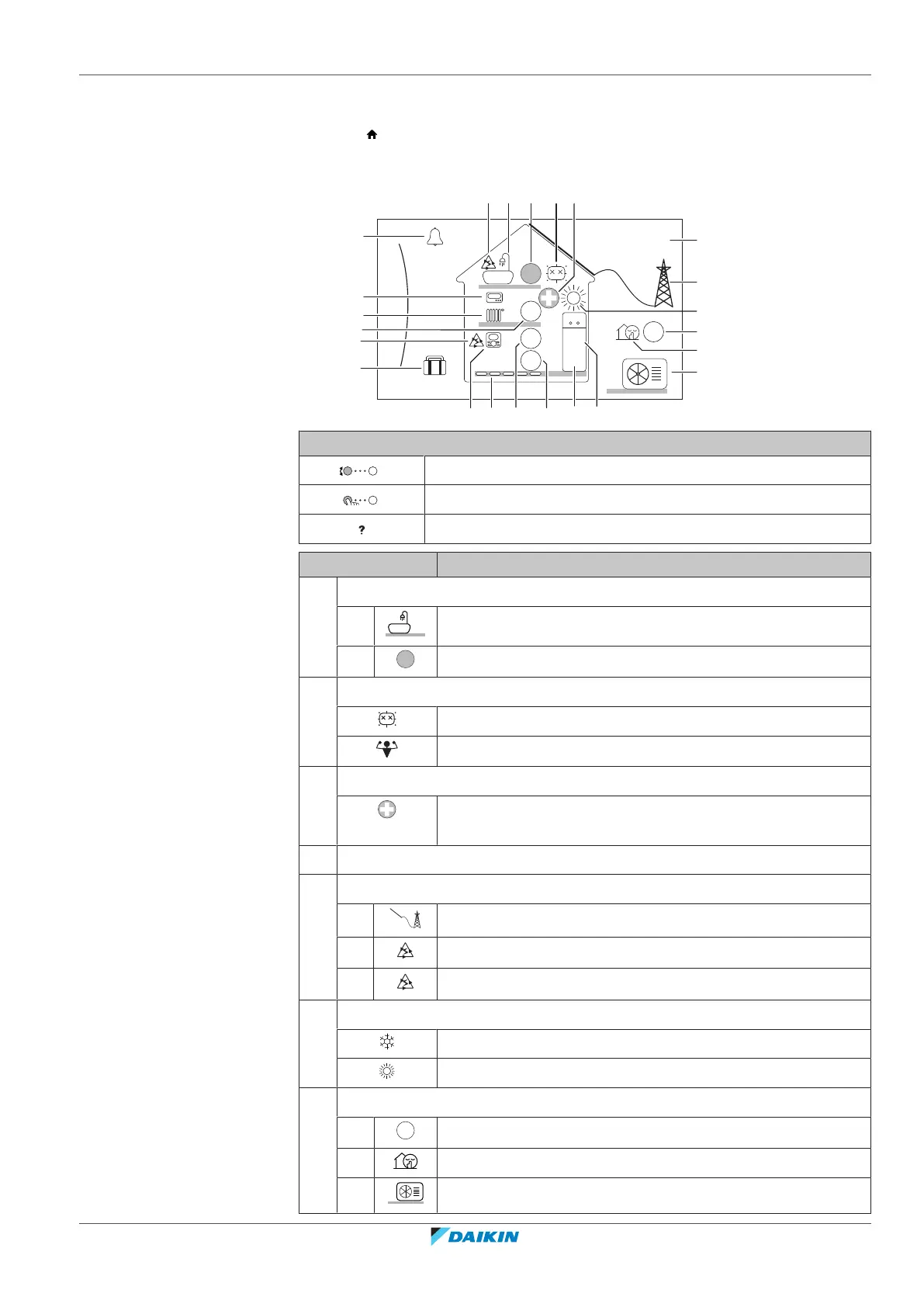

4.3.1 Home screen
Press the button to go back to the home screen. You see an overview of the unit
configuration and the room and setpoint temperatures. Only symbols applicable
for your configuration are visible on the home screen.
6
1.6
bar
26 Feb 2019
22:19
55
21
45
j
e2
l
k1
k2
k3
18
d
e1
g3
g2
h1
g1
f
i2 i3 i4 h2i1
a2a1e3 b c
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
Item Description
a Domestic hot water
a1 Domestic hot water
a2
55
Measured tank temperature
(a)
b Disinfection / Powerful
Disinfection mode active
Powerful operation mode active
c Emergency
Heat pump failure and system operates in Emergency mode
or heat pump is forced off.
d Current date and time
e Smart energy
e1 Smart energy is available via solar panels or smart grid.
e2 Smart energy is currently being used for space heating.
e3 Smart energy is currently being used for domestic hot water.
f Space operation mode
Cooling
Heating
g Outdoor / quiet mode
g1
6
Measured outdoor temperature
(a)
g2 Quiet mode active
g3 Outdoor unit
