Daikin BRC1E51A7 Installation Manual

4 English

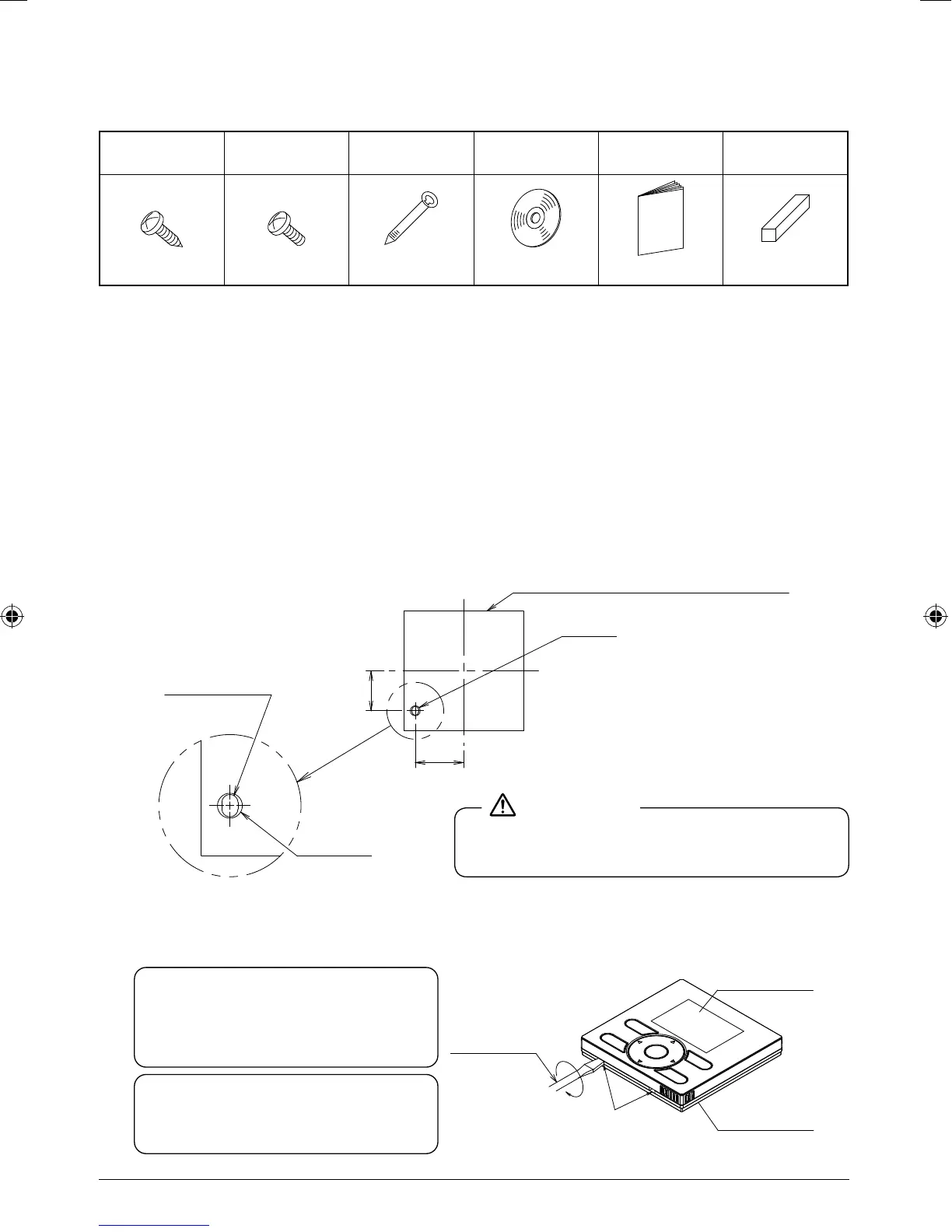

Accessories2.
The following accessories are included.
Wood screw Small screw Clamp Manual CD
Quick
Reference
Wiring retainer
(φ3.5×16)
(M4×16)
(2 pcs.) (2 pcs.) (1 pc.) (1 pc.) (1 pc.) (1 pc.)
Remote controller installation 3.
procedure
Determine where to install the remote controller.3-1
Make sure to follow “ 1. Safety Precautions” when determining the location.
Make a wiring through hole on the wall if the wires are taken 3-2
out from the back side.
Set the center of the wall hole
to the center of the wiring thro
ugh hole on the controller
lower case when making the
hole.
F8-10
External view of the remote controller
Through
hole
F8-10
Lower case
Through hole
48.5
40
Remove upper case. 3-3
Insert a screwdriver in the recess of lower case to remove the upper case (2 points).
Upper case
Lower case
Screwdriver
Insert and twist the screwdriver
lightly for removal.
Remote controller PC-board is
installed on the upper case. Take care
not to damage the PC-board with the
screwdriver.
Take care that dust or moisture does
not touch the PC-board of removed
upper case.
If the hole size is too large or the location is not
proper, the hole may come out from the controller.
CAUTION
