Names and Functions
Home screen
30 ˚C
28
OFF
b
a
h
g
f
j
k
i
c
d
e
l
Information screen
12:34
A3-01 (Unit 00)
q
n
p
o
m
Icon view
12:34
30
˚C
32
˚C
1050
PPM
A3-01 (Unit 00)
q
n
p
r
m
Sensor view
User menu/Administrator menu
s
User menu
s
Administrator menu
* The Bluetooth® word mark and logos are registered trademarks
owned by the Bluetooth SIG, Inc. and use of such marks by
Daikin industries, LTD. is under license. Other trademarks and
trade names are those of their respective owners.

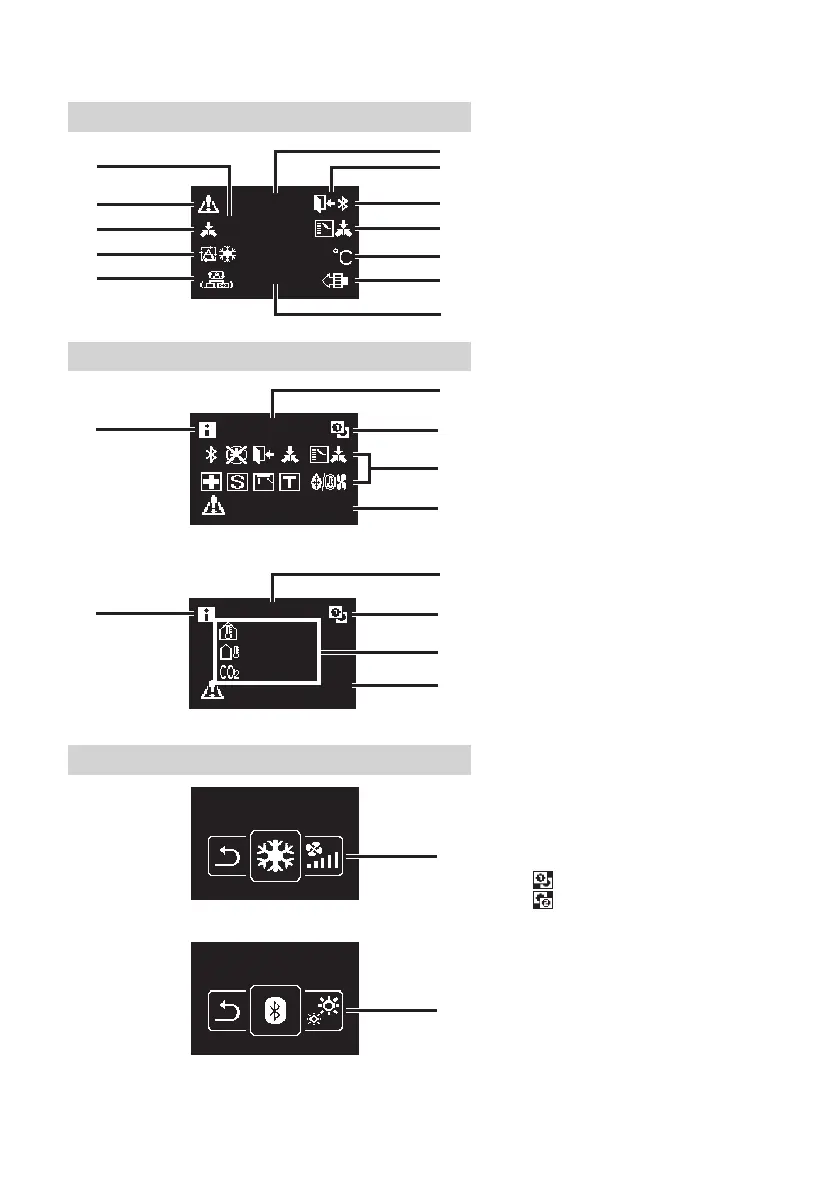

Screen display explanation
a OFF
• Displayed when operation is stopped.
b Error/Filter/Test/Streamer icon
• Error, lter, test and streamer icons
are displayed.
• The streamer icon is displayed
when Mold Proof operation is active.
c Centralized Control
• Displayed when under centralized
management.
d Operation mode
• Displays the current operation mode.
e Ventilation mode
f Room temperature
• Displays the current room temperature.
g Setback
• Blinks during setback operation.
• Displayed during setback setting.
h Bluetooth*
• Indicates that the controller is
communicating with a mobile
device, for use with the app.
i Changeover Under Control
• Displayed when controller is
unauthorized to select heating/
cooling operation.
j Fahrenheit/Celsius
• Depending on the setting, Fahrenheit/
Celsius display can be selected.
k Air Purifying
l Set temperature
• Displays setpoint temperature.
m Clock (24 hours time display)
n
MAIN/SUB remote controller sign
•
: Main controller
: Sub controller
o Status
• Noties the status.
p Error display
• If an error occurs, the icon, an error
code and unit number are displayed.
q Information icon
r Sensor values
• If there are no sensors, a horizontal
bar (“–”) is displayed.
s Settings menu icon
