InsTallaTIon
www.DaikinApplied.com 9 IOM 1266-2 • MAGNITUDE
®
MODEL WME CHILLERS
Long Term Storage
This information applies to new units being stored waiting
for startup or to existing units that may be inoperative for an
extended period of time.
The chiller must be stored in a dry location indoors and
protected from any damage or sources of corrosion. A
Daikin Applied service representative must perform an
inspection and leak test of the unit on a minimum quarterly
schedule, to be paid by the owner or contractor. Daikin
Applied will not be responsible for any refrigerant loss during
the storage time or for repairs to the unit during the period of
storage, or while moving the unit from the original location to
a storage facility and back to any new installation location. If
there is concern about the possibilities of damage and loss
of charge during storage, the customer can have the charge
removed and stored in recovery cylinders.
CAUTION
If the ambient temperature of the storage location is expected
to exceed 113°F (45°C), then the refrigerant must be removed.
For additional tasks required, contact Daikin Applied service.
Clearance
The unit must be placed in an area that allows for adequate
clearance around the unit. See Figure 6 for clearance
requirements around the sides of the chiller. Doors and
removable wall sections can be utilized to meet these
clearance requirements. There must be a minimum 3-foot
clearance above the top of the chiller. The U.S. National
Electrical Code
®
(NEC) or local codes can require more
clearance in and around electrical components and must be
checked for compliance.
Mounting
The unit must be mounted on a concrete or steel base. Make
sure that the oor or structural support is adequate to support
the full operating weight of the complete unit.
The neoprene vibration pads (shipped loose in the power
panel) should be placed under the corners of the unit (unless
the job specications state otherwise). They must be installed
so that they are ush with the edges of the unit feet.
It is not necessary to bolt the unit to the mounting slab or
framework. Should this be required by local codes, 1-1/8 inch
(1.125 inch, 28.5 mm) mounting holes are provided in the unit
supports at the four corners. When mounted, the base pad of
the unit must be level to within ± 1/2 inch (0.5 inch,12.7 mm)
across the length and width of the unit.

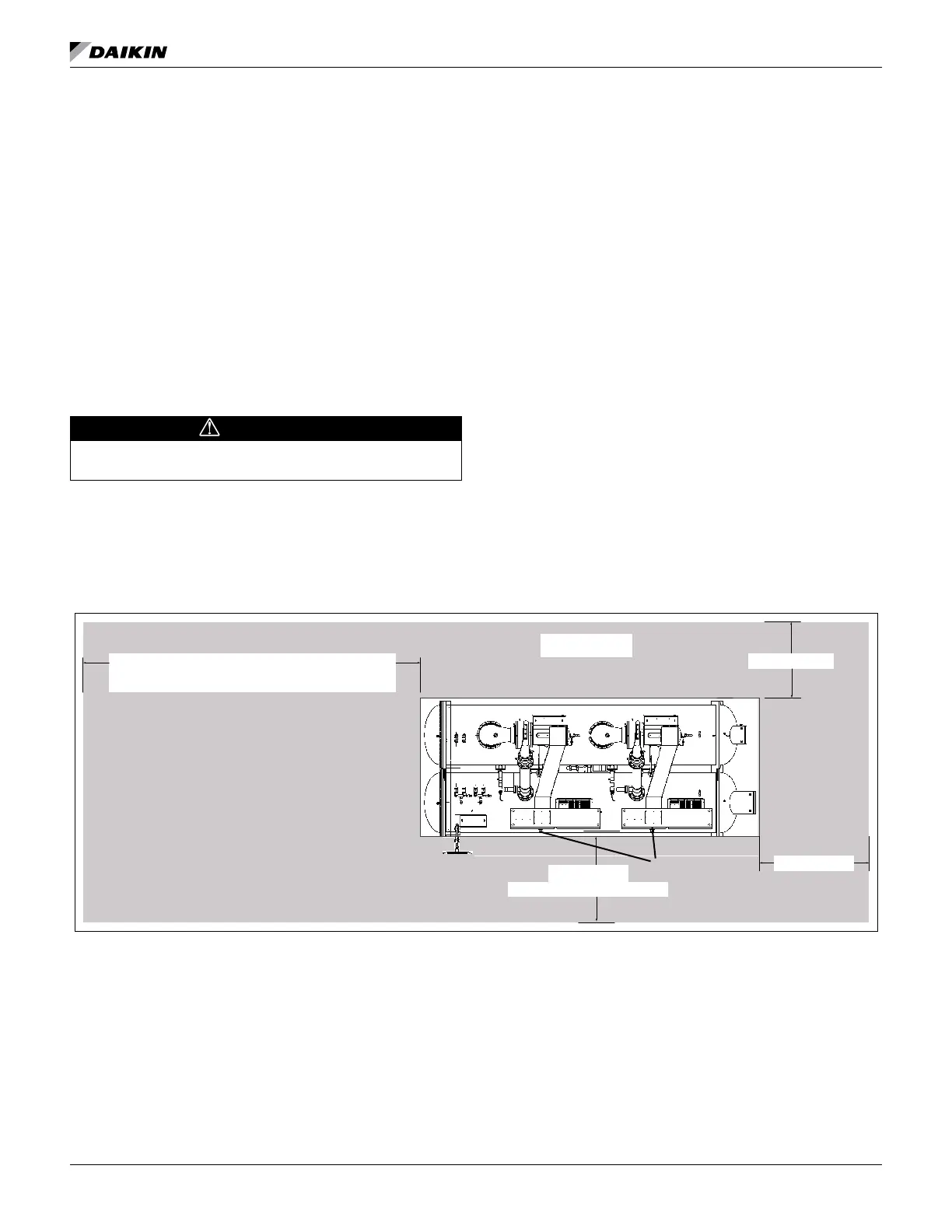

Figure 6: Minimum Clearances Based on Standard Waterboxes
Drawing Notes
1. Final connections must allow for +/- 1/2 inch (0.5 inch,
12.7 mm) manufacturing tolerances.
2. 1.00-inch FPT (25.4 mm) evaporator and condenser
relief valves must be piped per ANSI/ASHRAE 15. See
“Relief Valves” on page 20 for more information.
3. Minimum Clearances (See Figure 6):
• Check local codes for any additional clearance
requirements.
• Installation layout should be designed by qualied
personnel familiar with local codes.
• Hinged type waterboxes may require more clearance.
Consult a Daikin Applied representative for details.
4. Unit shown has standard right-hand water connections.
Left-hand connections are available for either vessel. For
right hand evaporator, the inlet and outlet nozzles are
reversed. ANSI-anged nozzle connections are available
upon request. When using ANSI-anged connections,
add 0.5 inch (13 mm) to each anged end.
Duals-Minimum 17’ Clearance on one end for tube service (Models WME 092 to 106)
Singles-Minimum 13’ Clearance on one end for tube service (Models WME 092 to 106)
WME TOP VIEW
Minimum 3’ Clearance
Minimum 3’ Clearance
Minimum 4’ Clearance
in front of control boxes and electrical panels
Power panel entry
points.
