Photocatalytic Air Purifiers
49
SiBE81-623A
Removal Proced
ure
Procedure
Points

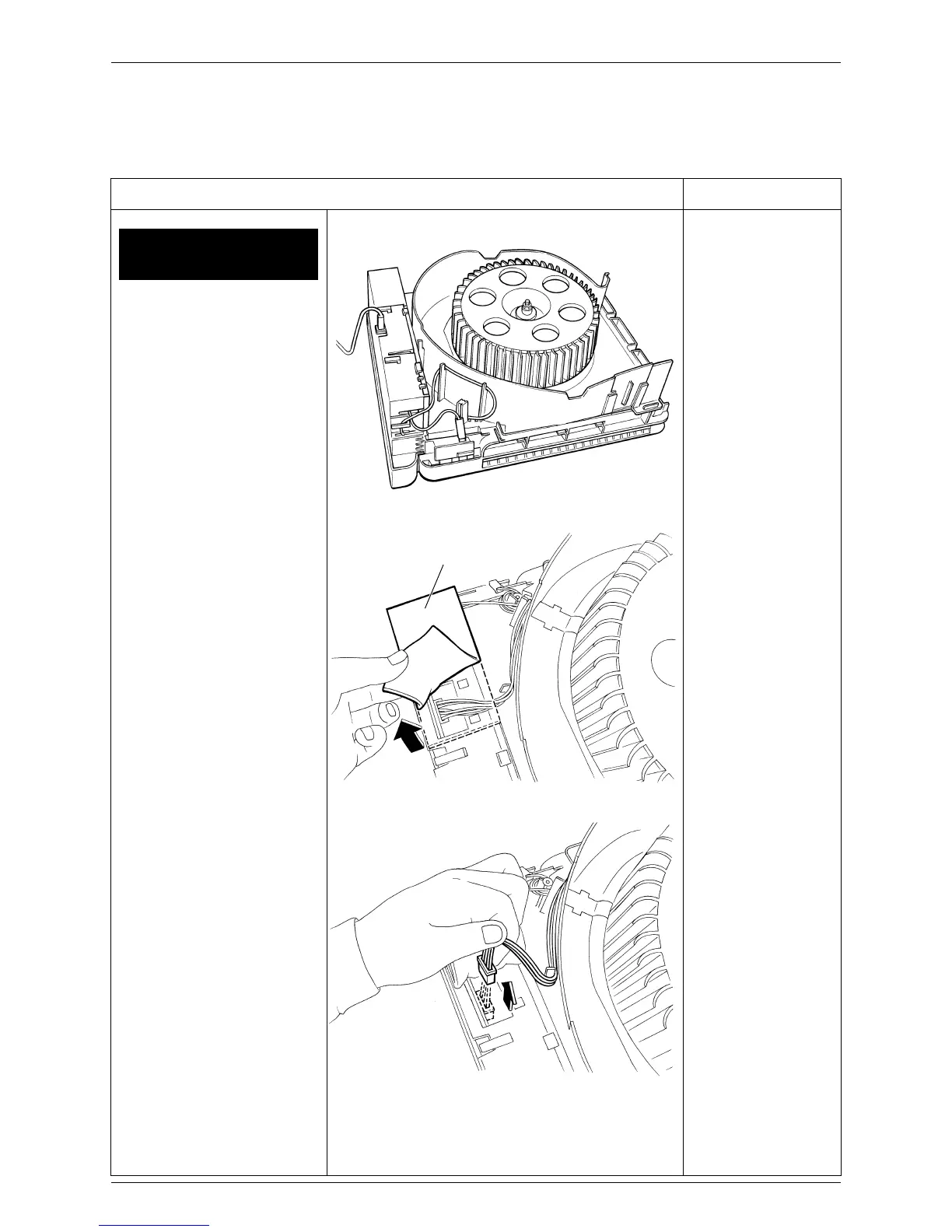

2. Removing the fan
motor
(1) The figure shows the
wiring routes.
(2) Peel the seal
material.
* Once removed, the seal
material cannot be
reused.
(3) Disconnect the fan
motor connectors.
Seal material
49
