Photocatalytic Air Purifiers
51
SiBE81-623A

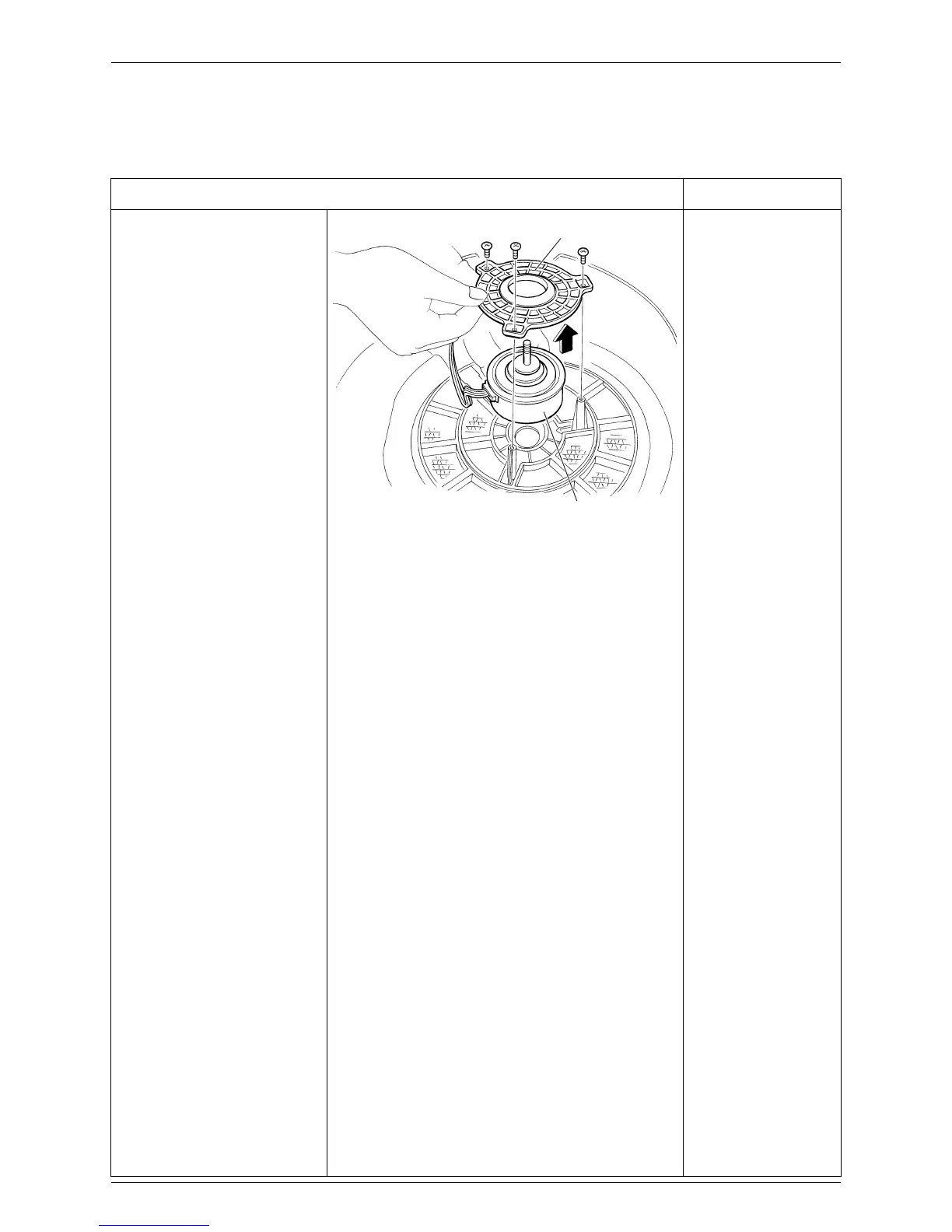

Removal Proced
ure
Procedure
Points
(7) Remove the 3 screws
from the lock plate
and take out the fan
motor
.
* The motor and the har-
ness are integrated
together
.
* Make sure no washers
are left behind the fan.
Lock plate
F
an motor
51
53
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
3
2 Precautions for Use
9
Required Conditions
9
Applicable Room Area
9
3 Specifications
10
Dimensions
11
Wiring Diagram
12
Packaging Drawing
13
4 Operation Manual
14
Safety Precautions
14
Names and Operation of each Part
15
Main Unit Display
16
Preparation before Operation
17
How to Operate
19
Care and Cleaning
20
Sensitivity Settings of the Dust Sensor
27
Troubleshooting
28
5 Optional Accessories
29
Dimensions
29
6 Troubleshooting
30
Basic Inspection
30
Troubleshooting
31
7 Removal Procedure
36
Removal of the Front Panel / Filters
36
Removal of Streamer Electric Discharge Unit
45
Removal of Lonizing Wire
47
Removal of Fan Motor
49
Removal of Electrical Box / PCB
53
