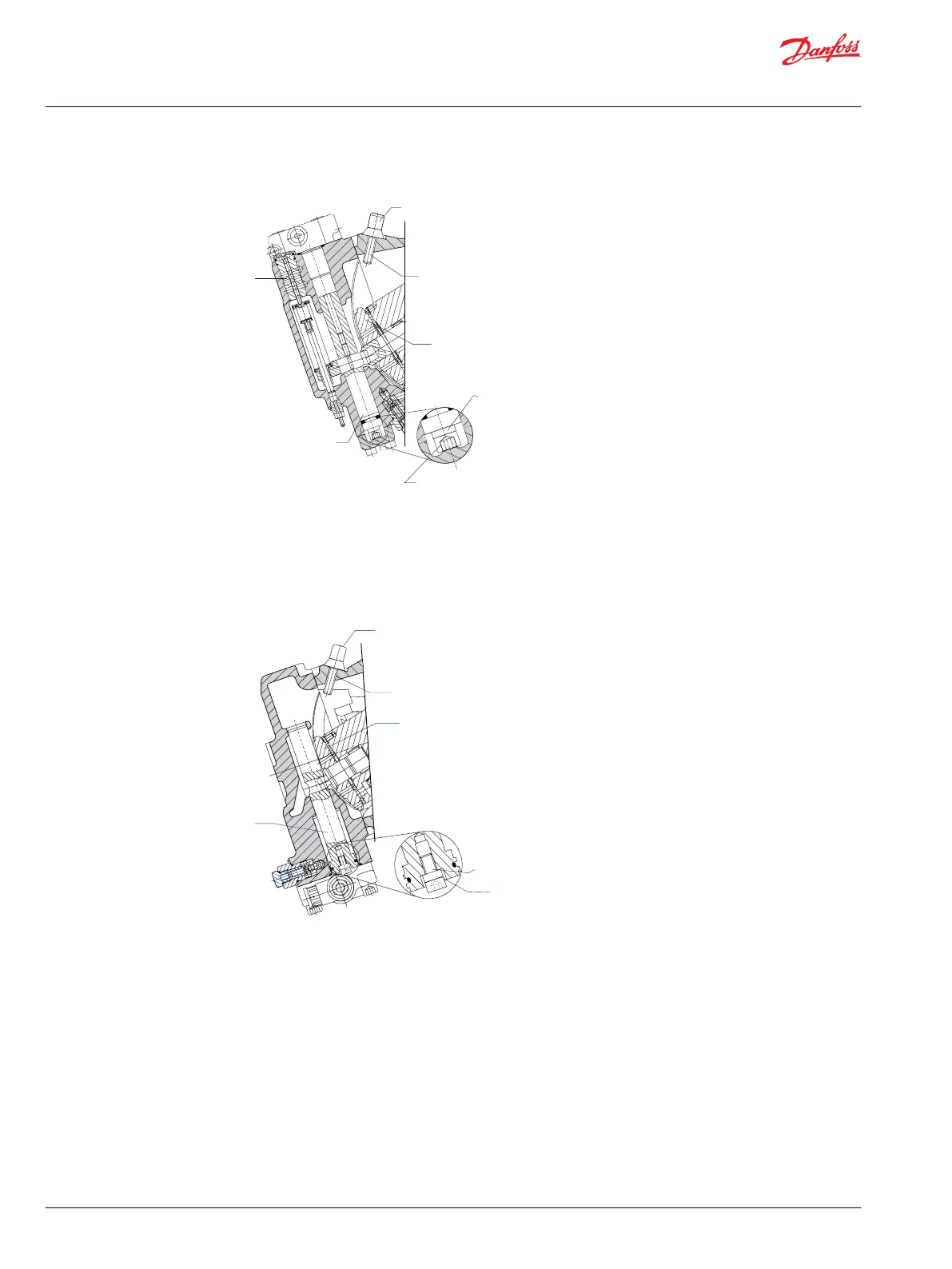

Displacement limiters Series 51
Tamper resistant
cap
Servo piston
Minimum
displacement
limiter
Valve segment
Spacer
Maximum
displacement
limiter
4-way
valve
P101 195E
The maximum displacement of the motor is set by a screw and spacers installed on the end of the servo
piston. The minimum displacement of the motor is set by an adjustable stop in the motor housing.
Displacement limiters Series 51-1
Tamper
resistant cap
Minimum
displacement limiter
Valve segment
Servo
piston
Spacer
Maximum displacement limiter
P101 196E
See Adjustments on page 32, for available setting ranges.
Mounting configurations
Series 51 and Series 51-1 motors are available in three mounting configurations. They are designated by
the letters V, C, or D following the number 51 in the model code. The designations represent:
•
V = SAE C, D, or E mounting flange
•
C = Cartridge style mounting
•
D = DIN ISO 3019/2 mounting flange
Service Manual
Series 51 and 51-1 Motors
Operation
14 |
©
Danfoss | March 2016 11008567 | AX00000013en-US0202
