Danfoss DHP-H Installation And Service Instructions

13
VMBMA602
Left view Front view Right view
Components

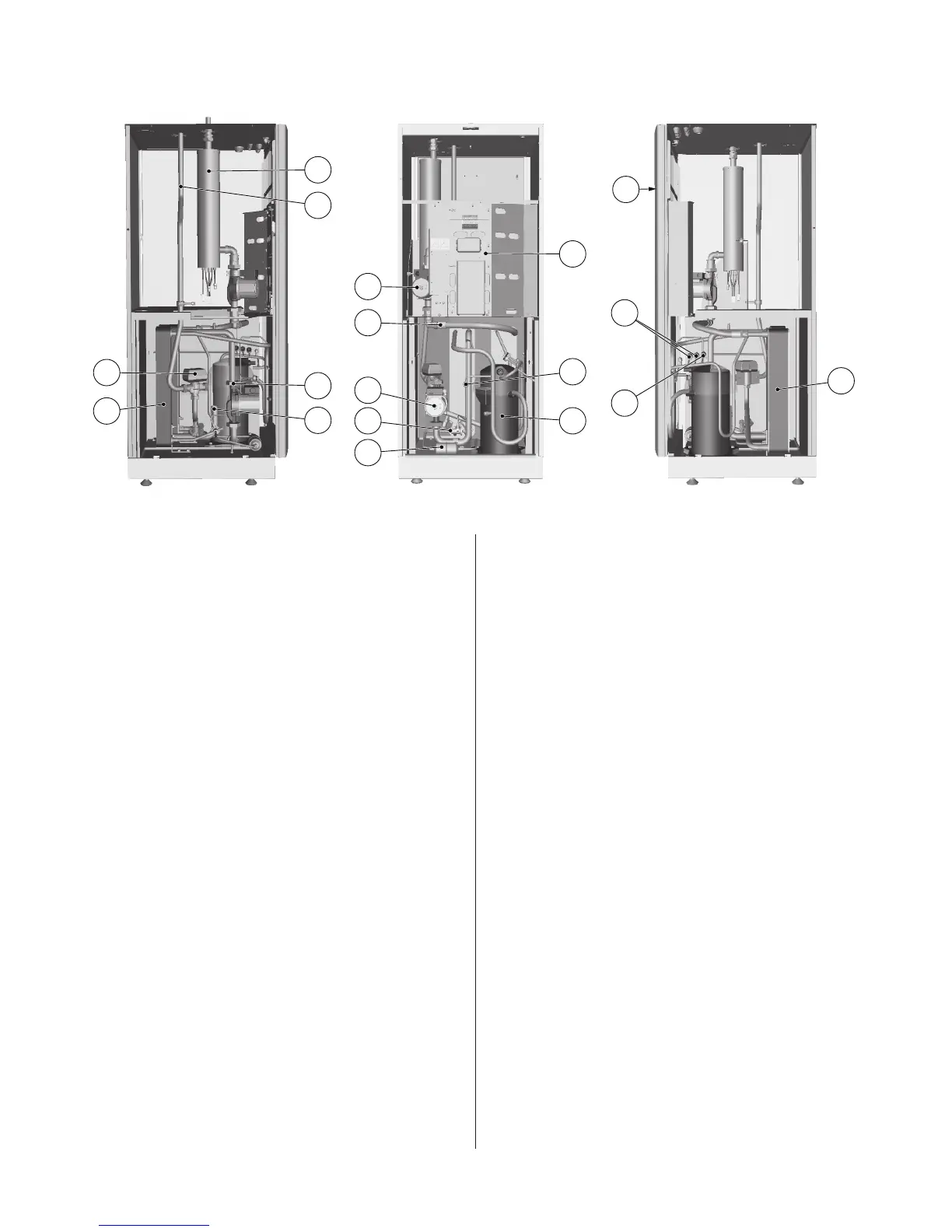

DHP-L, DHP-L Opti components.Figure 11:
Position Name
1 Auxiliary heater, immersion heater on supply line
2 Return line, heating system
3 Exchange valve
4 Evaporator, insulated
5 Heating system circulation pump
6 Supply line sensor, heating system
7 Brine out
8 Brine pump brine system
9 Drying filter
10 Expansion valve
11 Control panel for control equipment
12 Brine in
13 Electrical panel
14 Compressor
15 Low pressure pressostat
16 Operating pressostats
17 High pressure pressostat
18 Condenser with primary side drain
1
14
15
10
13
4
3
5
11
18
2
6
7
16
17
8
9
12
