2.4.5. Network Connections
The inverter is equipped with three communication interfaces: Ethernet, CAN, and RS-485.
Ethernet provides communication between the integrated web server and a computer,
either directly or via a router/switch. CAN allows communication between several DLX
inverters. RS-485 allows communication with Danfoss compatible third party products or
to Danfoss CLX products.

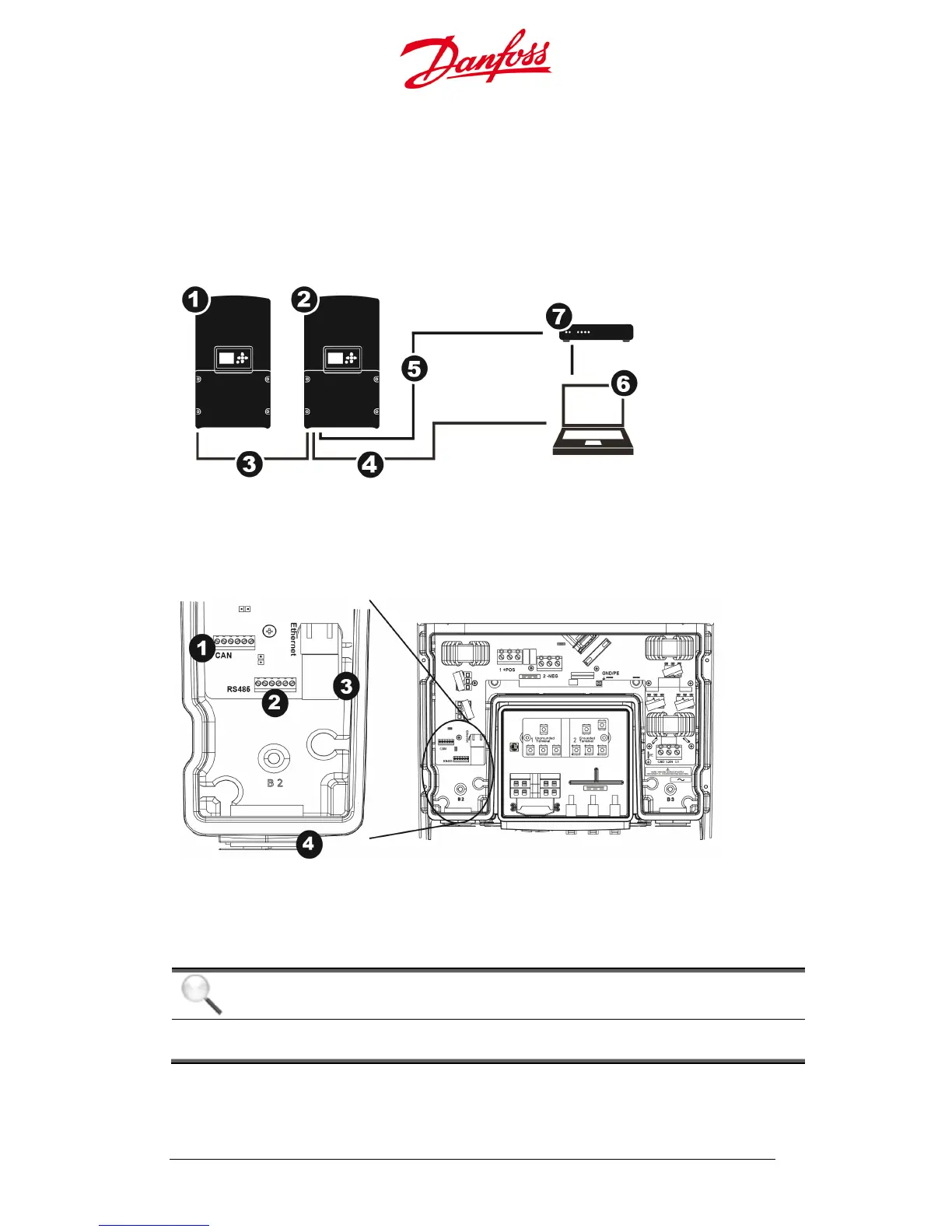

Figure 2.4.11:Connection without network
1. Follower inverter
2. Master inverter
3. CAN bus cable
4. Ethernet cable
5. RS-485 cable
6. Computer
7. Data logger
2.4.5.1. Connection Procedures
Figure 2.4.12: Connection area with network terminals
1. CAN bus terminal
2. RS-485 terminal
3. Ethernet connector
4. Network cable gland
NOTICE
If multiple inverters are connected together, all inverters must be connected to the
CAN bus before Start Up to benefit from single installation setup.
