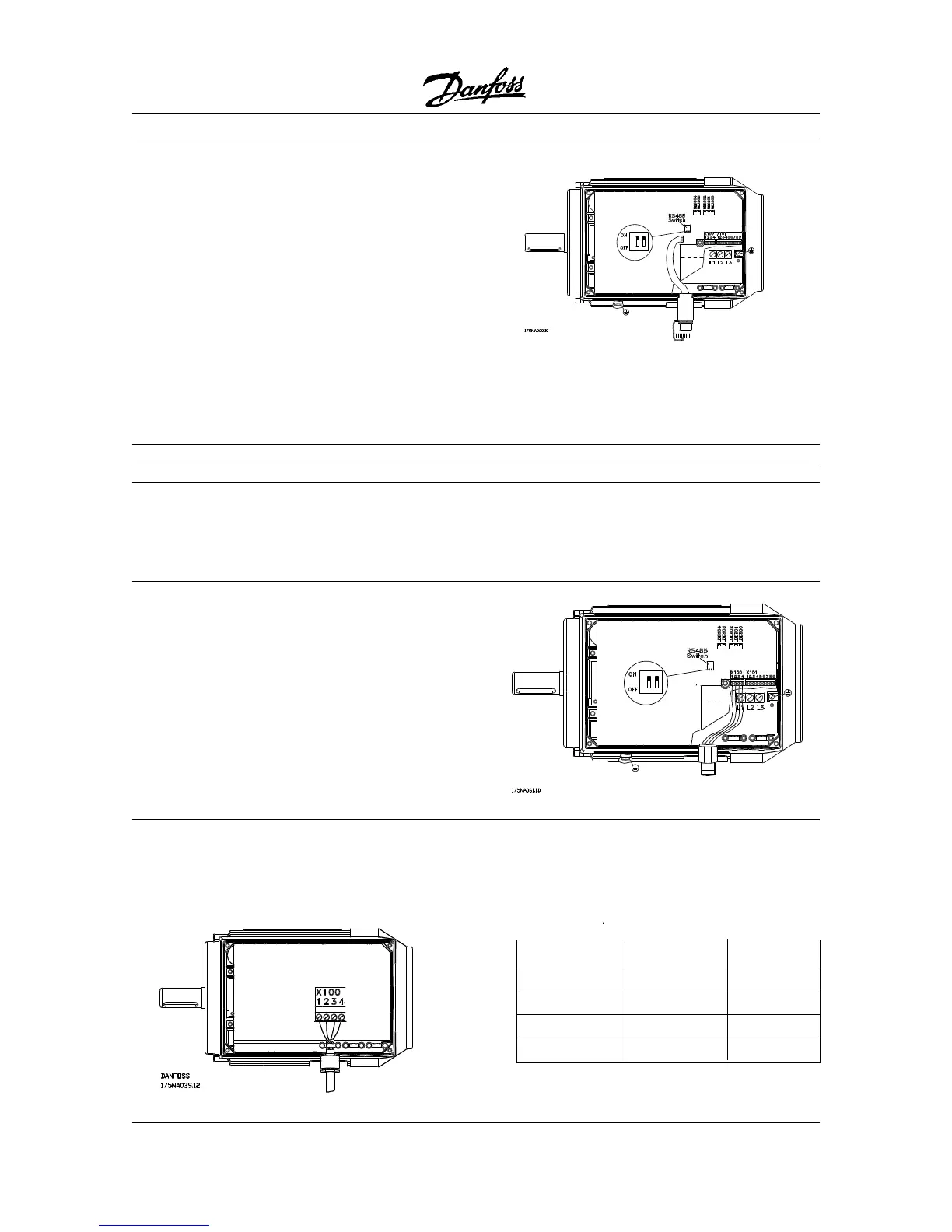

FCM 300 Series
MG.03.B6.2G - VLT is a registered Danfoss trademark
Serial Communication (continued...)
For installations that require both serial
communication and use of an LCP-2, the service
plug kit (part #176NO166) and cable (part
#175NO162) provides the necessary interface.
The LCP-2 is attached to the cable and the RS 485
bus is connected to the X100 terminal strip.
Software only: part #175ZO953
Software RS 232/485 converter and cables: part #176F1705
Connect cables from PC to X 100 terminals.
Remote mounting kit
A remote mounting kit (part #175NO160) is available to
mount the LCP-2 on a wall or in a panel.
■
■
VLT Dialog software and PC
VLT Dialog is a powerful drive software tool that allows
set-up, start-up and control of the FCM 300 and other
Danfoss units.
■
Local Control Panel (LCP-2)
The LCP-2 (part #175N0131) is used for programming
and commissioning the FCM 300 units. Use the plug
kit (part #175NO161) and cable (part #175NO162).
The plug kit wires to the X100 terminals. See "Local
Control" on page 7-5 for more information on the LCP-
2.
When serial communication and the LCP-2 are to be
used simultaneously, the service plug kit and cable
provide an alternative connection for the LCP-2. For
more information, see "Serial Communication" on this
page.
NOTE:
The LCP-2 and VLT Dialog can not be used in
conjunction with one another.
Terminal X100/
yellow
green
red
blue
1
4
3
2
D-sub pin
8
3
2
9
Color of wire/
Operation
■
7-3
