VLT
®
5000 Series
Description of choice:
Set the desired value.
323 Relay 01, output
(RELAY 1-3 FUNCT.)
Value:
See description of parameter 319.
Function:
This output activates a relay switch.
Relay switch 01 can be used for bringing status and
warnings. The relay is activated when the conditions
for the relevant data values have been fulfilled.
Activation/deactivation can be delayed in
parameter 324/325.
Description of choice:
See description of parameter 319.

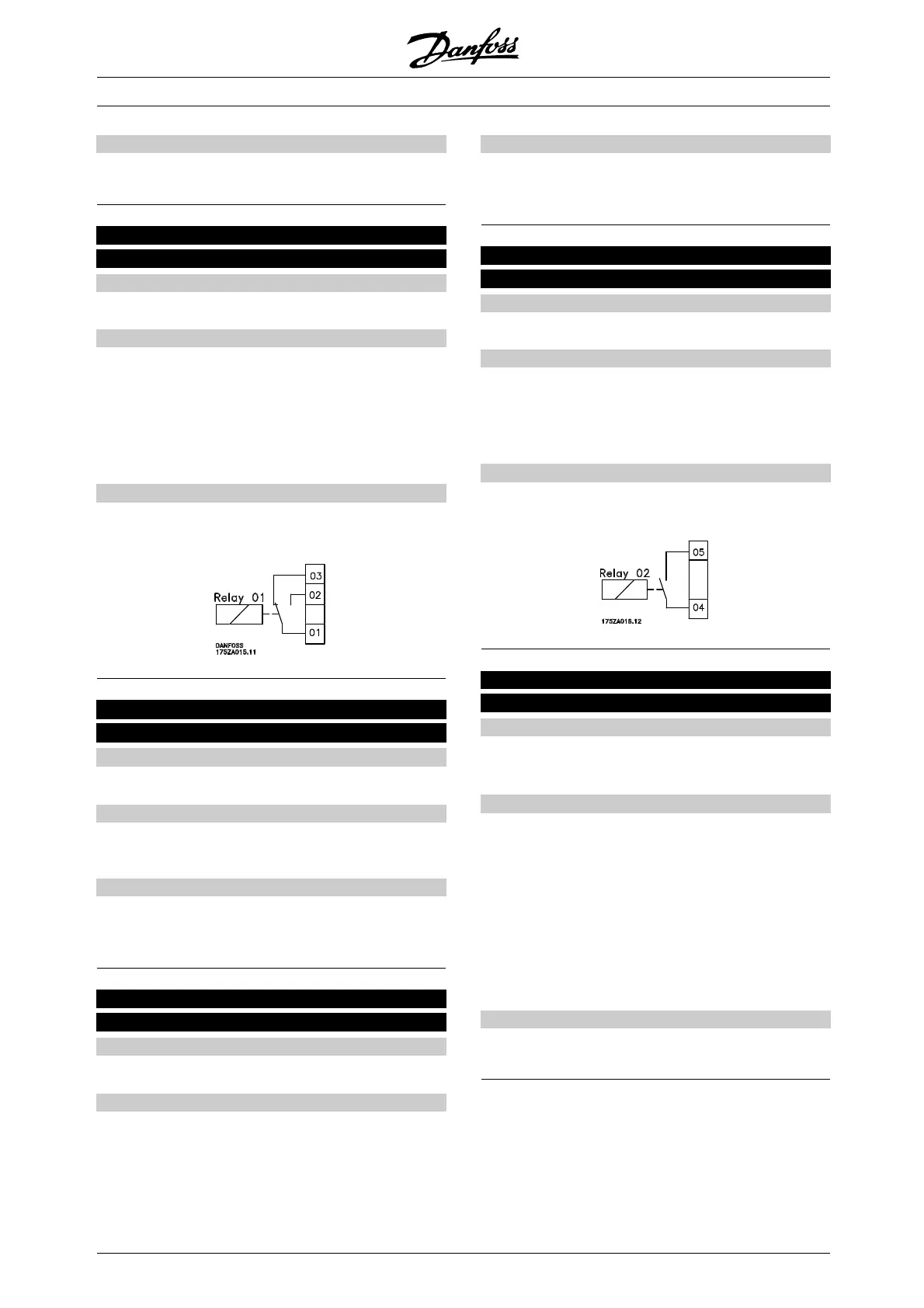

Connections - see the below drawing.
324 Relay 01, ON delay
(RELAY 1-3 ON DL)
Value:
0.00 - 600.00.
✭ 0.00 sec.
Function:
This parameter allows a delay of the cut-in time
of relay 01 (terminals 01-02).
Description of choice:
Enter the desired value (can be set at intervals
of 0.02 sec.).
325 Relay 01, OFF delay
(RELAY 1-3 OFF DL)
Value:
0.00 - 600.00
✭ 0.00 sec.
Function:
This parameter makes it possible to delay the cut-out
time of relay 01 (terminals 01-03).
Description of choice:
Enter the desired value (can be set at intervals
of 0.02 sec.).
326 Relay 04, output
(RELAY 4-5 FUNCT.)
Value:
See description of parameter 319.
Function:
This output activates a relay switch.
Relay switch 04 can be used for bringing status and
warnings. The relay is activated when the conditions
for the relevant data values have been fulfilled.
Description of choice:
See description of parameter 319.
Connections - see the below drawing.
327 Pulse reference, max. frequency
(PULSE REF MAX)
Value:
100 - 65000 Hz at terminal 29
100 - 5000 Hz at terminal 17
✭ 5000 Hz
Function:
In this parameter, the signal value is set that
corresponds to the maximum reference value set
in parameter 205. Setting of this parameter affects
an internal filter constant, i.e. at 100 Hz = 5 sec;
1kHz=0.5sec. andat10kHz=50msec. To
avoid a too long filter time constant at low pulse
resolution, the reference (parameter 205) and this
parameter can be multiplied by the same factor and
in this way use the lower reference range.
Description of choice:
Set the desired pulse reference.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.51.A9.02 - VLT is a registered Danfoss trademark
134
