Datalogic QuickScan QBT21X1 User Manual

Connecting the Base Station
Quick Reference Guide 5
3. After the cables are plugged in, reinsert the Cable Stop-
per.
4. Connect the Base Station power adapter to an AC wall
outlet.

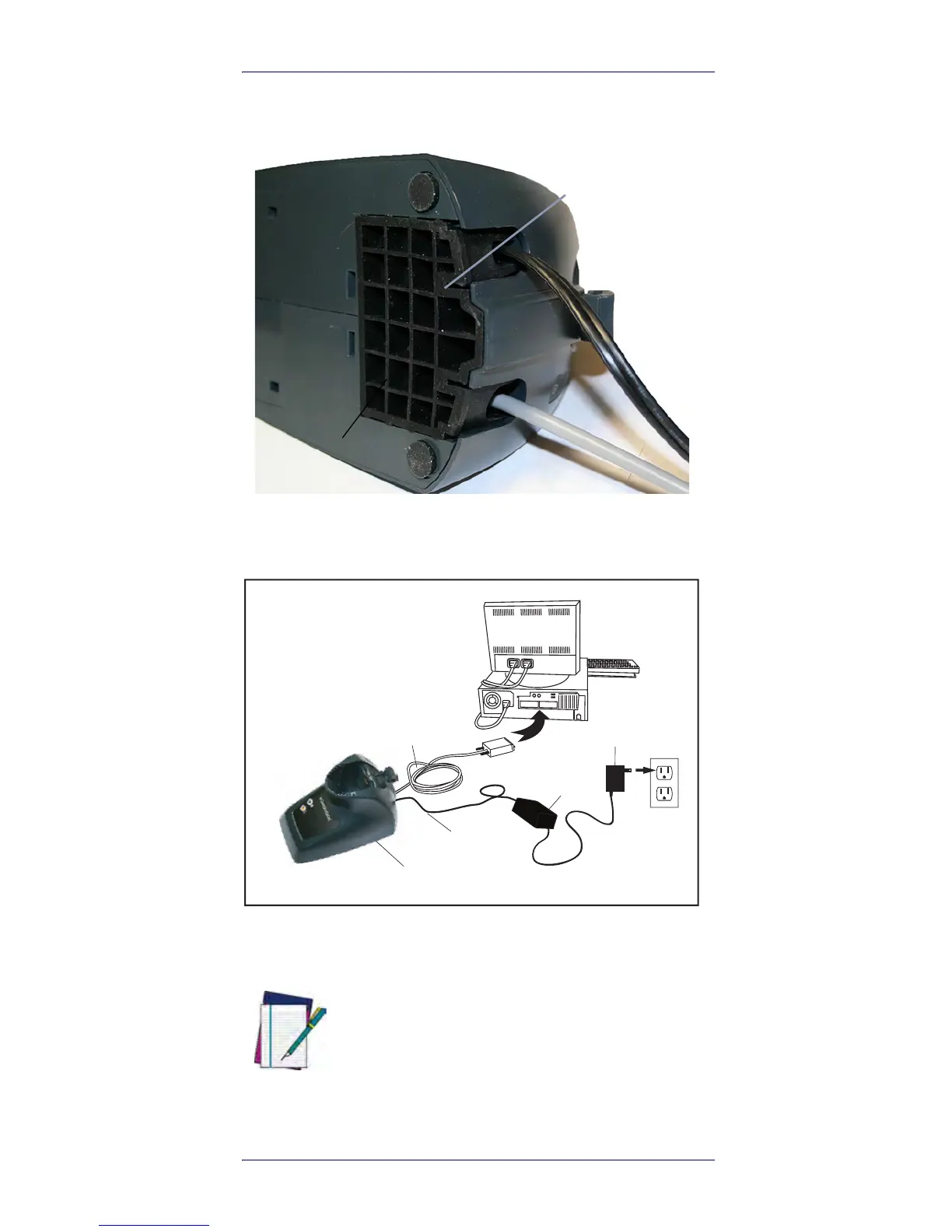

Figure 3. Connecting the Base Station
Host Connection —
Verify before connection that the reader’s
cable type is compatible with your host equipment.
NOTE
The QuickScan QBT21X1 can be set up to
require a PIN code when connecting to the host.
If you are adding new equipment to a system
that uses a custom security PIN, please see the
PRG (Product Reference Guide, available on the
Datalogic website) for more information.
Cable Stopper
reinserted
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector

Datalogic QuickScan QBT21X1 Specifications

General

Connectivity	Bluetooth
Weight	180 g
Drop Resistance	1.5 m
Print Contrast Ratio (Minimum)	20%
Radio Range (Open Air)	Up to 100 m
Type	Handheld
Scanning Technology	Laser
Interface	USB, RS232, Keyboard Wedge
Power Supply	Rechargeable Li-ion battery
Operating Temperature	0°C to 50°C
Light Source	LED
Scan Rate	100 scans/sec
Decode Capability	1D
Resolution	0.1 mm
Supported Barcodes	UPC, EAN, Code 39, Code 128, QR Code
Humidity	5% to 95% (non-condensing)
