Definitive Technology DESCEND DN8 User Manual

37
Découverte de votre caisson de graves
+
+
–
–
GAUCHE
DROITE
180
100–120V | 220–240V
CA 100-120 V -60 Hz 3.3A (MAX)
CA 220-240 V -50 Hz 1.65A (MAX)
0
A

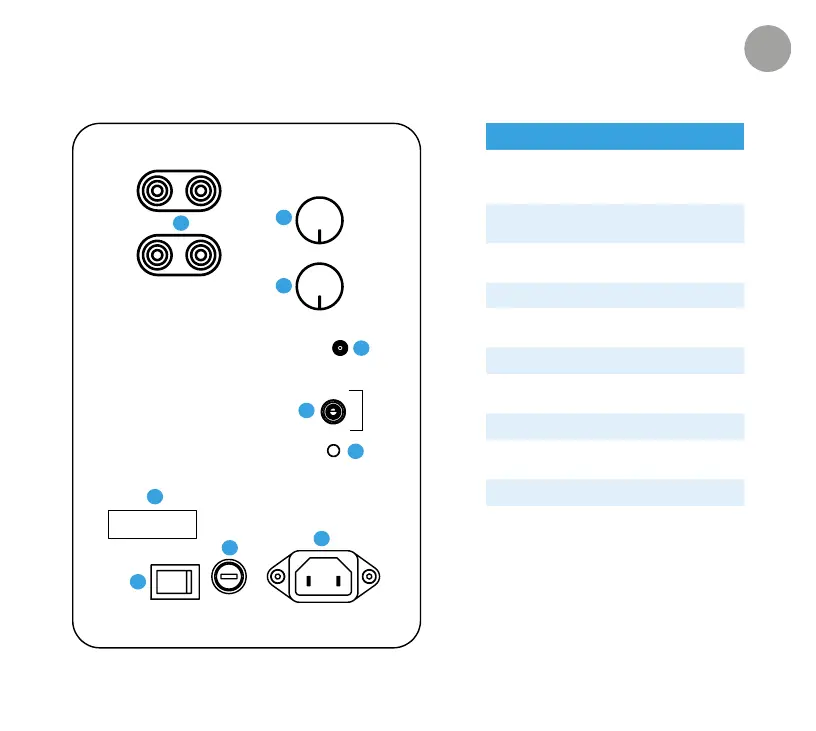

Légende
A
ENTRÉE HAUT NIVEAU GAUCHE
/ DROITE (ENTRÉE DE NIVEAU
ENCEINTE)
B
BOUTON D’AUGMENTATION /
DIMINUTION DU VOLUME
C
BOUTON D’AUGMENTATION /
DIMINUTION DU FILTRE PASSE-BAS
D ENTRÉE LFE
E
COMMUTATEUR DE PHASE
(0 = PAR DÉFAUT)
F VOYANT LED D’ÉTAT
G
SÉLECTEUR DE TENSION
D’ALIMENTATION CA
H INTERRUPTEUR MARCHE / ARRÊT
I
FUSIBLE ~100-120V T6.3AL/250V
~220-240V T4AL/250V
J ENTRÉE D’ALIMENTATION CA
B
D
E
F
G
H
I
J
C
FR

Definitive Technology DESCEND DN8 Specifications

General

Type	Powered Subwoofer
Phase Control	0-180 degrees
Low Pass Crossover	40 Hz - 150 Hz
Driver Size	8 inches
Amplifier Power	200W RMS
Inputs	LFE, Line-Level
Outputs	Speaker-level
Amplifier Power (Peak)	400 Watts

Summary

Safety Precautions

Electrical Safety Symbols and Cautions

Explains safety symbols and provides critical cautions regarding electric shock.

General Usage Safety Warnings

Safety Precautions (continued)

Power Disconnection and Mains Plug

Explains the role of the mains plug as a disconnect device and how to safely disconnect power.

Getting To Know Your Subwoofer

Component Identification and Legend

Identifies and explains the function of each control and connection on the subwoofer.

Getting Started

Initial Setup Steps

Guides on setting voltage, plugging in, initial volume, and low-pass control for first-time use.

Advanced Setup and Tuning

AC Mains (Power) Connection

Voltage Selection and Auto On/Off

Instructions for setting the correct voltage and understanding auto on/off features.

Overload Protection and LED Status

Connection and Setup

LFE Input Connection Method

Recommended setup for home theater systems using LFE input.

Speaker Level Input Connection Method

Setup for amplifiers/receivers without LFE using speaker level inputs.

Connection and Setup (continued)

Speaker Level Wiring and System Configuration

Using and Adjusting the Descend Subwoofer

Amplifier Controls and Sound Optimization

Explains how to use controls for optimal sound blending and system integration.

Subwoofer Low-Pass Filter Guide

Low-Pass Filter Settings by Speaker Type

Service

Product Servicing and Technical Assistance

Limited Warranty

Warranty Terms and Conditions
