Steps
1. Disconnect and un-route the power adapter port module from the system board.
2. Remove the power adapter port module from the system.
Installing the power adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
Steps

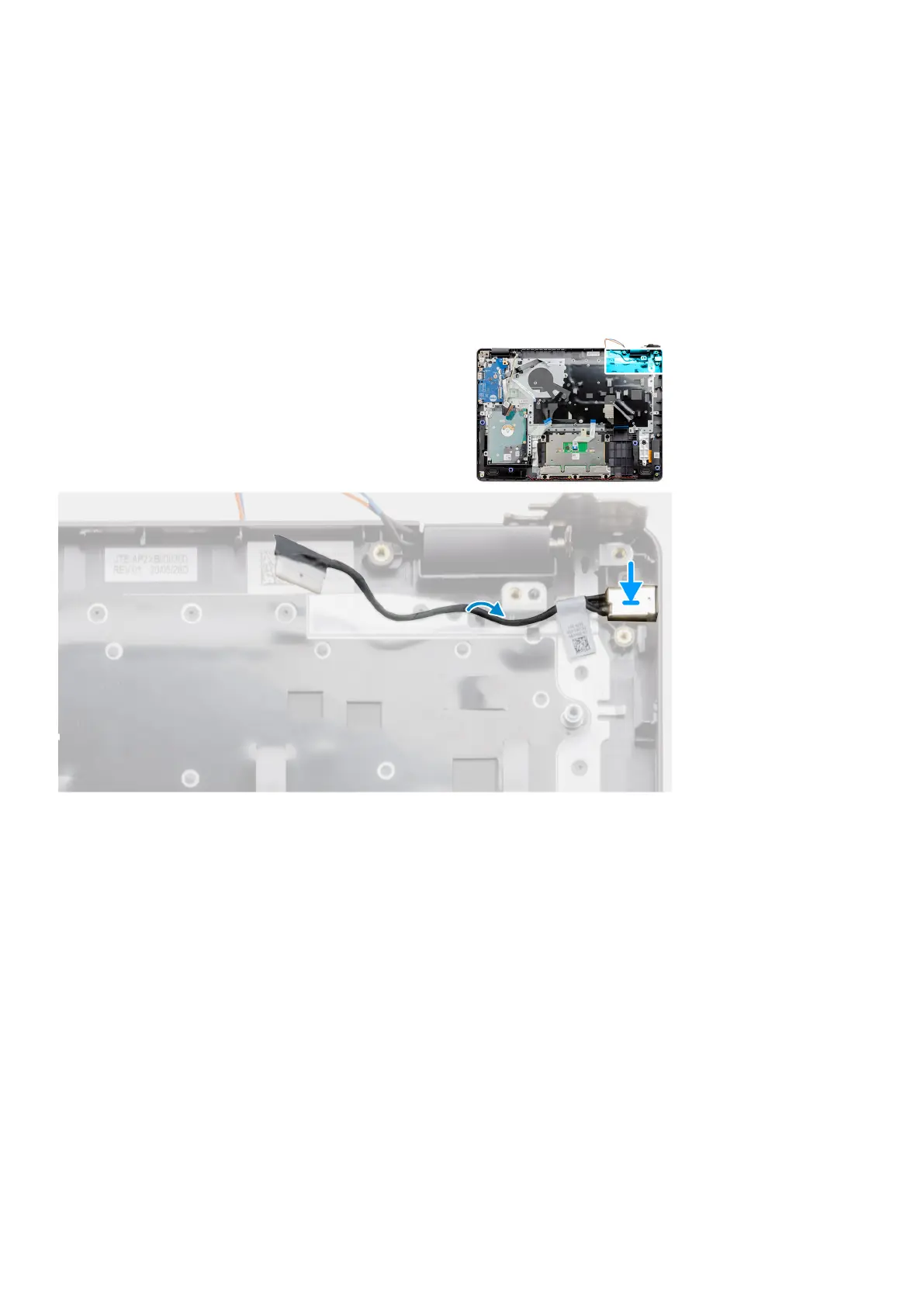

Place the power adapter port module into the slot provided on the palmrest.
Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the system fan.
4. Install the SSD.
5. Install the WLAN.
6. Connect the battery cable.
7. Install the base cover.
8. Install the SD card.
9. Follow the procedure in after working inside your computer.
Disassembly and reassembly
79
