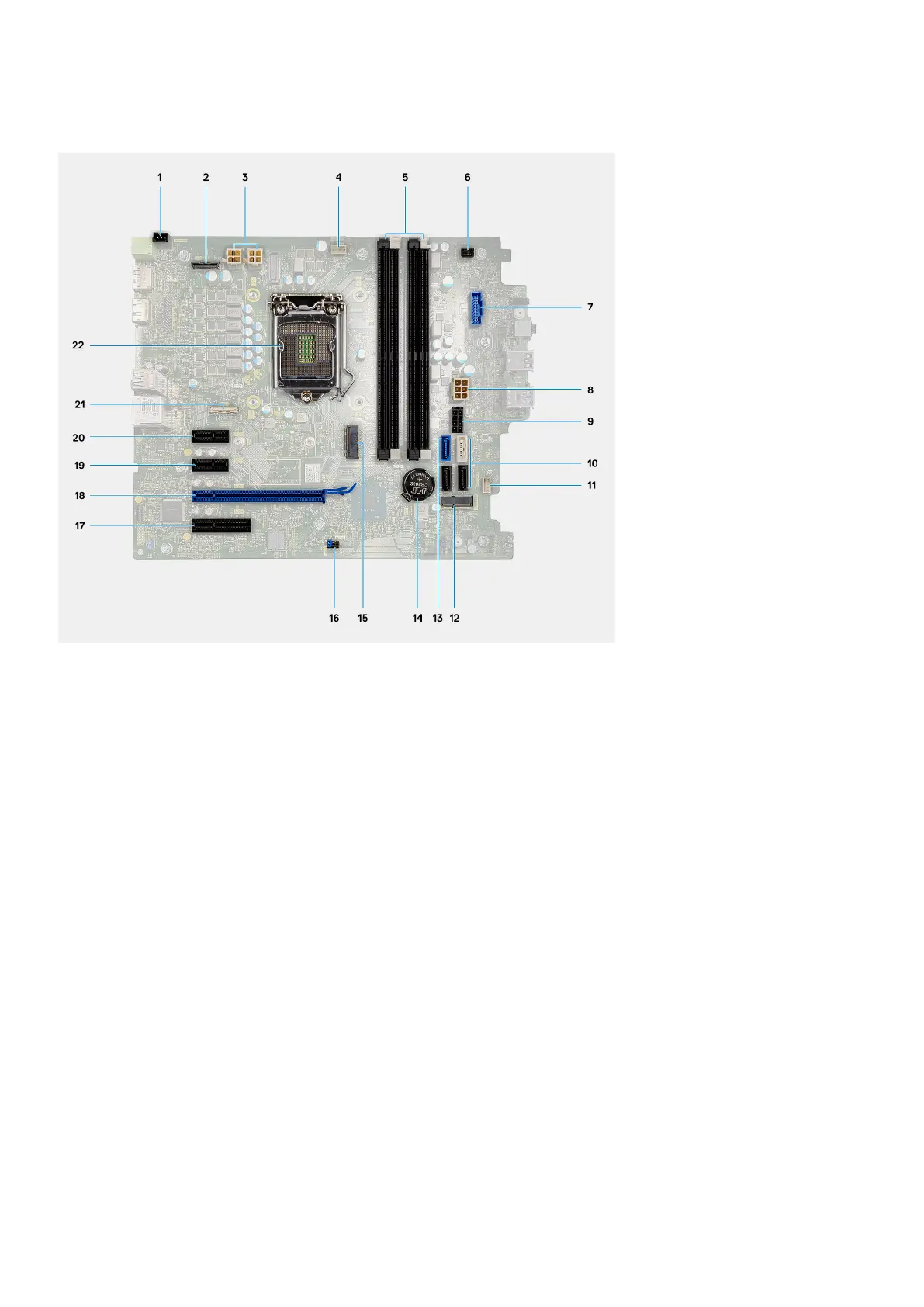

System board Layout
1.
Intrusion switch connector
2. Video connector
3. ATX CPU power connector
4. Processor fan connector
5. Memory module connector
6. Power button connector
7. SD card reader connector
8. ATX system power connector
9. SATA power cable connector
10. SATA3 and SATA1 connector
11. Intrusion speaker cable connector
12. M.2 WLAN connector
13. SATA0 and SATA2 connector
14. Coin-cell battery
15. M.2 SSD PCIe connector
16. Jumper
17. PCIe x4 (Slot4)
18. PCIe x16 (Slot3)
19. PCIe x1 (Slot2)
20. PCIe x1 (Slot1)
21. Type-C connector
22. Processor socket
12
Chassis overview
